Upgrading the Engine Oil Pan on Your 2015-2023 Audi A3
Many Audi A3 models came from the factory with a plastic oil pan that is prone to cracking and leaking; an aftermarket metal pan is a durable, popular upgrade.
- The factory-installed plastic oil pan on many 2015-2023 Audi A3s is a common failure point, prone to cracking and leaking.
- Upgrading to an aftermarket steel or cast aluminum oil pan is a highly recommended, durable solution.
- When replacing, ensure you also get new sealant and a new gasket for the oil level sensor to prevent future leaks.
- While there are no specific recalls for the oil pan, its tendency to leak is a widely documented issue among owners and mechanics.
The Plastic Problem: A Known Issue for Audi A3 Owners
If you own a 2015-2023 Audi A3 with the 1.8T or 2.0T engine, you likely have a plastic engine oil pan. While fine for a while, these plastic pans are a common failure point. Over time, heat cycles can make the plastic brittle, and the area around the drain plug can easily crack from overtightening. More often, impact from road debris or even a steep driveway can cause a crack, leading to a serious oil leak. Because of this well-known issue, many owners choose to upgrade to a more durable metal oil pan when it's time for a replacement.
Is Your Oil Pan Leaking?
The most obvious sign of a failing oil pan is a puddle of brownish or black oil 🎬 Watch: How to identify the source of your Audi's oil leak. under the front of your car. You might also get a low oil level warning on your dashboard. If you suspect a leak, it's critical to check your oil level immediately and get the vehicle inspected. Driving with low oil can cause catastrophic engine damage.
Choosing Your Aftermarket Replacement: Metal is the Answer
When replacing your A3's oil pan, you have a choice between a direct-fit plastic replacement and a metal upgrade (typically stamped steel or cast aluminum). Given the original's tendency to fail, upgrading to a metal pan is the recommended solution.
- Stamped Steel: These are a significant upgrade from plastic. They are much more resistant to cracking from impacts and will typically dent rather than shatter. They offer excellent durability for the price. 🎬 See why many owners prefer swapping to a steel oil pan.
- Cast Aluminum: Often considered the premium option, cast aluminum pans are very strong and can help with oil cooling due to the material's heat dissipation properties. Some high-performance aluminum pans even feature cooling fins and increased oil capacity.
Aftermarket Brand Options
Several brands offer reliable aftermarket oil pans for the Audi A3. Here’s a breakdown of what to expect:
- Vaico: Often considered a high-quality OEM-equivalent brand for European vehicles, Vaico parts are known for good fit and finish. They may offer both plastic and metal replacement options.

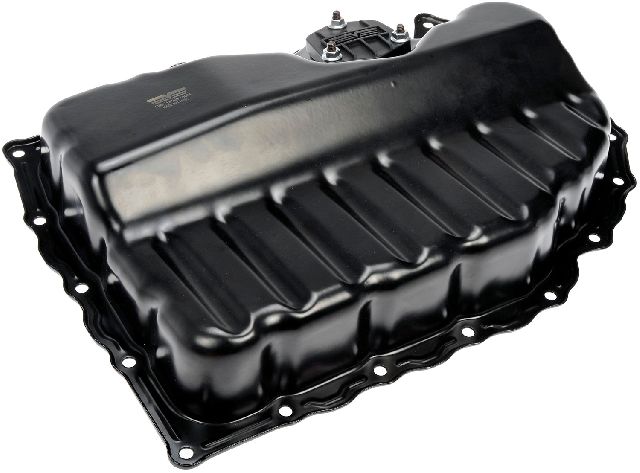

- Dorman: Dorman is well-known for its "OE FIX" line, which often improves upon the original factory design. Their steel or aluminum oil pan upgrades for the A3 are a popular choice to solve the cracking plastic pan issue permanently.
- Spectra Premium: Spectra is a large aftermarket manufacturer that produces reliable, budget-friendly replacement parts. They offer both composite (plastic) and metal pans that provide a good balance of quality and value.
Pro Tip: When ordering your new oil pan, check if it comes as a kit. A good kit will include a new drain plug, sealant, and sometimes the necessary bolts. The bolts for metal pans can sometimes be a different length than the ones for the original plastic pan, so getting a complete kit ensures you have everything for the job.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Oil Pan | $138.15 - $325.50 |
| New OEM Oil Pan (Plastic) | $250 - $450+ |
| Shop Labor for Installation | $200 - $400 |
Frequently Asked Questions (FAQ)
Is the aluminum oil pan really better than the plastic one?
Yes. An aluminum or steel oil pan is far more durable than the original plastic pan. It is much less likely to crack from road debris or during routine maintenance like oil changes. Many aluminum pans also offer improved engine oil cooling.
Do I need to buy a new oil level sensor?
Usually, no. You can typically transfer the original oil level sensor to the new pan. However, it is highly recommended to replace the sensor's O-ring or gasket during the installation to prevent leaks. Some kits will include this new seal.
Is replacing the oil pan a DIY job?
For an experienced DIY mechanic, yes. The job involves safely lifting the vehicle, draining the oil, removing the splash shield, unbolting the old pan, cleaning the engine block's mating surface, and carefully installing the new pan with sealant. It can be messy and requires torque wrenches for proper bolt tightening. For beginners, it's best left to a professional.
🎬 Watch this step-by-step 2.0T oil pan replacement walkthrough.Are there any recalls for the Audi A3 oil pan?
As of now, there are no specific safety recalls issued by the NHTSA for the engine oil pan on the 2015-2023 Audi A3. However, there are numerous Technical Service Bulletins (TSBs) related to oil leaks on various Audi models, highlighting common issues that mechanics should be aware of.
Helpful Videos
Technical Specifications
OEM Part Numbers: 06K103600R 06K103600AE 06K103600L 04L103603
The key specification difference is material. The OEM pan is often plastic (composite), while aftermarket upgrades are typically stamped steel or cast aluminum. Most pans for this vehicle are a 'wet sump' design with a center sump location and a port for the oil level sensor.
