Audi A3 Engine Camshaft Position Sensor Replacement Guide (2015-2024)
Diagnose and fix common stalling and check engine light issues on your Audi A3.
- A bad camshaft sensor is a common cause of stalling, poor performance, and a check engine light on the 2015-2024 Audi A3.
- The most common fault codes are P0340 and P0341.
- Replacement is very easy for a DIYer, requiring minimal tools and time.
- For best results, choose a high-quality aftermarket brand like Hitachi, Delphi, or Standard Ignition, as Audi engines can be sensitive to sensor quality.
Is Your Audi A3 Stalling or Running Rough?
If your 2015-2024 Audi A3 has started stalling at stoplights, hesitating when you accelerate, or showing a Check Engine Light, a failing camshaft position sensor could be the culprit. This is a common failure point that can cause a surprising number of drivability problems. Fortunately, it's also one of the easier and more affordable repairs you can perform on your own.
Symptoms of a Bad Camshaft Position Sensor
A bad cam sensor sends incorrect information to your engine's computer, leading to a variety of noticeable symptoms. You might experience one or several of the following:
- Check Engine Light: This is the most common sign. A scan will typically show codes like P0340 or P0341.
- Engine Stalling: The engine may shut off unexpectedly, especially at low speeds or when idling.
- Hard Starting: The car may crank for a long time before the engine starts, or it may not start at all.
- Rough Idle: The engine may shake or run unevenly when the car is stopped.
- Poor Acceleration: You may notice a significant loss of power, hesitation, or sputtering when you press the gas pedal.
- Reduced Fuel Economy: Because the engine isn't running efficiently, you may see a drop in your gas mileage. 🎬 Watch: 11 symptoms of a bad sensor and how to test it.
Don't Ignore the Signs
While you can sometimes drive with a failing sensor, it's not recommended. The stalling can be dangerous, and running the engine with incorrect timing for too long could lead to more serious problems.
Choosing the Right Aftermarket Sensor
When it comes to electronic sensors for a German vehicle like your Audi, quality matters. While many budget-friendly options exist, using a low-quality sensor can lead to immediate performance issues or premature failure. We've grouped the available brands into tiers based on their reputation for quality and reliability among mechanics and Audi owners.
Tier 1: OEM-Equivalent Brands
These brands are known for manufacturing parts that meet or exceed original equipment (OE) specifications. For a critical sensor, these are your most reliable choices.
- Hitachi: Often an original equipment manufacturer for many car brands, Hitachi sensors are widely regarded as a top-tier choice for reliability and performance.
- Delphi: A well-respected brand in the automotive world, known for high-quality electronic components.
- Standard Ignition (SMP): A long-standing brand with a reputation for producing dependable aftermarket parts.
Tier 2: Reputable Aftermarket Brands
These brands offer a good balance of quality and price. They are a solid choice if a Tier 1 brand is not available or is outside your budget.
- Bremi: A German brand that specializes in ignition and sensor technology.
- Vemo: Another German brand offering a wide range of OE-quality replacement parts.
- Walker Products: A US-based company that has been producing engine management components for decades.
Tier 3: Economy Brands
These brands provide a functional part at a very low cost. However, for a sensitive engine like the A3's, there is a higher risk of compatibility or longevity issues.
- Facet
- Global Parts
Pro Tip: Check for Related Issues
Sometimes, a camshaft position sensor code (like P0341) doesn't mean the sensor itself is bad. It can be triggered by a stretched timing chain, a faulty camshaft adjuster magnet, or wiring issues. If you replace the sensor and the problem persists, these are the next areas to investigate.
🎬 See how to diagnose and repair a P0340 correlation fault.Cost of Replacing the Audi A3 Camshaft Position Sensor
This is a relatively inexpensive repair, especially if you do it yourself. The sensor itself is easy to access on most A3 engines.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Sensor | $30.79 - $126.99 |
| New OEM Sensor | $85 - $125 |
| Shop Labor | $75 - $150 |
| DIY Total Cost | $30.79 - $126.99 |
| Shop Total Cost | $105 - $277 |
Frequently Asked Questions
Where is the camshaft position sensor located on my Audi A3?
On the common 2.0T and 1.8T engines used in the 2015-2024 A3, there are typically two camshaft position sensors. The exhaust camshaft sensor is the most common one to fail and is very easy to access. It is located on the top of the engine, right next to the oil filler cap, held in by a single screw.
Is this a difficult repair to do myself?
No, this is one of the easiest repairs you can do. It requires only a basic tool (a T30 Torx driver) and takes less than 15 minutes. You simply remove the engine cover, unplug the electrical connector, undo one screw, and swap the old sensor for the new one.
🎬 Watch this quick walkthrough of the Audi A3 sensor replacement.Do I need to replace both sensors at the same time?
No, it is not necessary. The sensors operate independently. You only need to replace the one that has failed. Your OBD-II scanner code should specify which sensor or circuit is having a problem (e.g., Bank 1).
What is the difference between a P0340 and P0341 code?
A P0340 code generally indicates a complete loss of signal or a circuit malfunction, like a broken wire or a dead sensor. A P0341 code means the sensor's signal is intermittent, erratic, or out of the expected range, which could be a failing sensor or a mechanical timing issue.
Do I need to disconnect the battery to change the sensor?
While the job is quick, it is always best practice to disconnect the negative battery terminal before working on any electrical component of your vehicle to prevent accidental short circuits.
Helpful Videos
Technical Specifications
OEM Part Numbers: 06C905163B 07L905163C 04C907601K 04C907601 04C907601B 04C907601L

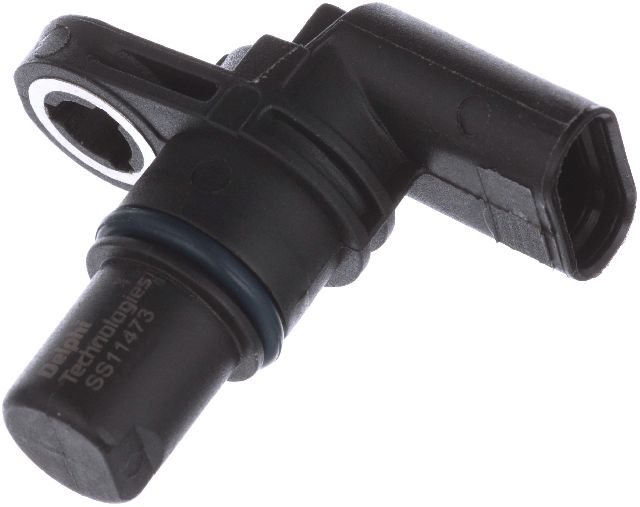

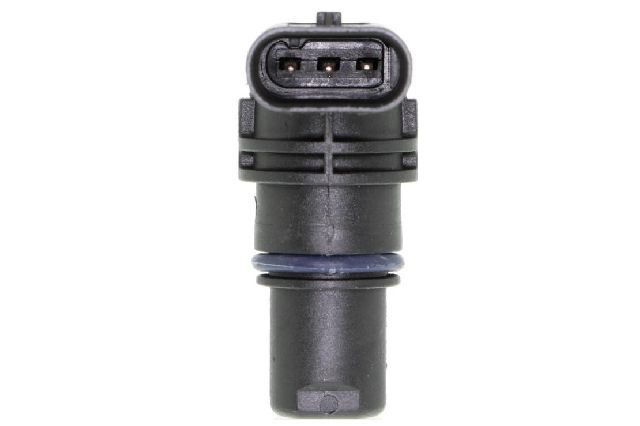

This is a Hall effect sensor that reads the camshaft's position. It is typically secured by a single T30 Torx bolt and uses a 3-pin electrical connector.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
