Ford Transit-350 Engine Oil Pressure Switch: A 2015-2024 Guide
That flickering oil light on your Transit's dash might be an easy fix—here's what you need to know.
- A flickering oil light at hot idle is the number one symptom of a bad switch on a Ford Transit.
- Always confirm real engine oil pressure with a mechanical gauge before assuming the switch is the only problem.
- The switch is located on the driver's side of the engine near the oil filter, but access can be tight.
- Driving with the oil pressure light on is a gamble that can lead to complete engine failure.
Is Your Ford Transit's Oil Light Lying to You?
Seeing the red oil pressure light can be alarming, but it doesn't always mean your engine is in immediate danger. On the Ford Transit, especially those with the 3.5L and 3.7L engines, a faulty oil pressure switch is a common issue that can trigger a false warning. These switches can fail internally, causing them to send an incorrect signal. They can also develop leaks, which is a clear sign the part needs to be replaced.
Symptoms of a Failing Oil Pressure Switch
A bad oil pressure switch can mimic the signs of serious engine trouble. It's important to know what to look for so you can diagnose the problem correctly.
🎬 Watch: How to diagnose a flickering oil light at idle- Flickering Oil Light at Idle: The most common symptom is the oil pressure light flickering or turning on when the engine is warm and idling, then turning off when you accelerate.
- Oil Warning Light Stays On: The light may come on and stay on, even if the engine oil level is correct.
- Visible Oil Leaks: The switch itself can leak oil. You may see oil on the sensor, its connector, or dripping down the side of the oil filter housing.
- Check Engine Light: A fault in the switch's electrical circuit can trigger the check engine light and store a diagnostic trouble code like P0520.
Stop Driving Immediately
You cannot be certain if the warning is from a bad switch or from actual low oil pressure, which can destroy your engine in minutes. Do not drive the vehicle until a mechanical oil pressure test has been performed to confirm the engine is healthy.
Choosing the Right Aftermarket Switch
You don't need to buy an expensive OEM part for this repair. Quality aftermarket switches provide reliable performance for a fraction of the price. However, not all brands are created equal. Here’s a breakdown of what to consider:
- Premium Aftermarket (e.g., Standard Ignition / SMP): Brands like Standard Motor Products have a long history in the aftermarket. They often publicize their quality control, use of durable materials like high-temperature diaphragms, and 100% testing procedures. For a critical sensor like this, spending a few extra dollars for a trusted name is a smart investment.
- General & Economy Brands (e.g., True Tech, Global Parts): These brands offer the lowest prices. While they can provide a functional replacement, there is less public information available about their manufacturing and testing standards. They can be a good choice for a budget-conscious repair, but be aware that the long-term durability may not match that of a premium brand.
Cost of Replacing the Engine Oil Pressure Switch
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Part | $8 - $32 |
| New OEM Part | $25 - $40 |
| Shop Labor | $50 - $140 |
| Total Professional Repair | $58 - $180 |
Pro Tip: Check for Leaks First
Before buying a new switch, inspect the old one. If you see oil seeping from the plastic connector part of the switch, you have found your problem. The internal diaphragm has failed, and the switch must be replaced.
Frequently Asked Questions (FAQ)
Where is the oil pressure switch on a 2015-2024 Ford Transit-350?
The engine oil pressure switch is screwed into the oil cooler and filter housing assembly. You can find it on the lower-left (driver's) side of the engine, near the oil filter.
🎬 See this walkthrough for locating and changing the sensorCan I replace the Transit oil pressure switch myself?
Yes, this is a DIY-feasible job for someone with basic tools and mechanical experience. However, access is tight. On some models, especially with the 3.5L EcoBoost engine, you may need to remove the driver's side headlight assembly or the charge air cooler pipes to get enough room to work.
🎬 Watch: Step-by-step oil pressure switch replacement on a 3.5L EcoBoostAre there any recalls for the oil pressure switch on the Ford Transit?
No, as of early 2026, there are no specific NHTSA recalls or Technical Service Bulletins (TSBs) for a faulty engine oil pressure switch on the 2015-2024 Ford Transit lineup. However, the issue is widely discussed among owners in forums and repair videos.
What happens if I ignore a flickering oil light?
Ignoring the light is a major risk. If the light is on because of a bad switch, nothing will happen immediately. But if the light is on because of true low oil pressure, you risk catastrophic engine failure, which can cost thousands of dollars to repair or replace. Always investigate the cause immediately.
Helpful Videos
Technical Specifications
OEM Part Numbers: HC3Z-9278-A

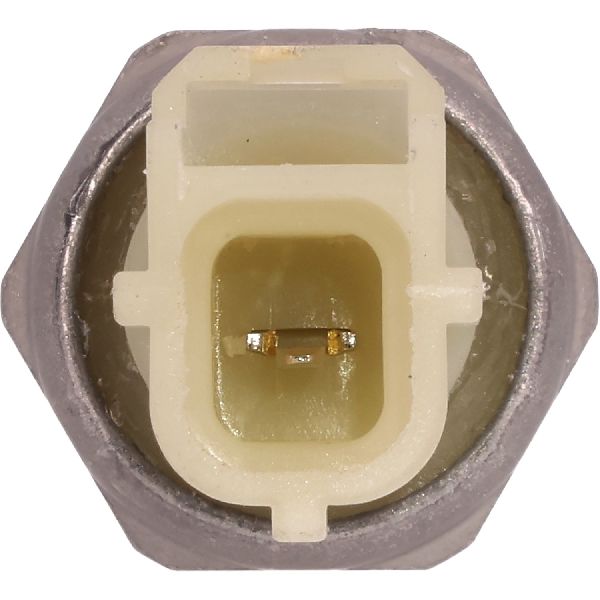

Connector: 1-Pin Blade. Thread: Tapered.
