Chrysler Pacifica Windshield Washer Pump Guide for 2016-2021 Models
Is your washer fluid not spraying? Here’s what you need to know about fixing the washer pump on your Pacifica.
- A silent pump motor usually means the pump has failed; a whirring sound with no fluid often points to clogs or disconnected hoses.
- The washer pump is located on the passenger side and can be accessed by removing the wheel well liner.
- Before replacing the pump, check for disconnected hoses under the hood's insulation blanket, a common issue on the Pacifica.
- A quality aftermarket pump from a brand like Trico is a reliable alternative to the OEM part for this repair.
Is Your Pacifica's Windshield Washer Pump Failing?
A clear windshield is critical for safe driving. When you pull the lever and nothing but a dry wiper blade scrapes across your glass, a faulty washer pump is a likely suspect. For Chrysler Pacifica owners, this is a common issue that can stem from several sources, but often points back to the pump itself.
Symptoms of a Bad Washer Pump
Before you buy a new part, make sure the pump is really the problem. Here’s what to look for:
- Silence is Golden (But Not Here): When you activate the washers, you should hear a faint whirring or humming sound from the front passenger side of the van. If you hear nothing, the pump is likely dead or not receiving power.
- Motor Whirs, No Fluid Sprays: If you can hear the pump running but no fluid comes out, the problem might not be the pump itself. This often points to a disconnected hose, clogged nozzles, or a leak in the system. Pacifica models are known for hoses that can pop off under the hood insulation. 🎬 Watch: How to fix common Pacifica washer hose and nozzle issues
- Front Works, Back Doesn't (or Vice Versa): Since a single pump handles both windshields by reversing polarity, a failure that affects only one direction could still be the pump. However, it's also very common for the issue to be a blockage or disconnected line specific to the non-working side.
Check This First!
Before blaming the pump, check for simple fixes. Ensure your washer fluid reservoir is full. Then, open the hood and have someone activate the washers. Look and listen for fluid leaking or spraying from under the black insulation blanket attached to the hood. A disconnected hose at a T-connector is a very common issue.
Choosing a New Aftermarket Washer Pump
When replacing the washer pump on your Pacifica, you have the choice between an original equipment manufacturer (OEM) part from Mopar or an aftermarket part from a brand like Trico.
- OEM Mopar: This is the exact part your vehicle was built with. For this specific part, the OEM price can sometimes be surprisingly affordable.

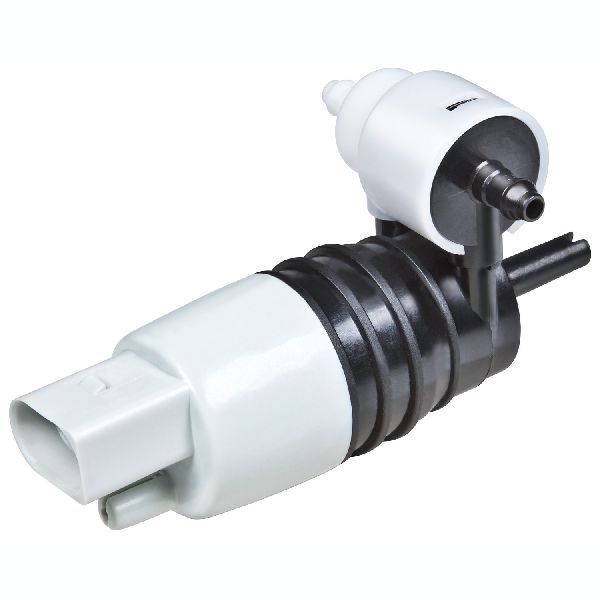

- Aftermarket (Trico): Aftermarket brands like Trico specialize in producing parts that meet or exceed OEM specifications. Trico has been a leader in visibility products since 1917 and makes pumps designed for a direct, easy installation. For a simple part like a washer pump, a quality aftermarket brand is a reliable and cost-effective choice.
Pro Tip: While you're replacing the pump, it's a good idea to also replace the small rubber grommet that seals the pump to the reservoir. This part is inexpensive and ensures you won't have a leak after the repair.
Cost of Replacing a Pacifica Windshield Washer Pump
The cost can vary depending on the parts you choose and whether you do the job yourself. The replacement is manageable for a DIYer with basic tools.
🎬 Watch: A general guide on how to replace a washer pump| Part/Service | Estimated Cost |
|---|---|
| New OEM Mopar Pump | $14 - $25 |
| New Aftermarket Pump (Trico) | $35 - $60 |
| Shop Labor | $95 - $180 |
| DIY Total (Aftermarket) | $35 - $60 |
| Shop Total (Aftermarket) | $130 - $240 |
Prices are estimates and can vary based on location and supplier.
Frequently Asked Questions
Can I replace the washer pump myself?
Yes, this is a DIY-friendly repair. The washer pump is located on the fluid reservoir, behind the bumper cover on the passenger side. You will need to remove the front passenger wheel and peel back the plastic wheel well liner to access it. Some guides suggest removing the whole front bumper for easier access, but it is possible to do the job just by going through the wheel well.
🎬 See this walkthrough for replacing the pump through the wheel wellI hear the pump motor, but no fluid sprays out. Is the pump bad?
Not necessarily. If you hear the motor, the pump has power and is trying to work. The problem is more likely a blockage. Check for clogged spray nozzles on the hood, or a disconnected/cracked hose. The hoses can sometimes disconnect under the hood's insulation blanket.
Where is the fuse for the windshield washer pump?
Many owners have had trouble locating a specific fuse labeled for the washer pump. The pump's power is often integrated with another system controlled by the Body Control Module (BCM). If you suspect a power issue and have confirmed the pump itself is good, you may need to consult a professional mechanic to diagnose the electrical circuit.
Are there any recalls for the 2016-2021 Pacifica washer pump?
No. As of early 2026, there are no active recalls or specific Technical Service Bulletins (TSBs) from Chrysler for windshield washer pump failure on the 2016-2021 Pacifica.
Helpful Videos
Technical Specifications
OEM Part Numbers: 68260479AC
Dual-direction pump for front and rear wash functions.
