Engine Timing Chain Guide for the 2016-2022 Chevrolet Malibu: A Mechanic's Overview
Hearing a rattle from your Malibu's engine? It could be a sign of a failing timing chain guide.
- A rattling noise on startup is the number one warning sign of a timing chain problem.
- This issue is most common on the 1.5L Turbo engine; regular oil changes are critical for prevention.
- The cost of the guide is minimal, but the labor to replace it is very high, often exceeding $1,500.
- Always replace the entire timing set (chain, guides, tensioner) at the same time, not just the one failed part.
Is Your Malibu's Timing Chain Guide Failing?
For owners of the 2016-2022 Chevrolet Malibu, especially those with the 1.5L turbo engine, issues with the timing system are a known concern. While the timing chain is built to last, the guides can wear out or break. A common issue is the timing chain stretching over time, which puts extra stress on the guides and tensioner. If a guide fails, the chain can become loose, leading to serious engine problems.
Common Symptoms of a Bad Timing Chain Guide
- Engine Rattle on Startup: 🎬 Hear what a failing Malibu timing chain sounds like The most common sign is a rattling or clattering noise coming from the engine for a few seconds after a cold start. This happens because oil pressure hasn't built up yet to help the tensioner tighten the chain.
- Check Engine Light: If the chain has skipped a tooth or the timing is off, your car's computer will detect it. This often triggers trouble codes like P0016 or P0017, which point to a problem with the crankshaft and camshaft position correlation. 🎬 See how to diagnose P0014 and P0017 timing codes
- Poor Engine Performance: You might notice your car running rough, misfiring, hesitating during acceleration, or losing power. This is because the engine's timing is no longer precise.
- Metal Shavings in Oil: In severe cases, pieces of a broken plastic guide or metal from the chain can end up in your engine oil. This is a sign of significant damage.
Known Issues and Bulletins
While there are no official recalls for the timing chain guides on the 2016-2022 Malibu, GM has issued a Technical Service Bulletin (TSB) #PIP5803 regarding a potentially loose timing chain guide upper bolt. Additionally, a customer satisfaction program (N182195660) was issued for 2016-2017 models with the 1.5L engine for a pre-ignition issue that could lead to piston damage, a repair that involves accessing the front of the engine. These documents show that issues in this area of the engine are recognized.
Choosing the Right Aftermarket Part: OEM vs. Cloyes
When it's time for a replacement, you'll have to choose between Original Equipment Manufacturer (OEM) parts and aftermarket options like Cloyes. The timing chain guide itself is not an expensive part, but the labor to replace it is.
- OEM GM Parts: These are the exact parts your car was built with. They offer a guaranteed fit and are a safe bet for quality. For a critical component like this, you can't go wrong with OEM.
- Cloyes Aftermarket Parts: Cloyes is a very well-known American brand that specializes in timing components and has been around for a long time. Many professional mechanics trust their parts and consider them to be of equal quality to OEM. However, some online forums contain reports from mechanics who have seen failures with aftermarket chains, suggesting it's sometimes safer to stick with OEM for critical jobs. Given the high labor cost, saving a few dollars on the part may not be worth the risk if you are not getting a quality component.
Pro Tip: Replace the Whole System
Because replacing a timing chain guide requires a lot of labor, it is highly recommended to replace the entire timing system 🎬 Watch: Full 1.5L timing chain replacement walkthrough at the same time. This includes the timing chain itself, the tensioner, all the guides, and sometimes the sprockets and VVT actuators. The parts are a small fraction of the total job cost, and replacing everything ensures you won't have to pay for the same expensive labor again in the near future.
How Much Does a Timing Chain Guide Replacement Cost?
The guide itself is inexpensive. The real cost is the labor. The front of the engine must be taken apart to access the timing components. This is a complex job that can take a full day or more.
| Part/Service | Estimated Cost |
|---|---|
| New OEM Timing Guide | $13 - $25 |
| New Aftermarket Timing Guide (Cloyes) | $17 - $25 |
| Shop Labor for Timing System Replacement | $1,220 - $1,790 |
| Total Estimated Job Cost (Parts & Labor) | $1,500 - $2,100+ |
Frequently Asked Questions (FAQ)
Can I drive my Malibu with a bad timing chain guide?
No. It is not recommended. A rattling timing chain is a serious warning. If the guide breaks completely, the chain could skip time or break, causing the pistons to hit the valves. This results in catastrophic and very expensive engine damage. If you suspect a timing chain issue, you should stop driving the vehicle and have it inspected by a professional mechanic immediately.
How can I prevent timing chain problems?
The best way to prevent premature wear is with regular oil changes using the correct type of oil. Low or dirty oil can cause the hydraulic tensioner to fail and accelerates wear on the chain and guides. Always check your oil level and follow the manufacturer's recommended service schedule.
Is Cloyes a good brand for my Malibu's timing parts?
Cloyes is a reputable aftermarket manufacturer with a long history of making quality timing components. Many technicians consider their products a reliable alternative to OEM parts. For a complete timing job, a full Cloyes kit can be a good value.
Should I replace just the broken guide?
No. The labor to access the timing components is the biggest expense. If one guide has failed, the chain has likely stretched and the other components are also worn. It is standard practice to replace the chain, tensioner, and all guides at the same time to avoid having to do the job again.
Helpful Videos
Technical Specifications

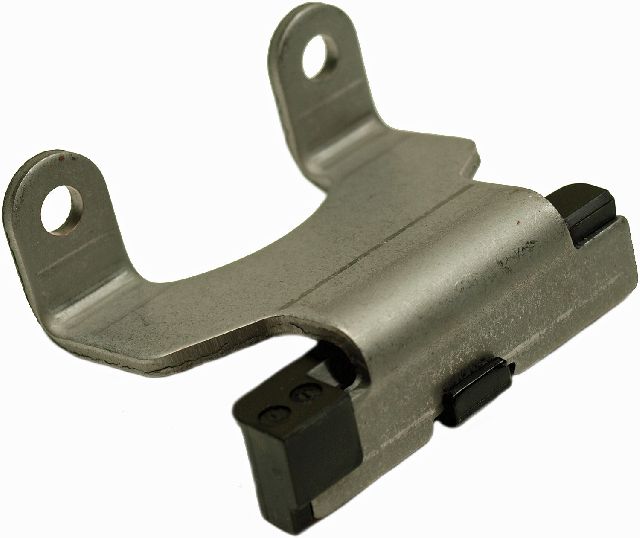

OEM Part Numbers: 12656077 12636526 12669182
Fits 2016, 2017, 2018, 2019, 2020, 2021, and 2022 Chevrolet Malibu models, primarily with the 1.5L LFV and 2.0L LTG engines.
