A Practical Guide to the 2016-2022 Hyundai Tucson Windshield Washer Pump
Is your Tucson's windshield washer not spraying? Here’s what you need to know before you buy a new pump.
- If you hear the pump motor running but get no spray, the problem is likely a clog, not a failed pump.
- Replacement is a simple DIY task that can be done in under an hour with basic tools.
- An aftermarket pump from a brand like Trico is a cost-effective and reliable alternative to an expensive OEM part.
- There are no recalls on the pump, but check for broken washer fluid hoses in the wheel well while you're working.
Is Your Windshield Washer Pump Failing?
When a washer pump on a 2016-2022 Tucson fails, the signs are usually obvious. Understanding them can help you confirm the pump is the problem before you spend money on a new part.
- You hear nothing: The most common sign of a dead pump is silence. When you activate the washer, you should hear a distinct buzzing sound from the front passenger-side of the vehicle. If you hear nothing and the fuse is good, the pump motor has likely failed.
- You hear the pump, but nothing sprays: If you can hear the pump running, the motor is working. This means your problem is likely a clog somewhere else in the system. Common culprits are the small filter on the pump itself getting blocked with grime, or the washer nozzles on the hood being clogged. In some cases, the washer fluid hoses can become disconnected or break.
- Fluid leaks under the car: If you notice a puddle of washer fluid under the front passenger-side wheel well, the pump's housing may have cracked or the grommet that seals it to the reservoir has failed.
Pro Tip: Check for Clogs First
Before replacing the pump, check for simple fixes. Use a small pin to clear the openings on the washer nozzles on the hood. If that doesn't work, the issue could be a clogged filter at the base of the pump, which is a common problem. This requires removing the pump to clean the filter screen.
Choosing Your Aftermarket Replacement Pump
For the 2016-2022 Tucson, you don't need to buy an expensive Original Equipment (OEM) pump from the dealer. A quality aftermarket pump is a reliable and budget-friendly choice for this repair.
- OEM Parts: These are the exact same parts Hyundai installed at the factory. They are a guaranteed fit but come at a much higher price.
- Aftermarket Parts (Trico): Brands like Trico specialize in direct-fit replacement parts. Their pumps are designed to match the original's specifications, including the electrical connector and hose ports, making installation straightforward. For a simple component like a washer pump, a reputable aftermarket brand provides excellent value without sacrificing performance.
Cost of Replacing a Tucson Washer Pump
The cost can vary significantly depending on whether you do the job yourself or take it to a repair shop.
| Part / Service | Estimated Cost |
|---|---|
| New Aftermarket Pump | $35 - $42 |
| New OEM Pump | $102 - $173 |
| Shop Labor | $126 - $185 |
| Total Professional Replacement | $228 - $358+ |
No Recalls, But Check Your Hoses
There are no active recalls from Hyundai or the NHTSA for the windshield washer pump on the 2016-2022 Tucson. However, some owners have reported the washer fluid hoses in the wheel well area can become brittle and break, causing a leak. When replacing your pump, it's a good idea to inspect the visible hoses for cracks.
Frequently Asked Questions
Is it hard to replace the washer pump on a Tucson?
No, it is considered an easy DIY job that takes less than an hour. The pump is located on the washer fluid reservoir inside the front passenger-side wheel well. Access involves removing a few clips on the plastic fender liner to pull it back. The pump itself just pulls out from a rubber grommet.
Do I need to drain the washer fluid first?
Yes, any fluid in the reservoir will pour out when you remove the old pump. Have a bucket ready to catch it so you can reuse it or dispose of it properly.
My washers don't work in the winter. Is the pump broken?
Not necessarily. If you are using a standard blue washer fluid, it can freeze in the lines or turn to slush in very cold temperatures. Before assuming the pump is bad, try moving the vehicle to a warm garage to thaw the lines and switch to a winter-grade fluid rated for low temperatures.
Does my Tucson have one or two washer pumps?
Your Tucson uses a single pump for both the front and rear windshields. The pump motor reverses direction to send fluid to the back. When ordering a part, ensure it is listed as compatible with both front and rear systems if it's a single-outlet design, or that it has the correct dual outlets.
Helpful Videos
Technical Specifications

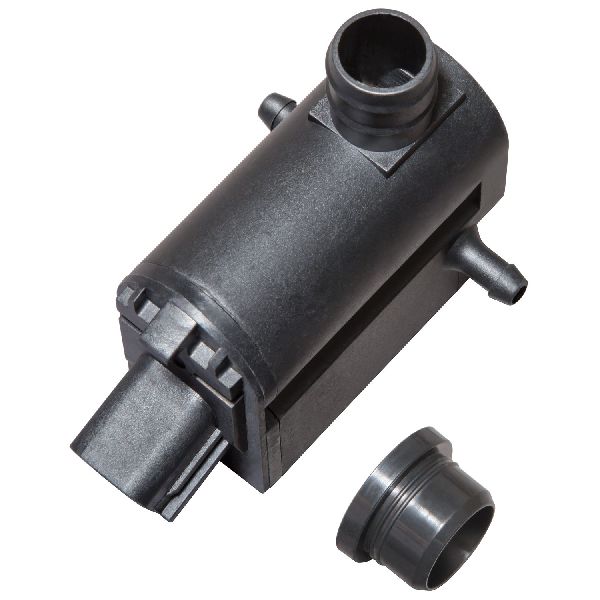

OEM Part Numbers: 98510-2J500 98510-2S000 98510-3L000 98510-1W000 98510-2C100
Typically a 12V DC motor press-fit into the washer fluid reservoir with a rubber grommet. Most designs for the Tucson feature a single pump with dual outlets or a reversing motor for front and rear washers.
