A Guide to Replacing the Ignition Coils on Your 2016-2022 Volkswagen Passat
If your Passat's engine is running rough or the check engine light is on, a bad ignition coil could be the reason.
- Ignition coil failure is a common wear item on the 2016-2022 Passat; there are no specific recalls for this part on these model years.
- Symptoms include a shaking engine, flashing check engine light, and loss of power.
- Replacement is very easy for a DIYer and can be done in under 30 minutes with basic tools.
- For best value and reliability, choose an OEM-supplier brand like Bremi, Hella, or Denso.
- Always confirm your engine size (1.8T/2.0T vs VR6) before ordering parts.
Is Your Passat's Ignition Coil Failing?
Ignition coils are tough parts, but they don't last forever. Heat and vibration from the engine eventually cause them to wear out. When a coil starts to fail on your Passat, you will notice it. The signs are hard to miss.
Key Symptoms of a Bad Ignition Coil:
- Engine Misfires: This is the most common sign. The car may shake or shudder, especially when you are stopped 🎬 Watch: How to fix a shaking engine caused by misfires or accelerating. It can feel like the engine is stumbling.
- Check Engine Light: A failing coil will almost always trigger the check engine light. If the light is flashing, it means the misfire is severe and you should stop driving as soon as it is safe to do so to prevent engine damage.
- Loss of Power: Your Passat may feel sluggish and slow to accelerate. This happens because one of the cylinders is not producing power correctly.
- Poor Fuel Economy: When a cylinder misfires, it wastes fuel. You will notice you are filling up your gas tank more often.
- Trouble Starting: In some cases, a bad coil can make it difficult to start the engine, or cause it to stall.
A Note on Recalls and Technical Service Bulletins (TSBs)
While older Passat models from the 2000s had investigations into ignition coil issues, there are no active recalls or widespread TSBs for ignition coil failure on the 2016-2022 Volkswagen Passat. Failures on these models are considered a normal wear-and-tear item.
Choosing the Right Aftermarket Ignition Coil
When you shop for a new ignition coil, you will see many brands. They are not all the same quality. Here is how they generally break down for your Passat.
Tier 1: OEM Supplier & Performance Brands
- Bremi, Hella, Denso: These brands are known to be Original Equipment Manufacturers (OEM) or supply parts of equivalent quality for Volkswagen. Choosing one of these is like getting the dealer part without the dealer price. They offer excellent reliability and fit.
- APR: This brand is popular with VW enthusiasts. They claim their coils produce a stronger spark, which can be good for tuned or modified engines. For a standard Passat, they are likely not necessary, and some users report mixed reliability.
Tier 2: Reputable Aftermarket Brands
- Beck Arnley, Accel: These are well-known aftermarket brands. They provide a good balance of price and quality for a daily driven vehicle.
Tier 3: Value Brands
- Prenco: This brand falls into the value category. It will get the job done at a lower price, but may not have the same long-term durability as a higher-tier brand.
Pro Tip: Replace Them in Sets
If your Passat has over 70,000 miles and one ignition coil fails, it's a smart idea to replace all four (or six for the VR6 engine) at the same time. The other original coils have the same amount of wear and are likely to fail soon. Replacing them all at once saves you from future headaches.
Common Ordering Mistakes to Avoid
The 2016-2022 Passat came with different engines. The 1.8T and 2.0T four-cylinder engines use the same ignition coils. However, the much rarer 3.6L VR6 six-cylinder engine uses a completely different ignition coil. Always confirm your engine size before ordering to ensure you get the correct part.
Cost to Replace Passat Ignition Coils
| Part / Service | Estimated Cost (per coil) |
|---|---|
| New Aftermarket Coil | $43.25 - $99.12 |
| New OEM (Dealer) Coil | $70 - $95 |
| Shop Labor (DIY is easy) | $70 - $110 |
| Total at a Shop (1 Coil) | $140 - $205 |
Frequently Asked Questions
Is it hard to replace a Passat ignition coil myself?
No, it is a very easy job for a beginner. It requires basic tools, like a Torx T30 socket. You simply remove the engine cover, unplug the old coil, undo one bolt, and pull the coil straight out. The new one goes in the same way. It can be done in less than 15 minutes per coil.
🎬 Watch this DIY guide to replacing coils and spark plugsShould I replace the spark plugs at the same time?
Yes, it is highly recommended. The ignition coils have to be removed to access the spark plugs anyway. If the coils are old, the spark plugs probably are too. Replacing them together ensures your ignition system is in top shape.
What is the most common check engine code for a bad coil?
You will likely see codes P0301, P0302, P0303, or P0304. The last number tells you which cylinder is misfiring 🎬 See how to check for bad coils on your VW (1, 2, 3, or 4). A code of P0300 means there are random misfires in multiple cylinders.
What happens if I don't replace a bad ignition coil?
Continuing to drive with a misfire can cause serious and expensive damage. Unburnt fuel can get into your exhaust system and destroy the catalytic converter, a repair that can cost over $1,000.
Helpful Videos
Technical Specifications
OEM Part Numbers: 06L905110K 06K905110K 06J905110N

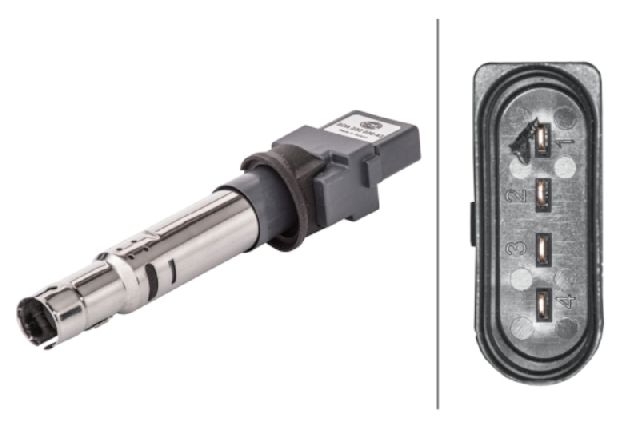

This vehicle uses a 'coil-on-plug' or 'pencil' style ignition coil. One coil is required per cylinder. The 1.8T and 2.0T engines use four coils, while the 3.6L VR6 engine uses six different coils.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
