A/C Compressor Guide for the 2016-2022 Volvo XC90
Is your XC90's air conditioning blowing warm? Here is what you need to know about the A/C compressor before you replace it.
- The 2016-2022 XC90 uses a clutchless variable displacement compressor; the entire unit must be replaced if it fails.
- A/C system issues are a known problem for this XC90 generation, but symptoms can also be caused by leaks or other failed components, not just the compressor.
- When replacing the compressor, you MUST also replace the receiver drier/desiccant bag and flush the system to prevent premature failure of the new part.
- Due to the need for specialized refrigerant handling equipment, this repair should be performed by a professional mechanic.
Is Your XC90 A/C System Failing?
If the air from your vents isn't as cold as it used to be, or if it's blowing warm air, a problem with the A/C compressor could be the cause. Owners of 2016-2022 Volvo XC90 models have reported several issues with the A/C system, with the compressor being a leading culprit. However, other issues like refrigerant leaks, evaporator problems, or even a clogged cabin air filter can cause similar symptoms. Proper diagnosis is essential before deciding to replace the compressor.
Common Symptoms of a Failing A/C Compressor
- Warm Air: The most obvious sign is a lack of cold air from the vents. This happens when the compressor can no longer effectively pressurize the refrigerant.
- Loud Noises: Grinding or squealing sounds when the A/C is turned on often point to internal mechanical failure or a bad bearing. In some cases, a seized compressor can cause the serpentine belt to break, leading to other warnings like a 🎬 Watch: See what a failed XC90 compressor sounds like "12-volt system service required" message.
- Leaking Fluid: The compressor has seals that can fail over time, leading to refrigerant and oil leaks. You might see a greasy residue on the body of the compressor.
- Intermittent Cooling: The A/C might work fine one minute and then stop cooling the next. This can be a sign of a failing compressor control valve or 🎬 Watch: Easy diagnostics for A/C that randomly stops working other electrical issues.
Known Issues and Technical Service Bulletins (TSBs)
A/C system problems are a known issue for this generation of Volvo XC90. Some owners have experienced failures just outside of the warranty period. There are no major recalls for the compressor itself, but Volvo has issued Technical Service Bulletins (TSBs) related to the A/C system. For example, TSB 31603 for the 2016 XC90 T8 noted a sticking Thermal Expansion Valve (TXV) that could cause poor cooling and noise from the compressor. Another TSB mentions installing a resistor to address poor cooling performance. These bulletins show that sometimes the problem isn't the compressor itself, but another related component causing the symptoms.
Choosing the Right Aftermarket A/C Compressor
When replacing the A/C compressor, you have a choice between Original Equipment (OEM) and aftermarket parts. For a vehicle like the XC90, quality matters. A cheap, poorly made compressor can fail quickly, costing you more in the long run.
Here’s a look at the available brands:

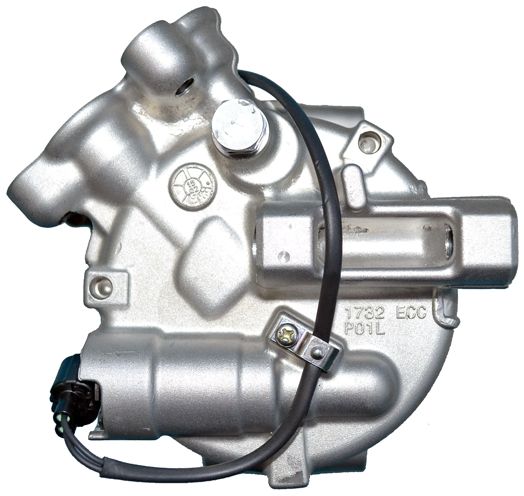

- Mahle: Often considered an OEM-quality brand, Mahle (sometimes listed as Mahle Behr) is a top-tier choice. They are known for manufacturing parts that meet or exceed the original specifications.
- Nissens: Another highly reputable brand in the European car world, Nissens provides excellent quality compressors and is a solid alternative to the OEM part.

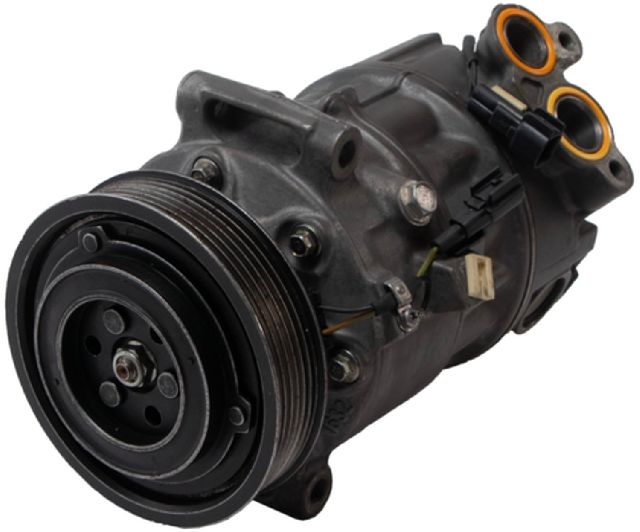

- Four Seasons: A well-known standard aftermarket brand. They offer a reliable product that provides a good balance between cost and quality for many applications.

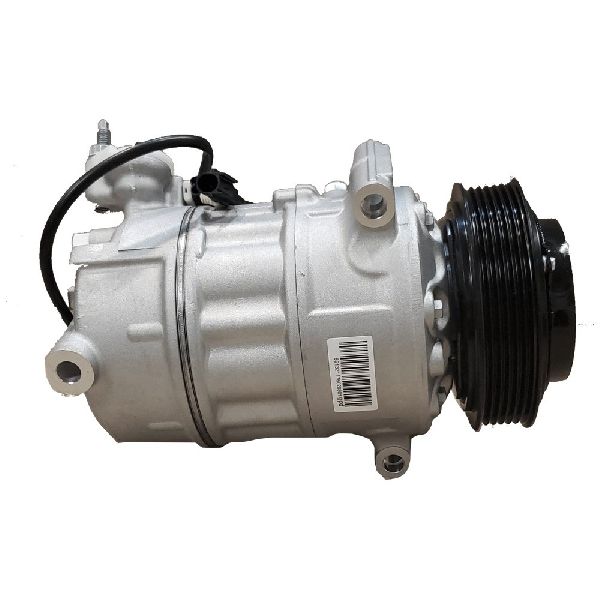

- Global Parts (gpd): This is a budget-friendly aftermarket option. While more affordable, it's important to ensure it meets all the specifications for your XC90's sensitive A/C system.
Pro Tip: Replace More Than Just the Compressor
When a compressor fails, it can send metal shavings and debris throughout the entire A/C system. To prevent your new compressor from failing prematurely, it is critical to also replace the A/C receiver drier (or desiccant bag) and the expansion valve. The system must also be completely flushed to remove any contaminants before installing the new parts and recharging with the correct amount of refrigerant and oil.
Cost of Replacing an XC90 A/C Compressor
The cost can vary significantly based on the parts you choose and your local shop's labor rates. The job is labor-intensive, which contributes to the overall cost.
| Part/Service | Estimated Cost |
|---|---|
| New OEM Compressor | $1,000 - $1,200+ |
| New Aftermarket Compressor | $262 - $848 |
| Shop Labor | $390 - $690 |
| Total Professional Replacement (Aftermarket) | $650 - $1,550+ |
Frequently Asked Questions
Do I have to replace the whole compressor or just the clutch?
The 2016-2022 Volvo XC90 uses a clutchless, variable displacement compressor. This design does not have a separate, replaceable clutch like older A/C systems. If the compressor is faulty, the entire unit must be replaced.
Why is my A/C blowing warm even after a refrigerant recharge?
If a recharge doesn't fix the problem, it indicates a larger issue. It could be a significant leak, a faulty compressor that can't pressurize the new refrigerant, a bad control valve, or a clogged expansion valve or evaporator. Simply adding more refrigerant to a system with a faulty compressor will not restore cold air.
Can I replace the XC90 A/C compressor myself?
This is not recommended for most DIY mechanics. Replacing an A/C compressor requires specialized equipment to safely recover the old refrigerant and then pull a vacuum on the system before recharging it. Handling refrigerants without proper training and equipment is dangerous and illegal in many places. It is best left to a professional mechanic.
🎬 See this walkthrough of the compressor removal processWhat is a desiccant bag and why does it need to be replaced?
The desiccant bag, or receiver/drier, is like a filter for the A/C system. It absorbs moisture and traps debris. Whenever the A/C system is opened for a repair (like replacing a compressor), the desiccant becomes saturated with moisture from the air and must be replaced to protect the new components and ensure long system life.
Helpful Videos
Technical Specifications
OEM Part Numbers: 36010353 31436198 36011277 36010255
Compressor Type: Variable Displacement, Clutch Design: Clutchless
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
