Audi TTS Quattro Engine Oil Pressure Switch: A Comprehensive Guide (2016-2023)
Understanding the critical oil pressure switches in your EA888 engine and how to address common failures.
- Never drive your TTS with the red oil pressure light on; shut the engine off immediately to prevent catastrophic damage.
- Your engine has two pressure switches (low and high pressure); a fault code can help identify which one is failing.
- A faulty switch is a common cause, but always rule out low oil level or other known TSB-related issues before replacing parts.
- For a critical part like this, choosing a premium aftermarket brand like Hella or CRP provides reliability similar to OEM.
Your Audi's Two-Stage Oil Pressure System
The Gen 3 EA888 2.0T engine in your 2016-2023 TTS is designed for performance and efficiency. Part of this design is a variable-pressure oiling system. Below about 3,500 RPM, the engine runs on a lower oil pressure setting (around 1.8 bar) to save energy. Above that RPM, it switches to a higher pressure (around 3.2 bar) to ensure everything is well-lubricated under load. To monitor this, the engine uses two separate oil pressure switches, located on the oil filter housing. A brown switch monitors the low-pressure stage, and a blue switch monitors the high-pressure stage. If either switch detects pressure that's too low for the current operating condition, it will trigger a warning.
Symptoms of a Failing Oil Pressure Switch
A bad oil pressure switch can create scary warnings that look like a major engine problem. Knowing the signs can help you diagnose the issue correctly.
- Red Oil Pressure Warning Light: This is the most serious warning your car can display. It often comes with a message to "shut off engine." You should always pull over safely and turn off the engine immediately.
- Warning Light at Idle: A common failure is for the light to flicker or turn on only when the engine is warm and idling. Revving the engine slightly might make the light go away. This often points to a problem with the low-pressure (brown) switch. 🎬 Watch: How to fix an intermittent oil pressure warning light.
- Warning Light at High RPM: If the warning light only appears when you are accelerating or driving at highway speeds, it could indicate a failure of the high-pressure (blue) switch.
- Stored Fault Codes: Sometimes a switch can fail without turning on the main dashboard light. A scan tool might find stored codes like P0521, P164B, or P164D.
Important: Diagnose Before Replacing
While a faulty switch is a common cause for oil pressure warnings, it's not the only one. Low oil level, old/dirty oil, or a problem inside the oil filter housing could also be the culprit. A Technical Service Bulletin (TSB 2041093/4) for similar Audi engines points to a faulty rubber plug inside the oil filter housing causing a P164D00 code, not the switch itself. 🎬 See this walkthrough for resolving the P164D00 fault code. Always check the simple things first, and if a new switch doesn't fix the problem, have a mechanic test the actual oil pressure with a mechanical gauge.
Choosing the Right Aftermarket Oil Pressure Switch
Since the oil pressure switch is critical for protecting your engine, part quality matters. You don't have to buy from the dealer, but choosing a reputable aftermarket brand is important.
- Premium Brands (Recommended): Brands like Hella and CRP (often sold as Rein) are frequently original equipment (OE) suppliers to German automakers. Choosing one of these brands gives you a high degree of confidence that the part will perform just like the factory original.
- Trusted Aftermarket Brands: Beck Arnley and Standard Ignition (SMP) are well-known aftermarket manufacturers with a long history. They are generally considered reliable choices for sensors and switches.
- Value-Oriented Brands: Brands like Walker Products and Rostra Powertrain offer a more budget-friendly option. While they can be a good value, for a critical sensor like this, sticking with a brand known for its OE-level quality is often the safer bet.
Pro Tip: Replace Both Switches
The low-pressure and high-pressure switches are located next to each other on the oil filter housing. Since they are exposed to the same heat and oil, they tend to have similar lifespans. If one fails, the other may not be far behind. Given the low cost of the parts and the fact that you're already working in the area, it's smart to replace both switches at the same time.
| Part Type | Estimated Cost |
|---|---|
| New OEM (Dealer) | $60 - $100 per switch |
| New Aftermarket | $15 - $57 per switch |
| Shop Labor | $100 - $180 |
Frequently Asked Questions (FAQ)
Can I drive my TTS if the oil pressure light is on?
No. If the red oil pressure warning comes on, pull over as soon as it's safe and shut off the engine. Driving with low oil pressure, even for a short time, can cause severe and permanent engine damage. It's best to have the vehicle towed.
Is replacing the oil pressure switch a DIY job?
Yes, this is a manageable job for a moderately skilled DIYer. The switches are on the oil filter housing near the front of the engine. You may need to remove some plastic engine covers for access. A special deep socket (often 24mm) is required to remove and install the switches without damaging them. Always use a torque wrench for installation.
What's the difference between an oil pressure 'switch' and a 'sensor'?
A 'switch' is a simple on/off device that triggers a warning light when pressure drops below a specific point. A 'sensor' or 'sender' provides a variable reading that can drive a gauge, showing the actual pressure. Your TTS uses switches for its warning system.
Are there any recalls for the oil pressure switch on the 2016-2023 TTS?
As of early 2026, there are no specific recalls for the oil pressure switches on this vehicle. However, there have been recalls and TSBs for related oil system components on other Audi models, highlighting the importance of proper diagnosis.
Helpful Videos
Technical Specifications
OEM Part Numbers: F22 F378

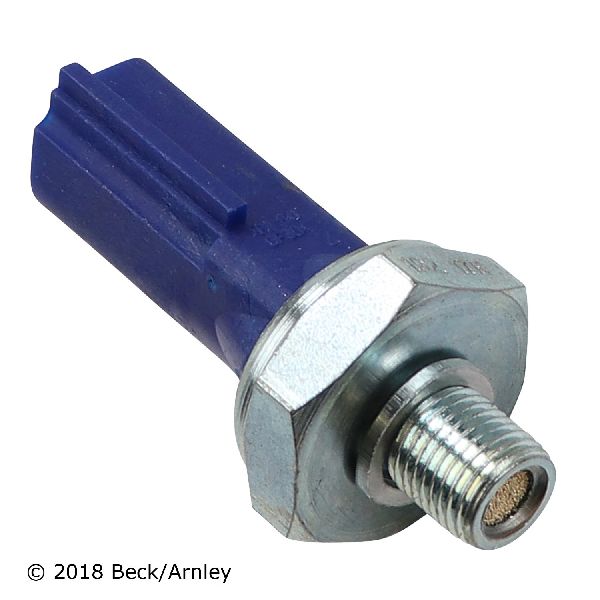

The EA888 Gen 3 engine uses a two-stage oil pressure system with two switches. The Reduced Oil Pressure Switch (F378, often brown) is rated for 0.5 - 0.8 bar (7-12 PSI). The high-pressure switch (F22, often blue) is rated for 2.3 - 3.0 bar (33-44 PSI). Both are typically located on the oil filter housing and require a 24mm deep socket for removal.
