A Guide to the HVAC Pressure Transducer for the 2016-2023 Buick Envision
If your Envision's A/C is blowing warm or not working at all, this small sensor could be the culprit.
- A faulty HVAC pressure transducer is a common reason for the A/C to blow warm air in your Envision.
- Symptoms include warm air, intermittent cooling, or the compressor not turning on at all.
- DIY replacement is possible ONLY if your vehicle has a Schrader valve under the sensor; otherwise, professional service is required.
- Quality aftermarket brands like Four Seasons and Global Parts offer a reliable repair for less than the OEM part.
Is Your Buick Envision's A/C Ready for the Heat?
When your air conditioning stops blowing cold, it's easy to assume the worst, like a failed compressor or an expensive leak. However, a common and much simpler point of failure is the HVAC Pressure Transducer. This small sensor plays a huge role in your A/C's operation, and when it fails, it can shut the whole system down. Understanding its symptoms can save you from unnecessary diagnostic costs and get your cool air back faster.
Symptoms of a Failing HVAC Pressure Transducer
While this doesn't appear to be a widespread, recurring problem specific to the Buick Envision, the symptoms of a failed transducer are consistent across most vehicles. Watch for these signs:
- A/C Blows Warm or Hot Air: This is the most common symptom. If the sensor provides a false reading, it will prevent the A/C compressor from turning on, so the air from your vents will never get cold.

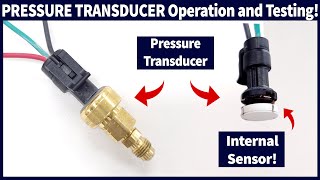

- Intermittent A/C Operation: The A/C might work for a few minutes and then suddenly stop, or it may work on some drives but not others. This can be caused by a sensor that is failing and sending erratic signals. 🎬 See how a pressure transducer operates and how to test it.
- A/C Compressor Clutch Won't Engage: You won't hear the typical 'click' of the A/C compressor turning on when you press the button. The failed sensor is telling the computer not to engage the clutch as a safety measure.
- Radiator Fans Running on High: In some cases, a faulty high-pressure sensor can send a signal that causes the engine's cooling fans to run at full speed constantly when the A/C is on.
Choosing Your Aftermarket Replacement Part
For the 2016-2023 Buick Envision, you have a few good options for a new aftermarket HVAC pressure transducer. You don't always need to pay the high price for a part from the dealer.
OEM vs. Aftermarket Quality
The original ACDelco sensor (GM Part #13587668) is a quality part, but aftermarket brands offer a reliable alternative for less money. For a simple electronic sensor like this, a reputable aftermarket brand is often just as good. Brands like Four Seasons are known to sometimes use the same manufacturer as the OEM, with the only difference being the name on the box.
Aftermarket Brand Tiers
- Four Seasons: A well-regarded brand in the aftermarket A/C parts world. They are known for quality and reliability, making them a solid choice for this repair.
- Global Parts (GPD): Another major supplier of A/C components. They state their parts are durability and voltage tested to meet or exceed OEM standards, offering a cost-effective option.
Cost to Replace Buick Envision HVAC Pressure Transducer
| Part Type | Part Cost | Shop Labor Cost | Total Estimated Cost |
|---|---|---|---|
| New OEM (ACDelco) | $55 - $102 | $90 - $620 | $145 - $722 |
| New Aftermarket | $39 - $50 | $90 - $620 | $129 - $670 |
Note on Labor Cost: The labor cost has a very wide range for a specific reason. If the sensor port has a Schrader valve, replacement is simple and should take less than an hour of labor ($90-$120). However, if the port does not have a valve, the entire A/C system must be professionally evacuated and recharged, a process that can cost between $422 and $619 at a repair shop.
Frequently Asked Questions (FAQ)
Can I replace the HVAC pressure transducer myself?
Maybe. This is a critical point. Many GM vehicles have a Schrader valve in the A/C line port where the sensor screws in, which prevents refrigerant from escaping when the old sensor is removed. If your Envision has this, the job is very easy for a DIYer: unplug the old sensor, unscrew it with a wrench, screw the new one on, and plug it in. However, if there 🎬 Watch this walkthrough of a typical GM pressure switch replacement. is no Schrader valve, the entire refrigerant charge will escape when you loosen the sensor. This is illegal, harmful to the environment, and dangerous.
Before you attempt this repair, you MUST verify if a valve is present. Loosen the sensor very slightly and listen for any hissing. If you hear any hissing at all, STOP and tighten it immediately. Your vehicle does not have a self-sealing port, and the repair must be done by a professional with an A/C recovery machine.

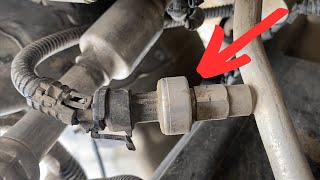

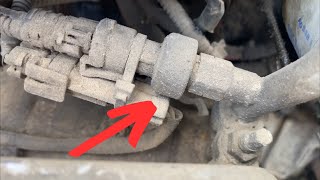

Where is the HVAC pressure transducer located on the Buick Envision?
The HVAC pressure transducer is a high-pressure side sensor. You will find it screwed into one of the smaller diameter aluminum A/C lines. Look in the engine bay, typically between the front grille area (near the A/C condenser) and the A/C compressor. It will have a small electrical connector plugged into it.
Are there any recalls for this part on my Buick Envision?
No. As of early 2026, there are no active recalls or widespread Technical Service Bulletins (TSBs) from General Motors or the NHTSA for a faulty HVAC pressure transducer on the 2016-2023 Buick Envision.
Will a bad pressure transducer always cause a Check Engine Light?
Not always, but it often will. A failing sensor can trigger the Check Engine Light and store diagnostic trouble codes (DTCs) such as P0530, P0531, P0532, or P0533. A professional scan tool can read these codes to help confirm the diagnosis.
🎬 Watch this guide on fixing A/C codes P0530 through P0533.Helpful Videos
![What is P0533 Engine Code [Quick Guide]](https://img.youtube.com/vi/S8XEXZskYb0/mqdefault.jpg)
Technical Specifications

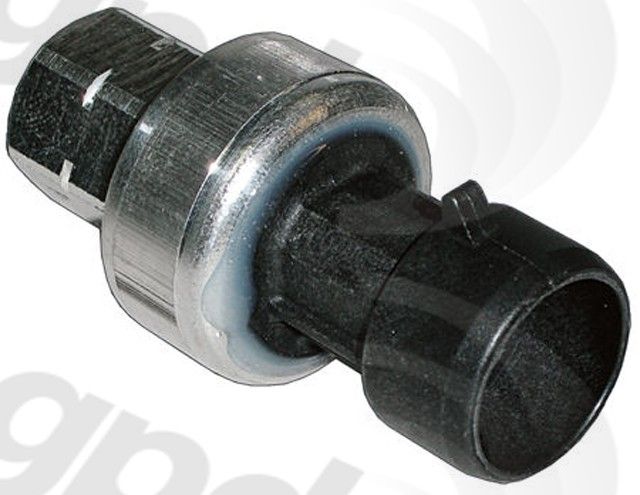

OEM Part Numbers: 13587668 22678731 13502759 13502758
This is a 3-pin electronic sensor that reads refrigerant pressure and sends a variable voltage signal to the Engine Control Module.
