Chevrolet Tahoe Door Window Switch Guide for 2016-2023 Models
If your Tahoe's power window, mirror, or lock controls are failing, this guide explains how to diagnose and fix the problem.
- Failure is common, with symptoms ranging from intermittent operation to complete failure of window, lock, or mirror controls.
- Replacement on 2016-2023 Tahoes is an easy DIY job that does not require removing the door panel.
- Before replacing, check for water damage in the door harness connectors as noted in TSB 18-NA-079.
- A new switch may require a simple re-learning procedure to restore the auto up/down window function.
Is Your Tahoe's Window Switch Failing?
A failing door window switch is a common issue. The driver's master switch gets the most use, so it's often the first to wear out. Symptoms can start small but usually get worse over time. Ignoring them can leave you with a window stuck open in bad weather.
Common Symptoms of a Bad Switch:
- One or more windows won't work: The most obvious sign is when a window stops responding, either from the master switch or its individual door switch.
- Intermittent operation: You might have to press the button multiple times to get the window to move. This often points to worn internal contacts.
- Works one way, but not the other: The window may roll down perfectly but struggle or refuse to roll up.
- Only the master switch works: If a passenger window can be controlled from the driver's door but not its own switch, the individual switch has likely failed.
- Inoperative mirror or lock controls: Since the power lock and mirror controls are part of the master switch assembly, their failure also points to a bad switch module.
Check for TSB 18-NA-079 Before You Replace
General Motors issued Technical Service Bulletin (TSB) 18-NA-079 for 2014-2018 Tahoe models experiencing inoperative or jerky windows. The bulletin notes that water can get into the main door wiring harness connector, causing corrosion and communication errors between the switch, Body Control Module, and window motor. Before buying a new switch, it's wise to inspect the door harness connectors for any signs of green or white corrosion. If corrosion is present, the harness may need cleaning or replacement, as a new switch won't solve the underlying wiring problem.
Choosing the Right Aftermarket Switch
When shopping for a replacement, you'll primarily find two reputable brands: ACDelco and Standard Ignition (also known as Standard Motor Products or SMP). The choice between them often comes down to price and your preference for original equipment versus a high-quality aftermarket alternative.
- ACDelco: As the original equipment manufacturer for General Motors, ACDelco parts are considered the benchmark for fit and function. Choosing an ACDelco switch ensures you are getting a part that matches the factory design and quality. They are often the preferred choice for owners wanting a direct, dealership-quality replacement.
- Standard Ignition (SMP): Standard is a well-respected aftermarket brand that has been producing quality electronic parts for decades. Their switches are designed to meet or exceed OEM specifications and are a reliable, cost-effective alternative to the factory part. Many professional technicians use Standard parts with confidence.
Pro Tip: Match Your Features
Tahoe models have different options, such as power-folding mirrors. When ordering, ensure the new switch has the exact same buttons and functions as your original one. Using the wrong switch can result in non-working features.
Cost of Replacing a Tahoe Window Switch
The cost to replace your window switch depends on the brand you choose and whether you do the job yourself. Fortunately, for this generation of Tahoe, it is a very simple DIY task.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Switch (ACDelco, Standard) | $50 - $105 |
| New OEM (Dealer) Switch | $65 - $150 |
| Shop Labor | $50 - $125 |
Frequently Asked Questions (FAQ)
Is replacing the window switch a DIY job?
Absolutely. For the 2016-2023 Tahoe, the master switch can be replaced in under 15 minutes. You simply use a plastic trim tool to pry the switch bezel up from the armrest, disconnect the electrical plugs, and swap the module. No need to remove the entire door panel.
Does a new window switch need to be programmed?
Usually, no. Most aftermarket switches are plug-and-play. However, you may need to recalibrate the "auto up/down" feature. To do this, roll the window all the way down and hold the button for 5 seconds, then roll it all the way up and hold for 5 seconds. In rare cases, some forum users have reported needing a dealer to program a new OEM switch for all functions to work correctly.
Why did my original switch fail?
Failure is typically due to two main reasons: wear and tear from thousands of clicks, or moisture. Rain from an open window or spilled drinks can seep into the switch housing, causing corrosion on the internal circuit board.
Can I just replace the one broken button?
No. The switch is a single, integrated module. The entire unit must be replaced even if only one button has failed.

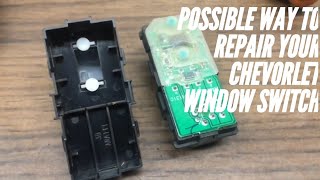

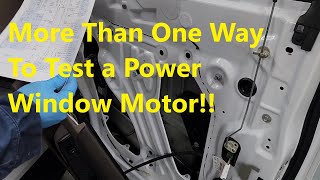

Helpful Videos
Technical Specifications
OEM Part Numbers: 84452532 23427094 84829232 85040683
Master control module for driver's door. Integrates controls for all power windows, power-folding mirrors (if equipped), window lock, and power door locks. Connects to the vehicle's Body Control Module (BCM) via a LIN Bus network.
