Ignition Knock (Detonation) Sensor for the 2021-2023+ Chevrolet Trailblazer
Protect your Trailblazer's turbocharged engine by understanding and replacing a faulty knock sensor.
- This guide is for the North American 2021-2023+ Chevrolet Trailblazer, not earlier international models.
- A faulty knock sensor will almost always trigger a Check Engine Light with code P0325.
- Reduced power and poor fuel economy are common symptoms as the engine enters a protective 'safe' mode.
- Using a quality aftermarket brand like Standard Ignition or Walker is a viable alternative to OEM, but avoid the cheapest options.
Is My Trailblazer a 2016-2020 or 2021-2023?
This article is for the Chevrolet Trailblazer sold in the North American market, which began with the 2021 model year. If you have a 2016-2020 Trailblazer, it is likely an international model, and this specific part information may not apply. Always verify your vehicle's model year and market before purchasing parts.
Choosing the Right Aftermarket Knock Sensor
When your knock sensor fails, you have a choice between OEM (Original Equipment Manufacturer) and aftermarket parts. For a sensitive part like a knock sensor, quality matters. However, several reputable aftermarket brands offer reliable alternatives at a lower cost.
Here’s a breakdown of the available aftermarket brands:
- Standard Ignition (SMP): Often considered a top-tier aftermarket brand, Standard Ignition parts are trusted by many professional technicians. They focus on meeting or exceeding OE specifications and have a long history in the industry. For many, this is a go-to for a balance of quality and price.

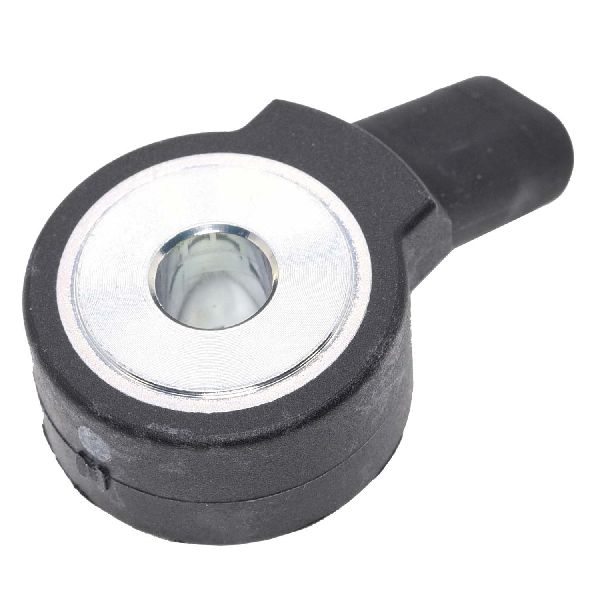

- Walker Products: Another established brand, Walker Products manufactures a wide range of engine management components. They state their sensors are built to meet or exceed OE quality for fit and function and are backed by decades of experience. Walker is a solid mid-range choice. 🎬 Learn more about the quality of Walker Products knock sensors.

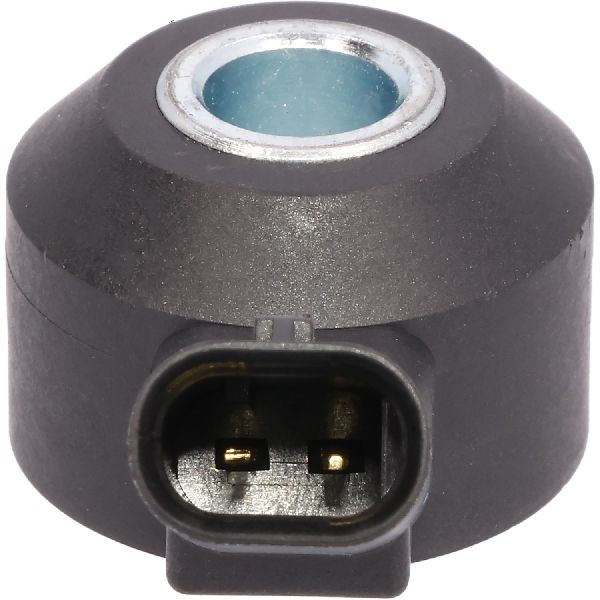

- Global Parts (gpd): This brand often falls into the budget-friendly or economy category. While it can save you money upfront, the long-term reliability of such critical sensors can be a mixed bag. For a part that protects your engine, it's often worth spending a few extra dollars on a more established brand.
Pro Tip: OEM vs. Aftermarket
While some vehicle owners insist on OEM for all sensors, many have success with high-quality aftermarket brands like Standard Ignition or Walker. The key is to avoid the cheapest options, as a faulty replacement sensor can cause the same performance issues or fail prematurely.
Common Ordering Mistakes to Avoid
The biggest mistake is not confirming your engine size. The 2021-2023 Trailblazer is available with either a 1.2L or 1.3L 3-cylinder engine. While the knock sensor may look similar, there could be internal differences. Always use your vehicle's VIN to confirm you are ordering the correct part for your specific engine.
Cost of a New Knock Sensor for 2021-2023 Trailblazer
| Part Type | Estimated Cost |
|---|---|
| New OEM (ACDelco) | $5 - $10 |
| New Aftermarket | $11.83 - $26.90 |
| Shop Labor | $90 - $120 |
Known Issues, Recalls, or TSBs
As of early 2026, there are no specific recalls or widespread Technical Service Bulletins (TSBs) from General Motors for knock sensor failure on the 2021-2023 Chevrolet Trailblazer. However, individual sensor failures can still occur. One owner of a 2023 model reported a failure due to corroded cable and plug connections.
Frequently Asked Questions (FAQ)
Where is the knock sensor located on my 2021-2023 Trailblazer?
The knock sensor is typically mounted directly on the engine block, often under the intake manifold. This location allows it to accurately detect engine vibrations.
What is the most common trouble code for a bad knock sensor?
The most common Diagnostic Trouble Code (DTC) is P0325, which indicates a malfunction in the Knock Sensor 1 circuit. 🎬 Watch this guide on bad knock sensor symptoms and DIY fixes. Other related codes may also appear.
Do I need a special tool to replace the knock sensor?
While basic hand tools are needed, the most critical tool is a torque wrench. Knock sensors are sensitive and must be tightened to a specific torque specification (usually around 15 ft-lbs) to function correctly. Over-tightening or under-tightening can cause incorrect readings.
Should I replace the wiring harness with the sensor?
It's a good practice, especially if the connector shows any signs of corrosion, brittleness, or damage. A bad connection can mimic the symptoms of a failed sensor. In some cases, the harness is the actual point of failure.
Helpful Videos
Technical Specifications
OEM Part Numbers: 55494828 12737721 12663209
Typically a single bolt-on, 2-pin piezoelectric sensor.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
