Ford Mustang A/C Receiver Drier Replacement Guide (2016-2023)
If your Mustang's A/C isn't blowing cold, the receiver drier might be the culprit, especially if other system repairs are needed.
- The receiver drier MUST be replaced any time the A/C system is opened for a repair, such as a compressor or condenser replacement.
- A common A/C issue on 2015-2017 Mustangs is a leaking evaporator core (TSB 18-2256), a repair that requires drier replacement.
- Replacement is not a DIY job for most owners as it requires a professional A/C machine to safely evacuate and recharge the system.
- Verify your refrigerant type: 2016-2017 models typically use R-134a, while 2018+ models use the newer R-1234yf.
Is Your Mustang's A/C Failing? Symptoms of a Bad Receiver Drier
A failing A/C receiver drier itself can cause problems, but its failure is often a symptom of a larger issue. Because its main job is to absorb moisture, it must be replaced any time the A/C system is opened to the atmosphere. Here are the signs to watch for:
🎬 Watch: Troubleshooting guide for a Mustang A/C that isn't working.- Poor or No Cooling: If the drier is clogged with debris or the internal desiccant bag has broken, it can block the flow of refrigerant. This will result in warm air blowing from your vents.
- Rattling Noises: If the desiccant material inside the drier has broken apart, you might hear a rattling sound from the engine bay when the A/C is on. This is a serious issue, as these particles can travel through the system and cause major damage.
- Moldy Smell: A water-saturated drier can promote the growth of mold and mildew within the A/C system, leading to a musty smell from the vents.
- Visible Refrigerant Leaks: While less common, the drier itself can leak. You might see a greasy, oily residue on the canister or its fittings.
Known Issue: Leaking A/C Evaporator Core (2015-2017)
A very common problem on 2015-2017 Mustangs is a leaking A/C evaporator core, which is located deep inside the dashboard. Ford issued Technical Service Bulletin (TSB) 18-2256 for this issue. Symptoms include a hissing noise from the dash and a gradual loss of cooling performance. If your Mustang has a leaking evaporator that needs to be replaced, the receiver drier must also be replaced as part of that repair, as the system will be opened.

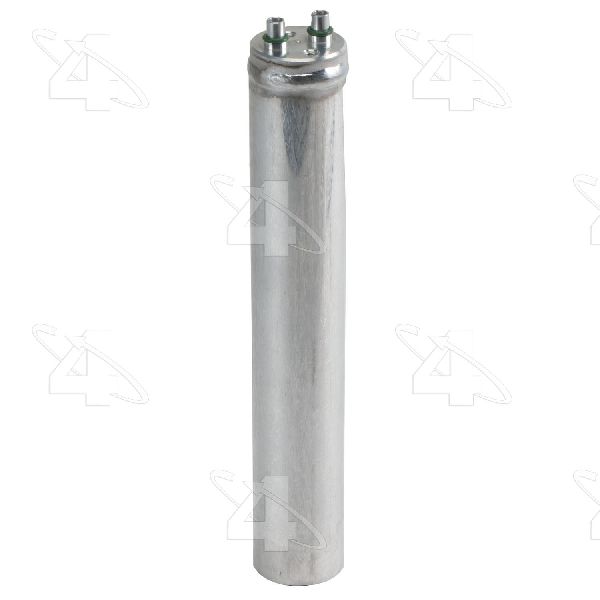

Choosing the Right Aftermarket A/C Receiver Drier
When it's time for a replacement, you have a choice between OEM (Motorcraft) and aftermarket parts. For the 2016-2023 Mustang, the receiver drier is a relatively simple component, and a quality aftermarket part can be a cost-effective choice.
- OEM (Motorcraft): The original part (FR3Z-19C836-A) offers a guaranteed fit and performance identical to the factory-installed component. It's a reliable, worry-free option, though typically at a slightly higher price point.
- Aftermarket (Four Seasons): Brands like Four Seasons offer a direct-fit replacement at a lower cost. User reviews for Four Seasons A/C components are often mixed; some users report long-term reliability, while others have experienced early failures. However, for a component like a receiver drier, it is generally considered a reliable budget-friendly choice, provided the rest of the A/C service is performed correctly (pulling a deep vacuum and charging with the correct oil and refrigerant).
Pro Tip: Check Your Refrigerant Type
Ford switched refrigerants during this Mustang generation. It is critical to use the correct type for your vehicle. Check the sticker under your hood to be certain.
- 2016-2017 Models: Typically use R-134a refrigerant.
- 2018-2023 Models: Typically use R-1234yf refrigerant.
The systems are not cross-compatible.
Cost to Replace a 2016-2023 Ford Mustang A/C Receiver Drier
The total cost depends on whether you're replacing the drier as a standalone job or as part of a larger repair, like a compressor or evaporator replacement. The labor cost primarily covers the evacuation and recharge of the A/C system.
| Part/Service | Estimated Cost |
|---|---|
| OEM Motorcraft Receiver Drier | $40 - $50 |
| Aftermarket Four Seasons Receiver Drier | $38 - $39 |
| Shop Labor (including system evacuation & recharge) | $150 - $300 |
| Total Estimated Cost | $190 - $350 |
Cost estimates are based on national averages and may vary by location and repair shop.
Frequently Asked Questions
Why must the receiver drier be replaced when the A/C system is opened?
The receiver drier contains a desiccant, a material that acts like a sponge to absorb moisture. Once the A/C system is opened and exposed to the atmosphere, this desiccant becomes saturated and can no longer protect the system. Failing to replace it will leave moisture in the system, leading to corrosion and potential failure of the new parts.
Can I replace the A/C receiver drier myself?
This is not recommended for a DIY mechanic without the proper equipment. Replacing the drier requires recovering the refrigerant from the system, installing the new part, pulling a deep vacuum to remove all air and moisture, and recharging the system with the precise amount of refrigerant and oil. 🎬 Watch: How to properly recharge your Mustang's A/C system. This process requires a professional A/C service machine. Attempting to do it without one will result in a poorly performing A/C and likely damage to components.
Is there a recall on the A/C system for my Mustang?
As of late 2025, there are no active NHTSA recalls specifically for the A/C receiver drier or compressor on the 2016-2023 Ford Mustang. The most significant known issue is the TSB for leaking evaporator cores on 2015-2017 models.
What is the difference between a receiver/drier and an accumulator?
They perform the same basic function of removing moisture and storing refrigerant, but are used in different types of A/C systems. Systems with a thermal expansion valve (like your Mustang) use a receiver/drier, located on the high-pressure side after the condenser. Systems with an orifice tube use an accumulator on the low-pressure side. The terms are often used interchangeably, but for your Mustang, the correct component is a receiver/drier.
Helpful Videos
Technical Specifications
OEM Part Numbers: FR3Z-19C836-A
This component is also known as an A/C Accumulator. It is located on the high-pressure side of the A/C system. It contains a desiccant material to absorb moisture and a filter to trap debris.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
