Ford Mustang Ambient Air Temperature Sensor: A Guide for 2016-2023 Models
If your Mustang's outside temperature display is wrong or the automatic A/C is acting strange, your ambient air temperature sensor is the likely cause.
- The most common symptoms of failure are an incorrect temperature display and poor performance from the automatic climate control.
- This is a very easy and inexpensive part to replace yourself, typically located behind the front grille.
- A quality aftermarket sensor from a brand like Standard Ignition is a reliable and budget-friendly option for this repair.
- Check that the sensor is connected after any front-end work, as a disconnected sensor is a common cause of failure codes like P0073.
What is an Ambient Air Temperature Sensor?
Think of the ambient air temperature sensor as your Mustang's own personal thermometer. It's a simple but important part that tells other systems in your car what it feels like outside. This small sensor is usually located at the front of the car, behind the grille, where it can get a good reading of the air. When it works correctly, you get an accurate temperature on your dash and your automatic climate control keeps you comfortable. When it fails, things can get a little weird.
🎬 Watch: How to spot symptoms and test your sensorSymptoms of a Bad Ambient Air Temperature Sensor
A failing AAT sensor usually won't leave you stranded, but it will cause some annoying problems. Here’s what to look for:
- Wrong Temperature on Dash: The most obvious sign is an incorrect temperature reading on your dashboard display. It might be stuck on one temperature, show a reading that is way too high or low, or display dashes.
- Automatic Climate Control Issues: If you use the 'Auto' setting for your A/C or heat, you might notice it doesn't work right. The A/C might not blow cold on a hot day because the car thinks it's cold outside, or the opposite can happen.
- Check Engine Light: A faulty sensor can trigger a Check Engine Light. A common code for this issue on Mustangs is P0073, which indicates a problem with the sensor's circuit. 🎬 See common causes and fixes for the P0073 code This often happens if the sensor is unplugged or damaged during front-end work, like an intercooler installation.
A Note on Temperature Readings
It's normal for the temperature reading to be a little slow to update, especially after the car has been sitting. The system is designed to wait until you're moving to get an accurate reading away from the heat of the engine and pavement. However, if the temperature is consistently wrong or never updates, the sensor is likely bad.
Choosing the Right Replacement Sensor: OEM vs. Aftermarket
For the 2016-2023 Mustang, you have a choice between the original Ford part (Motorcraft) and aftermarket options like Standard Ignition.
- Motorcraft: This is the original equipment (OEM) part that your Mustang came with from the factory. It guarantees a perfect fit and the same performance as the original. If you prefer to stick with factory parts, Motorcraft is the way to go.
- Standard Ignition: Standard is a well-known aftermarket brand that produces reliable replacement parts. For a simple sensor like the AAT, a quality aftermarket part from a brand like Standard is a cost-effective and dependable alternative to the OEM part.
Pro-Tip: Since this sensor is not critical to how the engine runs, saving money with a quality aftermarket brand like Standard Ignition is a smart choice for most owners. The performance difference is negligible for this specific part.
Ford Mustang Ambient Air Temperature Sensor Cost
Replacing the AAT sensor is an inexpensive repair, especially if you do it yourself.
| Part Type | Cost Range |
|---|---|
| New OEM (Motorcraft) | $40 - $60 |
| New Aftermarket (Standard Ignition, etc.) | $26.22 - $38.79 |
| Shop Labor | $50 - $100 |
Frequently Asked Questions
Where is the ambient air temperature sensor located on a 2016-2023 Mustang?
The sensor is located at the front of the vehicle, mounted behind the front grille and in front of the radiator or intercooler. You may need to remove the radiator cover or a small splash shield from underneath to access it.
Can I replace this sensor myself?
Yes, this is a very easy DIY job for most owners. The sensor is held in place by a simple clip or a single small bolt and has one electrical connector. The most challenging part is simply accessing it behind the grille. No special tools are required.
Are there any recalls for this part?
No, there are no specific recalls from Ford or the NHTSA for the ambient air temperature sensor on the 2016-2023 Ford Mustang.
What does the code P0073 mean?
P0073 stands for "Ambient Air Temperature Sensor Circuit High Input". This code is triggered when the car's computer detects a voltage from the sensor that is higher than expected, which usually means the sensor is unplugged, the wiring is damaged, or the sensor itself has failed internally. 🎬 Watch this guide to testing and fixing a P0073 code Mustang owners often report this code after installing aftermarket grilles or intercoolers if the sensor wasn't reconnected properly.
Helpful Videos
Technical Specifications

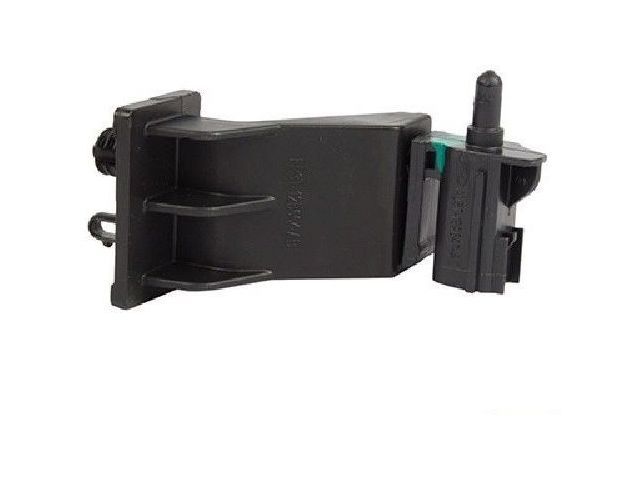

OEM Part Numbers: FR3Z-12A647-B FR3Z19C734B FR3Z19D668A DY1393
Typically a 2-pin sensor that functions as a thermistor, changing its electrical resistance based on the surrounding air temperature.
