A Guide to the 2016-2023 GMC Yukon Door Window Switch
If your power windows are acting up, this guide explains the common failures and how to choose the right replacement switch.
- Failure is common and symptoms include intermittent operation or a single dead window button.
- Replacement is a very easy DIY job that takes less than 15 minutes with a simple pry tool.
- High-quality aftermarket brands like Standard Ignition are reliable and do not require dealer programming.
- There are no open recalls for this part on your Yukon, but service bulletins point to the switch being a known issue for intermittent faults.
Is Your GMC Yukon Window Switch Failing?
A failing door window switch in the 2016-2023 GMC Yukon usually gives clear signs. The most common issue is when one or more windows stop responding to the driver's master control panel. You might find that a specific window won't roll down, or it gets stuck down and won't go back up. Often, the problem is intermittent at first, working one day and not the next.
Common Failure Symptoms:
- One or more windows won't operate from the driver's master switch, but may still work from their individual door switches.
- The driver's window itself stops working, but other controls on the panel are fine.
- Buttons feel loose, sticky, or must be pressed multiple times to work.
- The auto up/down feature stops functioning correctly.
- In rare cases, you might smell a faint burning odor, which could indicate a serious electrical short inside the switch.
No Active Recalls, But Important Service Bulletins Exist
There are no active recalls for the door window switch on the 2016-2023 GMC Yukon. Recalls for window switches getting wet and causing a fire risk were for other GM models and earlier vehicle generations. However, GM has issued Technical Service Bulletins (TSBs) that are relevant:
- TSB 25-NA-022: For some 2023 and newer models, intermittent or inoperative windows may be caused by a faulty internal relay in the switch itself. 🎬 Watch: How to find and check the window switch fuse and relay. The fix is a direct replacement of the switch.
- TSB 21-NA-184: For 2021-2023 models, this bulletin notes that replacing a window motor or regulator may require reprogramming the Body Control Module (BCM) due to different electronic parts being used during production. This is not a switch issue, but it's important to know if your problem is deeper than just the switch.
Choosing the Right Aftermarket Window Switch
When your original switch fails, you have a few options. While you can go to a dealer for a factory part, high-quality aftermarket switches offer a reliable repair for less money. For your Yukon, you'll mainly find two trusted brands.
Brand Tiers:
- ACDelco: As GM's original parts supplier, ACDelco is the closest you can get to the factory switch. They offer "GM Genuine" parts, which are identical to what the dealer sells, and a "Gold" (formerly "Professional") line, which is their high-quality aftermarket offering. An ACDelco switch ensures a perfect fit and finish. However, be aware that some forum users have reported that a new OEM switch may require dealer programming for all functions (like mirrors and locks) to work.
- Standard Ignition (Standard Motor Products or SMP): Standard is a major, well-respected aftermarket manufacturer. Their parts are known for quality and reliability, often meeting or exceeding original specifications. A switch from Standard is a dependable, cost-effective choice that typically does not require any special programming.
Pro Tip: Check for Programming Needs
The biggest question when replacing the master switch is programming. Aftermarket switches from brands like Standard Ignition are designed to be plug-and-play. However, if you opt for a "GM Genuine" OEM switch, there is a chance it may need to be programmed by a dealer or a shop with a high-end scan tool to recognize all your Yukon's features. This can add significant cost to the repair.
Cost of Replacing a GMC Yukon Window Switch
| Part / Service | Estimated Cost |
|---|---|
| New Aftermarket Switch (ACDelco Gold, Standard) | $50 - $105 |
| New OEM Switch (GM Genuine) | $100 - $180 |
| Shop Labor | $40 - $65 |
| Total DIY Cost (Aftermarket) | $50 - $105 |
| Total Shop Cost (Aftermarket) | $90 - $170 |
Frequently Asked Questions
Is replacing the window switch a DIY job?
Yes, absolutely. Replacing the driver's door window switch is one of the easiest repairs you can do. It typically requires only a plastic trim removal tool or a flathead screwdriver. The switch panel pops out of the door, you disconnect the wiring, plug in the new switch, and snap the panel back into place. The entire job takes less than 15 minutes.
Does a new window switch need to be programmed?
Most aftermarket switches from brands like Standard Ignition are designed to be plug-and-play with no programming needed. However, some owners report that genuine OEM switches sometimes require programming by a dealer to make all functions (mirrors, locks, etc.) work correctly. If you want to avoid this potential cost and hassle, a high-quality aftermarket part is a safe bet.
After I replace the switch, my 'auto-down' doesn't work. What's wrong?
Nothing is wrong. The system just needs to be recalibrated. After installing the new switch, turn the ignition on. Roll the driver's window all the way down and hold the button for 5 seconds. Then, roll the window all the way up and hold the button for 5 seconds. This should restore the auto up/down function.
🎬 Watch this quick walkthrough to reset your auto window function.Can I just clean the old switch instead of replacing it?
Some people have success disassembling the switch and cleaning the internal contacts with electrical contact cleaner. This can sometimes fix issues caused by dirt or minor corrosion. However, it's a delicate process, and the fix may not last. Given the low cost of a new aftermarket switch and the ease of replacement, swapping it for a new part is usually the more reliable, long-term solution.
🎬 See how to clean and repair your old switch for free.Helpful Videos
Technical Specifications
OEM Part Numbers: 84529394 84089235 23427098

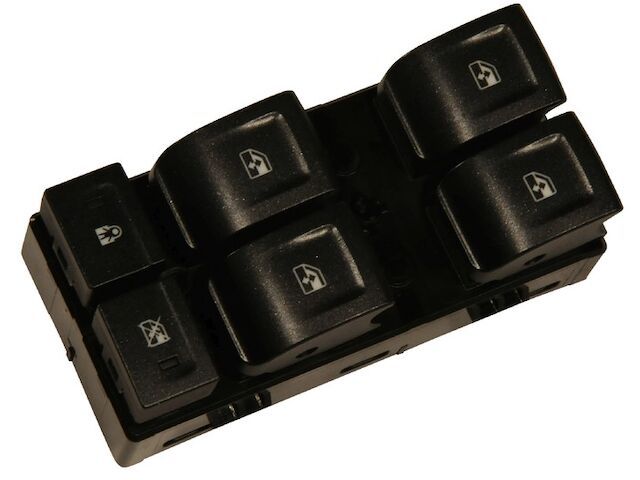

Driver side master control switch assembly. Includes controls for all four windows, power door locks, power mirrors, and window lockout.
