A Guide to Replacing the Ignition Coils on a 2016-2023 Mazda CX-9
Keep your CX-9's turbo engine running smoothly by understanding when and how to replace a failing ignition coil.
- A flashing check engine light indicates a severe misfire; stop driving immediately to prevent catalytic converter damage.
- Replacement is a DIY-friendly job, but accessing the two middle coils requires removing a small bracket.
- Always replace spark plugs (every 40,000 miles) when replacing coils to ensure longevity and performance.
- While no ignition coil recalls exist for the CX-9, misfire symptoms can sometimes be caused by other issues like a known EGR valve problem covered by a TSB.
Symptoms of a Failing Ignition Coil
When an ignition coil starts to fail on your CX-9, the signs are usually noticeable. Because you're losing the spark needed for proper combustion in one of the cylinders, the engine's performance will suffer. You should get the issue checked out soon to avoid damaging other parts, like your catalytic converter.
Flashing Check Engine Light: A Serious Warning
If your check engine light is flashing, it signals a significant engine misfire. You should pull over when it is safe and have your vehicle towed. Driving with a flashing check engine light can cause unburned fuel to enter the exhaust system, which can quickly destroy the expensive catalytic converter.
Choosing the Right Aftermarket Ignition Coil
When replacing a coil, you don't always have to buy the original Mazda part. Several aftermarket brands offer quality replacements. However, not all brands are created equal. For a sensitive turbocharged engine like the one in your CX-9, it's best to stick with reputable brands.
- OEM-Equivalent Brands: Brands like Beck Arnley often source their parts from the same manufacturers that supply Mazda, or they engineer them to match the original specifications for form, fit, and function. This is often a reliable choice that can offer OEM quality at a lower price.
- Reputable Aftermarket: Hella is a well-known German manufacturer of automotive parts, including ignition components. They are generally considered a good quality option that meets or exceeds OEM standards. Karlyn STI is another brand that often uses high-quality components, sometimes from German OE manufacturers like Bremi, for their ignition coils.
- Budget Brands: While many lower-cost options are available, their quality and durability can be inconsistent. Some owners report issues like premature failure or even engine problems after installing cheaper coils. Given the straightforward labor involved, it's wise to invest in a quality part to avoid doing the job twice.
Pro Tip: Replace in Sets?
Ignition coils can be replaced one at a time as they fail. However, since all the coils are the same age and have operated under the same conditions, it's common for another one to fail soon after the first. If your vehicle has higher mileage (over 80,000 miles), it's good preventative maintenance to replace all four coils at the same time, especially if you are also changing the spark plugs.
Installation Overview
Replacing the ignition coils on the 2016-2023 CX-9 is a beginner-friendly job that most owners can do themselves with basic tools. The four coils are located on top of the engine under the plastic engine cover. However, the two center coils (cylinders 2 and 3) are partially covered by a metal bracket that must be unbolted and moved aside for access. Each coil is held in place by a single 8mm bolt.
🎬 Watch: Step-by-step guide to replacing your CX-9 coils and plugs.| Item | Estimated Cost |
|---|---|
| New OEM Ignition Coil (1) | $65 - $95 |
| New Aftermarket Ignition Coil (1) | $53 - $93 |
| Shop Labor (1 coil) | $54 - $79 |
| Total Professional Replacement (1 coil) | $202 - $263 |
Frequently Asked Questions
Are there any recalls for the 2016-2023 CX-9 ignition coils?
No, there are no active recalls for ignition coils on the 2016-2023 Mazda CX-9. Searches of the NHTSA database did not show any recalls related to this specific part and vehicle range.
Is there a Technical Service Bulletin (TSB) for this issue?
While there are no TSBs that specifically name the 2016-2023 CX-9, Mazda did issue a TSB (01-014/16) for other models with Skyactiv engines around 2016 for ignition coil failure due to temperature fluctuations. It identified coils from a specific supplier (YUMEBISHI) as problematic. Another TSB (01-007/21) addresses a rough idle and random misfire code (P0300) caused by an EGR valve software issue, not the coils themselves. If you experience misfires, it's important to diagnose the problem correctly, as it may not always be the coil.
🎬 See what to check if new coils don't fix the misfire.Should I replace my spark plugs at the same time?
Yes, it is highly recommended. Mazda's service interval for spark plugs is every 40,000 miles. Since you have to remove the ignition coils to access the spark plugs anyway, replacing them at the same time saves you from having to do the job again later. 🎬 Watch: How to properly install new spark plugs on Skyactiv engines. Furthermore, a worn or fouled spark plug can put extra stress on an ignition coil, potentially causing it to fail prematurely.
Can I swap coils to diagnose the problem?
Yes, this is an excellent diagnostic trick. If you have a misfire code for a specific cylinder (e.g., P0302 for cylinder 2), you can swap that ignition coil with one from another cylinder (e.g., cylinder 1). Clear the codes and run the engine. If the code changes to P0301, it confirms that the ignition coil is the faulty part and needs to be replaced. If the code stays as P0302, the problem is likely the spark plug, fuel injector, or something else in that cylinder.
Helpful Videos
Technical Specifications
OEM Part Numbers: CY01-18-100B PE20-18-100A PY01-18-100

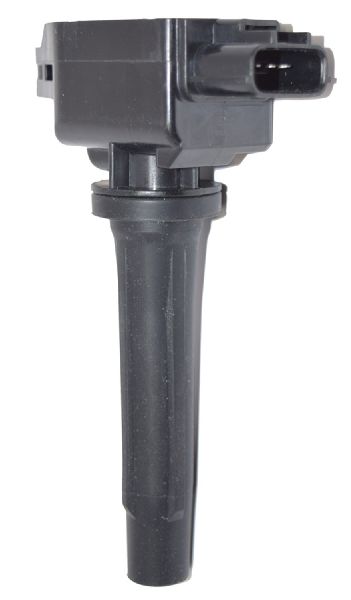

This vehicle uses four individual coil-on-plug units. Each coil is a flush-fitting pencil-type coil held in place by one bolt.
