Mazda CX-9 (2016-2023) Suspension Stabilizer Bar Link Replacement Guide
Hearing a clunk or rattle over bumps? Your CX-9's stabilizer links may be the cause.
- The most common sign of failure is a clunking or rattling noise over bumps.
- Aftermarket brands like Delphi, Moog, Dorman, and Mevotech offer good value and are readily available.
- Always replace stabilizer links in pairs (both front or both rear) to maintain balanced handling.
- A wheel alignment is not necessary after replacing stabilizer bar links.
Is Your CX-9 Making Clunking Noises?
The most common sign of a failing stabilizer bar link on your 2016-2023 Mazda CX-9 is a distinct clunking, rattling, or knocking sound. This noise is usually most noticeable when driving at lower speeds over bumps, uneven roads, or when turning into a driveway. The sound comes from worn-out joints inside the link that have developed excessive play, allowing metal parts to knock against each other. Other symptoms include a feeling of looseness in the steering, increased body roll in turns, and a general sense of instability.
Known Issues and Recalls
While there are no specific recalls for stabilizer bar links on the 2016-2023 CX-9, a recall for the previous generation (2007-2014) 🎬 Watch a step-by-step front sway bar link replacement video. for lower control arms sometimes required the replacement of rusted front sway bar links during the repair. Additionally, Mazda issued a Technical Service Bulletin (TSB #02-005-16-3152A) for early models in this generation regarding a change to grip-type stabilizer bushings to prevent noise, though this relates to the bushings, not the links themselves.
Choosing the Right Aftermarket Stabilizer Link
When replacing stabilizer links, you don't necessarily need to buy expensive original equipment (OEM) parts. Aftermarket brands offer a range of quality and price points that provide excellent value. It is almost always recommended to replace links in pairs (both front or both rear) to ensure balanced handling.
Aftermarket Brand Tiers for Your CX-9
- Premium Brands (e.g., Delphi, Moog): These brands are often considered OE-equivalent or better. Delphi is a known OEM supplier for many manufacturers and is respected for its quality. Moog has a reputation as a "Problem Solver" and often incorporates design enhancements like greasable fittings, which can extend the part's life by allowing you to flush out contaminants. These are excellent choices for longevity and performance.
- Value-Oriented Brands (e.g., Dorman, Mevotech): These brands provide a good balance of affordability and quality for daily driving. Dorman is a popular choice for cost-effective repairs. Mevotech offers different lines, from standard replacement to heavy-duty, and can be a solid option, though quality can sometimes vary between their product tiers.
Pro Tip: Many aftermarket links, especially from brands like Moog, feature built-in wrench flats on the stud. This makes them much easier to install and remove compared to the original parts, which often require using a small hex key that can easily strip, particularly if there is any rust.
🎬 See how to remove a heavily rotted rear stabilizer link.Stabilizer Link Replacement Cost for 2016-2023 Mazda CX-9
The cost to replace stabilizer bar links is reasonable. The parts themselves are affordable, and the labor is straightforward for a mechanic. Below is a general cost estimate.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Link Kit (Pair) | $27 - $69 |
| New OEM Link (Single) | $64 - $70 |
| Shop Labor | $50 - $150 |
| Total Professional Replacement (Aftermarket) | $77 - $219 |
Frequently Asked Questions (FAQ)
Do I need to replace stabilizer links in pairs?
Yes, it is highly recommended. When one link fails, the other has been subjected to the same amount of wear and is likely to fail soon. Replacing them in pairs (both front or both rear) ensures even handling and stability from side to side.
Can I drive with a bad stabilizer bar link?
You can, but it's not recommended for long. While the vehicle is generally safe to drive for short distances, a broken link will cause excessive body roll, reduced stability, and unpredictable handling, especially in emergency maneuvers. It's best to get it replaced soon.
Is a wheel alignment needed after replacing stabilizer links?
No. Replacing the stabilizer bar links does not change your CX-9's primary alignment angles (camber, toe, or caster). You do not need a wheel alignment after this specific repair.
Are the front and rear links the same?
No, the front and rear stabilizer bar links are different parts and have unique part numbers. 🎬 Learn how to replace the rear sway bar links. Be sure to order the correct links for the front or rear axle as needed.
Helpful Videos
Technical Specifications
OEM Part Numbers: KD35-34-170 (Front) TK48-34-170 (Front) TK48-34-150 (Front) L206-34-150A (Rear)

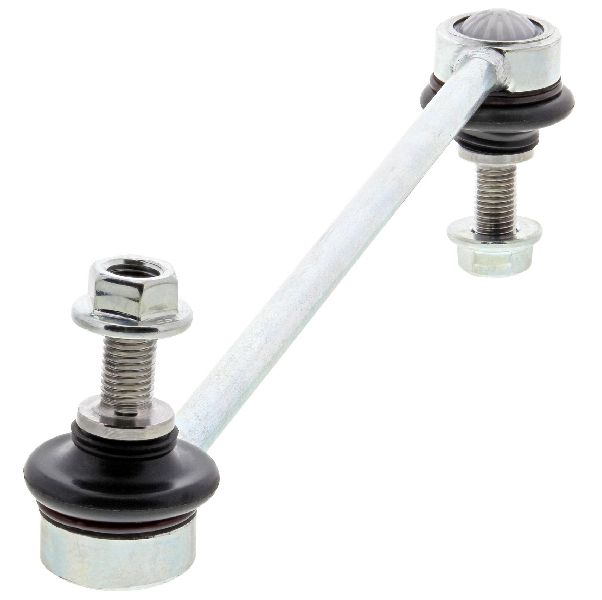

The kit consists of a metal rod with a ball joint at each end. Aftermarket versions may be sealed (maintenance-free) or greasable. Many aftermarket options include wrench flats for easier installation compared to the OEM design.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
