Toyota Prius Brake Light Switch Guide: 2016-2023 Models
Is a faulty brake light switch keeping your Prius from starting? Here’s what you need to know.
- A bad brake light switch is a primary cause for a 2016-2023 Prius not starting.
- Before assuming a dead battery, check if your brake lights work; if not, the switch is the likely problem.
- Driving with a faulty switch is a critical safety risk due to non-functioning brake lights.
- Compare prices; genuine Toyota (OEM) switches can often be purchased online for less than aftermarket brands.
Is Your Prius Dead? It Might Be the Brake Light Switch
If you get in your 2016-2023 Toyota Prius, press the brake, push the POWER button, and nothing happens, your first thought might be a dead battery. But if the dashboard lights up with a message like "Depress brake pedal to start," the problem is often the brake light switch. This small sensor confirms you are pressing the brake, a safety requirement before the hybrid system will engage. When it fails, the car doesn't get the message and refuses to start.
Symptoms of a Failing Brake Light Switch
A bad brake light switch can cause several problems. The first and easiest thing to check is your brake lights. Have a friend stand behind the car while you press the brake pedal.
- No Brake Lights: If none of the brake lights work when you press the pedal, the switch is a likely culprit.
- Brake Lights Stuck On: The switch can also fail in the 'on' position, leaving your brake lights illuminated even when the car is off. This can drain your 12-volt battery overnight.
- Car Won't Start: As mentioned, this is a very common symptom for the Prius. The car thinks you are not pressing the brake and won't enter 'Ready' mode.
- Can't Shift Out of Park: The same safety system, called a shift interlock, uses the brake switch signal to allow you to move the gear selector out of Park.
- Cruise Control Issues: Your cruise control may not turn on, or it might shut off unexpectedly while driving.
- Dashboard Warning Lights: A faulty switch can trigger ABS, VSC, or other brake-related warning lights on your instrument cluster.
Safety First: A Critical Part
Driving without functional brake lights is extremely dangerous and illegal. Other drivers will not know you are slowing down or stopping, which can easily cause a rear-end collision. If you confirm your brake lights are not working, do not drive the vehicle.
Choosing the Right Aftermarket Switch
For the 2016-2023 Prius, the brake light switch is a sensitive electronic part. While many aftermarket parts offer good value, this is a component where quality matters.
Standard Ignition is a well-known aftermarket brand that produces replacement switches. They are generally considered a reliable option and may be more readily available at local auto parts stores. However, it's important to compare costs. In some cases, the price for an aftermarket switch can be similar to or even higher than a genuine Toyota OEM part from an online dealer.
OEM vs. Aftermarket: For a critical sensor on a complex hybrid vehicle, choosing an OEM (Original Equipment Manufacturer) part guarantees perfect fitment and electronic compatibility. If you can wait for shipping, an OEM switch is often the safest bet and may even save you money. If you need the part immediately, a quality aftermarket brand like Standard Ignition is a viable alternative.
| Part Type | Estimated Cost |
|---|---|
| New OEM | $35 - $65 |
| New Aftermarket (Standard Ignition) | $61 - $74 |
| Shop Labor | $75 - $150 |
Pro Tip: Check for Recalls
While searches did not show any specific recalls for the brake light switch on these model years, it's always wise to check. You can enter your vehicle's VIN on the NHTSA website to see any open recalls for your specific car.
Frequently Asked Questions (FAQ)
Can I replace the brake light switch myself?
Yes, this is possible for a DIYer, but it can be challenging. The switch is located above the brake pedal, in a very tight space under the dashboard. On the 2016-2023 Prius, you may need to remove a lower dash panel and potentially loosen the driver's knee airbag assembly to get enough room to work. If you attempt this, you MUST disconnect the 12-volt battery for at least a few minutes before touching any airbag components. The switch itself usually removes with a simple counter-clockwise twist.
How do I know it's the switch and not a fuse?
Always check the simple things first. You can check the brake light fuse in the fuse box. However, if your brake lights are stuck on, it's almost certainly not a fuse. If the car won't start but other electronics work, and you see a "depress brake" message, the switch is the most probable cause.
Are there any warning signs before it fails completely?
Sometimes. You might notice flickering brake lights or intermittent issues with cruise control before the switch fails entirely. Some owners report the problem only happens when it gets cold. However, it can also fail suddenly with no warning.
Why is the aftermarket part more expensive than OEM?
This can happen for a few reasons. The aftermarket price reflects what a local, walk-in parts store charges, which includes their overhead and the convenience of having the part in stock. OEM prices found online are often discounted by high-volume Toyota dealers, but you may have to pay for shipping and wait for delivery. Always compare the total cost before buying.

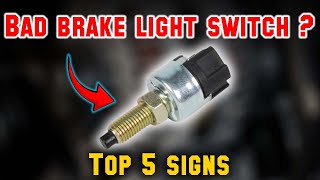

Helpful Videos
Technical Specifications
OEM Part Numbers: 84340-69025 84340-69075 84340-49075 84340-49085 84340-19085
Located on the brake pedal support bracket. Typically a 4-pin electrical connector. Functions as a primary input for ignition, cruise control, and brake light systems.
