An Owner's Guide to the Engine Auxiliary Water Pump for the 2016-2024 Audi A6 Quattro
This small electric pump plays a critical role in your Audi's performance and longevity; ignoring its failure can lead to costly repairs.
- This is an electric pump, separate from the main mechanical water pump, that cools the supercharger (2016-2018) or turbocharger (2019-2024).
- Common failure signs include coolant leaks, a high-pitched buzzing noise, and a P00B7 check engine light code.
- Do not ignore symptoms, as failure can lead to reduced engine power or, in worst cases, engine and turbocharger damage from heat.
- When replacing, choose a high-quality aftermarket brand or OEM part and consider replacing related hoses and clamps at the same time.
Is This a Main Engine Water Pump?
No. This is a secondary, electric pump that supports specific components. The main water pump is a larger, mechanical part driven by the engine's belt that is responsible for overall engine cooling. This auxiliary pump handles targeted cooling tasks for parts like the turbocharger or supercharger, and can also assist with cabin heating. Failure of this pump will not immediately cause the same catastrophic overheating as a main water pump failure, but it can lead to serious issues if ignored.
Symptoms of a Failing Auxiliary Water Pump
A failing auxiliary water pump can show several signs. Being aware of them can help you address the issue before it causes more damage.
- Coolant Leaks: You might find puddles of pink or purple G12/G13 coolant on the ground under your car. The pump housing is plastic and can crack with age, leading to leaks.
- High-Pitched Buzzing Noise: A common symptom is a constant, high-pitched electrical buzzing or whining sound from the engine bay, which may continue for a few minutes after the engine is turned off. This often indicates the pump's electric motor is failing.
- Engine Overheating Light: While less common than with a main water pump failure, a faulty auxiliary pump can cause the engine to overheat, especially in stop-and-go traffic.
- Poor Cabin Heater Performance: You may notice that the heater blows warm air only when the engine is at higher RPMs, but the air turns cool when idling.
- Check Engine Light: A fault in the auxiliary water pump circuit can trigger the check engine light. A common trouble code is P00B7 (Engine Coolant Flow Low / Performance).
Generation-Specific Functions
It's important to know which engine your A6 has. The role of the auxiliary pump differs slightly between the C7 and C8 generations.
- 2016-2018 (C7 Platform): On models with the 3.0T supercharged V6, this pump is critical for cooling the supercharger's intercoolers. 🎬 Watch: How to upgrade your 3.0T supercharger cooling pump. Failure can lead to power loss as the engine computer reduces performance to prevent damage from hot air entering the engine.
- 2019-2024 (C8 Platform): On models with the 2.0T and 3.0T turbocharged engines, this pump primarily serves as an after-run pump to prevent heat damage to the turbocharger after the engine is off.
Choosing the Right Aftermarket Part: OEM vs. Aftermarket
When replacing the auxiliary water pump, you have a few choices. The original OEM pump is a proven part, but high-quality aftermarket options can offer similar performance for less money.
- OEM (Original Equipment Manufacturer): This is the same part your Audi was built with. It guarantees a perfect fit and function but comes at a premium price.

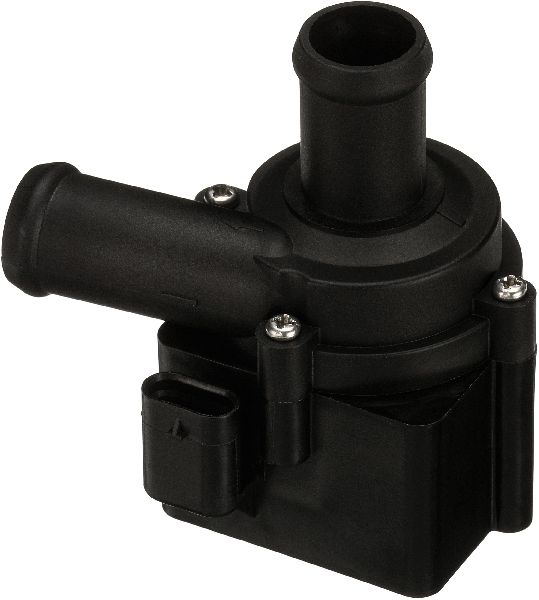

- Premium Aftermarket (e.g., Gates): Brands like Gates are known for producing parts that meet or exceed OEM specifications. They often provide an excellent balance of quality and value, sometimes with features like a lifetime warranty, making them a smart choice for a reliable repair.
- Standard Aftermarket (e.g., Four Seasons): These brands offer a direct-fit replacement at a more budget-friendly price. They are a good option for drivers looking for a cost-effective solution, though they may have shorter warranty periods (typically 12 months) compared to premium brands.
Pro Tip: Given that the original part is made of plastic and prone to leaking over time, choosing a quality replacement from a reputable brand like Gates is a wise investment to avoid doing the job twice.
Known Issues, Recalls, or TSBs
While there was a recall for the auxiliary water pump on earlier A6 models (specifically the 2012-2015 2.0T), searches of the NHTSA database and technical service bulletins did not show any active recalls for this specific part on the 2016-2024 Audi A6 Quattro. However, the failure of these plastic electric pumps is a well-documented issue across many Audi models.
Cost of Replacing the Audi A6 Quattro Auxiliary Water Pump
The total cost will depend on the part you choose and local labor rates. The job is moderately difficult and can be done by an experienced DIYer, but many owners will opt for a professional mechanic.
| Part Type | Estimated Part Cost |
|---|---|
| New OEM | $215 - $330 |
| New Aftermarket (Four Seasons, Gates) | $103 - $210 |
| Used OEM | $40 - $120 |
| Shop Labor | $120 - $300 |
Frequently Asked Questions (FAQ)
What is the difference between the main and auxiliary water pump?
The main water pump is a large, mechanical pump driven by the engine's belt to handle primary engine cooling. The auxiliary pump is a smaller, separate electric pump that cools specific components like the turbo/supercharger or helps with cabin heat, often running even when the engine is off.
Can I still drive my Audi with a bad auxiliary water pump?
You can drive for short distances, but it is not recommended. Depending on its specific function in your engine, continuing to drive could lead to reduced engine power (limp mode), engine overheating in traffic, or long-term damage to the turbocharger.
Why is my car making a buzzing noise after I turn it off?
A buzzing or whining noise that continues after the engine is shut down is a classic sign of a failing electric auxiliary water pump. The pump is supposed to run for a short period to cool components, but a failing motor can become excessively loud.
Is a small coolant leak from this pump a serious problem?
Yes. Any coolant leak should be addressed immediately. A small leak can quickly become a large one, leading to low coolant levels and potential engine overheating. It's best to replace the pump as soon as a leak is confirmed.
Helpful Videos
Technical Specifications
OEM Part Numbers: 06H121601N 06H121601M 4H0965569A 5Q0965561B

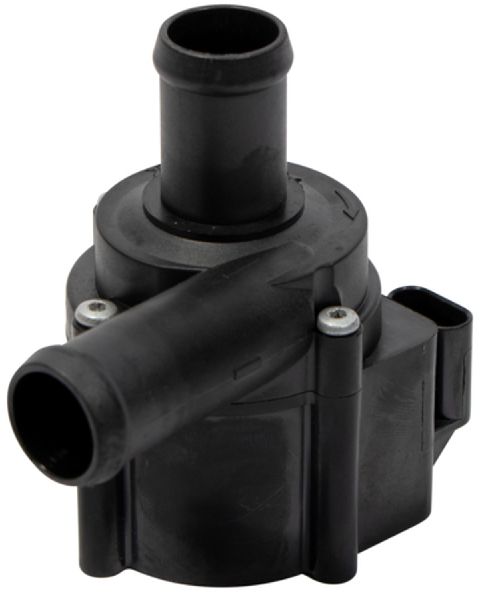

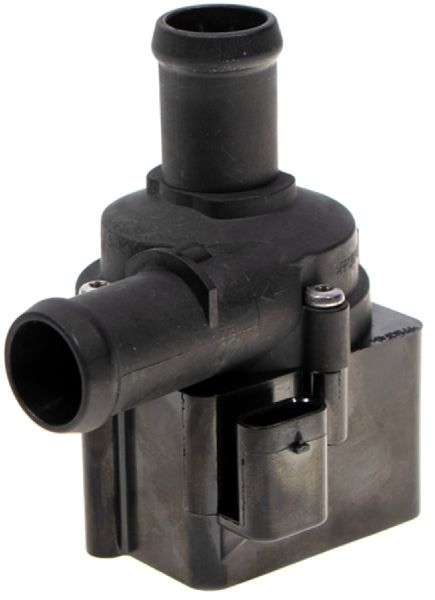

This is an electrically powered pump, typically constructed with a plastic housing and impeller. It operates independently of the main engine belt and is controlled by the Engine Control Module (ECM). It uses a 2 or 3-pin electrical connector.
