A Complete Guide to the Serpentine Belt on the 2016-2024 BMW M2
Understanding your M2's serpentine belt is key to preventing sudden breakdowns and costly engine repairs.
- Oil leaks from the oil filter housing gasket (OFHG) are a common and critical issue on N55/S55 engines that can destroy the belt and lead to severe engine damage.
- Always replace the belt tensioner(s) and idler pulley(s) when replacing the serpentine belt to ensure longevity and prevent failure.
- The S55 engine in the M2 Competition/CS uses two belts that should both be replaced together.
- High-quality aftermarket brands like Continental and Gates are OEM-equivalent and offer excellent value and reliability.
Signs of a Failing Serpentine Belt
A failing serpentine belt will almost always give warning signs before it breaks. Being aware of these symptoms can save you from being stranded and prevent more severe damage.
- Squealing or Chirping Noises: This is the most common symptom. A high-pitched squeal or a chirping sound from the engine bay, especially on startup or when the A/C is turned on, often points to a worn or misaligned belt.
- Visible Wear and Tear: Modern EPDM belts don't always crack like older rubber belts, but you should still look for signs of wear. Check for fraying edges, missing chunks, shiny or glazed surfaces, or any contamination from fluids.
- Accessory Malfunctions: If your power steering feels heavy (on models with hydraulic steering), your battery light comes on, or your engine temperature starts to rise, it could mean the belt has snapped or is slipping badly.
Known Issue: Oil Leaks and Serpentine Belt Failure on N55/S55 Engines
A significant and well-documented issue for the 2016-2021 M2 (N55 and S55 engines) is the failure of the oil filter housing gasket (OFHG). When this gasket fails, it leaks oil directly onto the serpentine belt and pulleys below. This oil saturation causes the rubber belt to swell, soften, and eventually slip off the pulleys and shred. The real danger is that the shredded belt can be pulled behind the crank pulley and into the engine through the main crank seal. This can clog the oil pump pickup tube, starving the engine of oil and leading to catastrophic failure. Any oil leak in the front of the engine must be addressed immediately to prevent this.
🎬 See how to replace a leaking oil filter housing gasket.Choosing the Right Aftermarket Serpentine Belt
When replacing your M2's serpentine belt, you have several excellent aftermarket options that meet or exceed OEM quality. The original BMW belt is often made by one of these manufacturers.

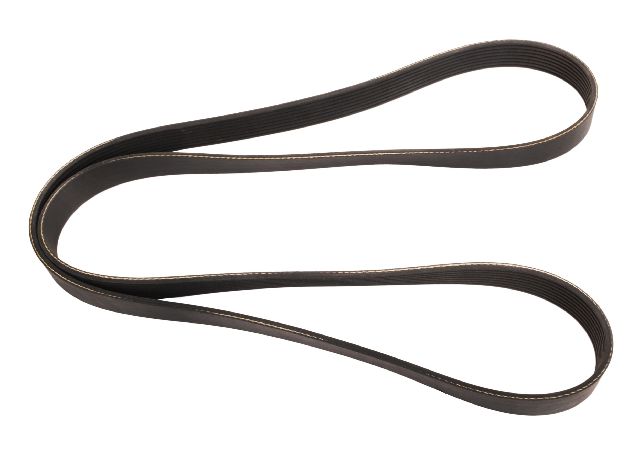

- Continental (ContiTech): Widely regarded as an Original Equipment Manufacturer (OEM) for BMW. Choosing a Continental belt is essentially like buying the genuine BMW part without the dealership markup. They are a top-tier, trusted choice for a direct replacement.
- Gates: Another premium brand with a strong reputation in the BMW community. Gates belts, like their Micro-V line, are known for their durability and performance, sometimes even incorporating design improvements over the original part.

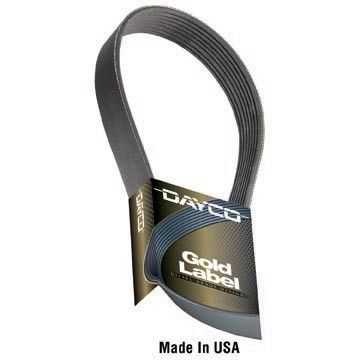

- Dayco: A reliable and cost-effective aftermarket brand. While some mechanics have personal preferences for Continental or Gates, Dayco produces quality belts that are a dependable option for M2 owners.
Pro Tip: Replace More Than Just the Belt
When you replace the serpentine belt, it is highly recommended to also replace the belt tensioner(s) and idler pulley(s). These components contain bearings that wear out over time and are often the root cause of belt failure. A failing pulley or weak tensioner will cause a new belt to wear out prematurely or fly off. For N55/S55 engines, many owners also install a "crank seal guard" as an extra layer of protection to prevent a shredded belt from entering the engine.
🎬 Learn how this simple crank seal guard protects your engine.| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Serpentine Belt | $21.11 - $65.31 |
| New OEM BMW Serpentine Belt | $35 - $60 |
| Shop Labor for Installation | $100 - $220 |
Frequently Asked Questions (FAQ)
How often should I replace my M2's serpentine belt?
There is no strict mileage. A good rule is to inspect it every 30,000 miles and plan for replacement between 60,000 and 90,000 miles. However, due to rubber degradation from heat and ozone, it's also wise to replace the belt if it is more than 5-6 years old, regardless of mileage.
Is an aftermarket belt as good as the original BMW part?
Yes. High-quality aftermarket brands like Continental and Gates are often the original equipment manufacturer for BMW. They provide the same or better quality without the dealership price tag.
My M2 Competition has an S55 engine. Is the belt replacement different?
Yes, it is. The S55 engine in the M2 Competition and M2 CS uses two separate belts: a main accessory belt and a smaller, secondary belt for the water pump. It is critical to order and replace both belts during service.
🎬 Watch: Step-by-step guide for S55 main and water pump belts.Are there any recalls for the BMW M2 serpentine belt?
No, there are no specific recalls issued by the NHTSA for the serpentine belt on any 2016-2024 BMW M2 model. However, a Technical Service Bulletin (TSB) was noted for the G87 M2 regarding the idler pulley bracket material, which could cause bolts to loosen.
Helpful Videos
Technical Specifications
OEM Part Numbers: 11287628661 (for 2016-2018 M2 with N55 engine) 11287848605 (for 2019-2021 M2 Competition/CS with S55 engine - Main Belt) 11287848606 (for 2019-2021 M2 Competition/CS with S55 engine - Water Pump Belt) 11288581628 (for 2023+ M2 with S58 engine)
Material: EPDM (Ethylene Propylene Diene Monomer) Rubber. Type: Multi-Rib (Poly-V). Number of ribs and length vary by engine type (N55, S55, S58).
