Cadillac Escalade Engine Camshaft Position Sensor Guide (2016-2024)
Address common engine problems like stalling and rough idling in your 2016-2024 Escalade by understanding the camshaft position sensor.
- A failing sensor will trigger a Check Engine Light with codes P0340 or P0341 and cause symptoms like rough idle, stalling, or a no-start condition.
- For critical sensors, it is highly recommended to use OEM (ACDelco) or premium OE-supplier brands like Delphi or NTK for the best reliability.
- Before replacing the sensor, inspect the wiring and connector for damage or corrosion, as this can cause identical symptoms.
- Replacement is a straightforward DIY task for those with basic tools, typically taking less than an hour.
Symptoms of a Failing Camshaft Position Sensor
A bad camshaft position sensor can cause significant and noticeable drivability issues. The problems can start intermittently but will typically become more consistent as the sensor degrades. The most common sign is a Check Engine Light on your dashboard.
Common Trouble Codes
If your Check Engine Light is on, a code scanner will likely show one of two codes related to this sensor:
- P0340: Camshaft Position Sensor 'A' Circuit Malfunction. This is a general code indicating a problem with the sensor's circuit, which could be the sensor itself, the wiring, or a poor connection.
- P0341: Camshaft Position Sensor 'A' Circuit Range/Performance. This code means the signal from the sensor is inconsistent or does not match the signal from the crankshaft sensor, pointing to a performance issue.
Choosing the Right Aftermarket Sensor
For critical electronic sensors like the camshaft position sensor, brand quality matters. While many options are available, they generally fall into three tiers. For a high-performance vehicle like the Escalade, choosing a reputable brand is highly recommended to avoid repeat repairs.
Tier 1: OEM & Premium Aftermarket Brands
These brands are either the original equipment manufacturer for General Motors or have a long-standing reputation for producing parts that meet or exceed OEM standards. They offer the best reliability and longevity.
- ACDelco: As GM's official parts brand, this is the true Original Equipment (OE) part. It guarantees perfect fit and function.
- Delphi: Delphi was once part of GM and the original manufacturer for many of its electronic components. It is widely considered an OE-quality equivalent and a trusted choice.
- NGK/NTK: Known for their ignition components, NTK (the sensor division of NGK) is a respected OE supplier with a reputation for high-quality electronics.
- Hitachi: Another major OE supplier for many automakers, Hitachi sensors are known for their reliability.
Tier 2: Quality Aftermarket Brands
These brands provide a balance of quality and value. They are a dependable choice for owners looking for a reliable part without the premium price of an OEM component.
- Standard Ignition (SMP): A well-established brand in the aftermarket that produces a wide range of reliable sensors.
- Walker Products: A long-time manufacturer of fuel and engine management components.
- Dorman: Dorman offers a wide variety of aftermarket parts, often with design improvements over the original. However, reviews can be mixed, with some users reporting success while others have experienced fitment or longevity issues with sensors.
Tier 3: Value Brands
These are budget-focused options. While the low price is appealing, they may not offer the same durability or precise performance as higher-tier brands, potentially leading to issues sooner.
- Global Parts (GPD) & other store brands: These parts meet basic aftermarket requirements but are generally not recommended for critical sensors on a modern, complex engine.
Pro Tip: Before replacing the sensor, always inspect the wiring harness and connector. A loose connection, corrosion, or damaged wire can produce the same symptoms as a failed sensor. Some GM Technical Service Bulletins for similar issues point directly to faulty connector terminals.
Estimated Replacement Costs
The cost to replace the camshaft position sensor can vary based on who performs the work and the brand of part chosen.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Part | $27 - $57 |
| New OEM Part (ACDelco) | $60 - $90 |
| Shop Labor | $140 - $210 |
| Total Professional Replacement | $167 - $300 |
Frequently Asked Questions (FAQ)
Where is the camshaft position sensor located on a 2016-2024 Escalade?
The camshaft position sensor is located on the front of the engine. To access it, you typically need to remove the plastic engine cover and the air intake tube assembly. The sensor is bolted into the front of the engine block, sometimes partially obscured by the power steering pump pulley.
Can I replace the camshaft position sensor myself?
Yes, this is a feasible DIY job for someone with basic mechanical skills and tools. The process involves disconnecting the battery, removing the engine cover and air intake, disconnecting the sensor's electrical plug, and removing a single bolt. The estimated time is under one hour.
How many camshaft position sensors does the Escalade have?
The 6.2L V8 engine in the 2016-2024 Escalade uses one camshaft position sensor. Trouble codes P0340 and P0341 refer to this single sensor, often designated as Sensor 'A'.
What happens if I ignore a bad camshaft position sensor?
Ignoring the problem can lead to worsening symptoms. You may experience frequent stalling, a no-start condition that leaves you stranded, and a significant decrease in fuel economy. While it may not cause immediate catastrophic engine damage, the poor timing can put extra stress on other components over time.

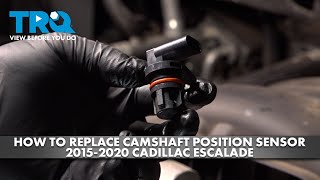

Helpful Videos
Technical Specifications
OEM Part Numbers: 12623093 213-4689
A 3-pin magnetic sensor that reads the camshaft's position and sends a signal to the ECM. Located on the front of the engine.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
