Chevrolet Trailblazer Mass Air Flow Sensor: A 2021-2024 Guide
Diagnosing and replacing the Mass Air Flow (MAF) sensor on your modern Trailblazer.
- This guide is for the 2021-2024+ North American Trailblazer, not the pre-2010 model.
- Before replacing the sensor, check for a broken wire in the harness as described in TSB 22-NA-008.
- Cleaning the sensor with dedicated MAF cleaner is a valid first step and may solve the issue.
- Aftermarket brands like Standard Ignition and Walker Products are reliable, cost-effective alternatives to OEM.
A Note on Vehicle Years
This guide covers the modern Chevrolet Trailblazer sold in North America, which was introduced for the 2021 model year. If your vehicle is a 2009 or older model, it is a different, larger SUV, and this information does not apply.
Symptoms of a Failing MAF Sensor
When a MAF sensor starts to fail, your Trailblazer's computer gets bad information. This can cause a variety of noticeable problems. You might 🎬 Watch: Common symptoms of a failing mass air flow sensor experience a rough idle, poor acceleration, or even engine stalling. Your fuel economy will likely get worse, and the Check Engine Light will almost certainly come on.
Known Issues for the 2021-2024 Trailblazer
For this specific generation of Trailblazer, the MAF sensor itself does not appear to be a common failure point yet. However, there is a known wiring issue you should check first.
Check This Before Replacing the Sensor: General Motors issued Technical Service Bulletin (TSB) 22-NA-008 for the 2021-2022 Trailblazer. It warns that a zip tie on the wiring harness near the MAF sensor may be too tight. This can cause a wire to break, leading to MAF sensor error codes (like P0101 and P0102), a check engine light, and a "Reduced Engine Power" message. Before buying a new sensor, carefully inspect the wiring harness leading to the sensor for any breaks or damage, especially near the retainers. 🎬 See this explanation of P0101 and P0102 error codes Wiggling the harness while the engine is running may help identify a broken wire. This is a wire repair, not a sensor replacement.
Choosing the Right Aftermarket MAF Sensor
If you've ruled out wiring issues and cleaning the sensor didn't work, a replacement is the next step. While the OEM AC Delco part is an option, aftermarket brands offer comparable quality for a similar or lower price.
- Standard Ignition (SMP): A well-regarded aftermarket brand that produces 100% new, not remanufactured, sensors. They are computer-tested to ensure they provide accurate airflow readings that match the original specifications.
- Walker Products: Another established brand specializing in engine management and emission control parts. They engineer their sensors to meet or exceed OE performance and are a reliable choice for a cost-effective repair.
Pro Tip: There are two different MAF sensor designs used on these vehicles. One has a single sensor element, and the other has a dual-sensor design. Always verify the part number or use your vehicle's VIN to ensure you are purchasing the correct replacement for your specific engine and model year.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Standard, Walker) | $95 - $102 |
| New OEM (AC Delco) | $55 - $110 |
| Remanufactured OEM | $130 - $180 |
| Shop Labor | $50 - $100 |
Frequently Asked Questions
Can I clean my Trailblazer's MAF sensor?
Yes, and you should try this first. Sometimes, dirt and oil from the air filter can contaminate the sensor's delicate wires. Purchase a dedicated MAF sensor cleaner spray. Never touch the sensor wires with your fingers or a tool. Let it dry completely before reinstalling. If cleaning solves the problem, it's also a good idea to replace your engine air filter.
Where is the MAF sensor located on the Trailblazer?
The MAF sensor is located in the engine bay, on the air intake tube between the air filter housing and the engine's throttle body. It is a small plastic part held in place by two screws with an electrical connector plugged into it.
Is this a difficult repair to do myself?
No, this is a very easy repair for a DIYer. You will likely only need a screwdriver or a small socket set. The entire process of unplugging the connector, unscrewing the old sensor, and installing the new one should take less than 15 minutes.

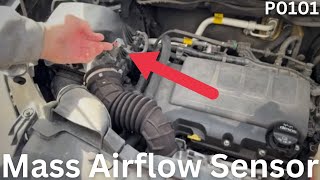

🎬 Watch: A quick walkthrough of the sensor replacement processWhat happens if I don't replace a bad MAF sensor?
You can continue to drive the vehicle, but it's not recommended for long. A bad MAF sensor will cause poor engine performance, terrible gas mileage, and increased emissions. In some cases, it can cause the engine to stall unexpectedly, which can be a safety risk.
What is TSB 22-NA-188?
This TSB is for technicians. It notes that GM used different MAF sensor designs and that if the Engine Control Module (ECM) is ever replaced, it must be programmed with the correct calibration to match the specific MAF sensor in the vehicle. This is not something an owner needs to worry about unless they are also replacing the ECM.
Helpful Videos
Technical Specifications
OEM Part Numbers: 55505735 12714453 12729015 12711405 12671620

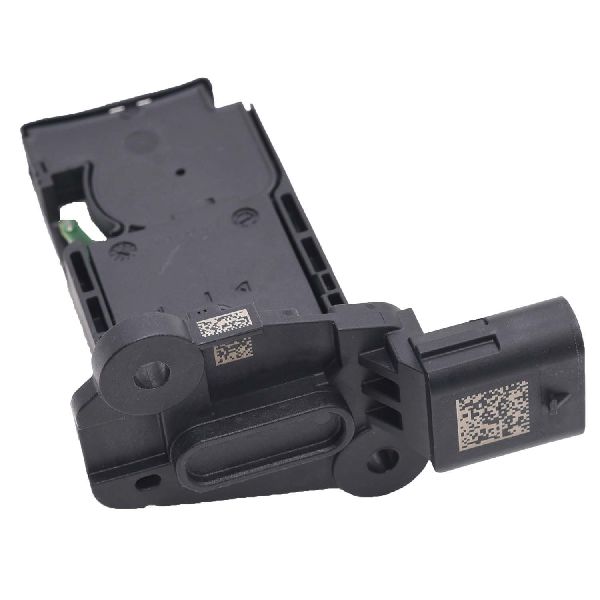

Fits 2021-2024 Chevrolet Trailblazer with 1.2L or 1.3L 3-cylinder engines. The sensor is a new, bolt-on plastic assembly with a single oval-shaped female connector. Note that different designs (single vs. dual element) exist, so part number verification is crucial.
