Lexus RC300 Engine Oil Pressure Switch Guide (2016-2024)
Understanding the oil pressure warning light in your RC300 and how to choose the right replacement switch.
- An oil pressure warning light is a critical alert; stop driving immediately to prevent engine damage.
- You must know if your RC300 is RWD (2.0L Turbo I4) or AWD (3.5L V6) to get the correct part.
- High-quality aftermarket brands like Beck Arnley or Standard Ignition offer reliable performance for less than OEM parts.
- There are no active recalls for this specific part; failures are typically due to age and use.
Is Your RC300's Oil Pressure Light On?
An illuminated oil pressure light on your Lexus RC300 dashboard is one of the most serious warnings you can see. It means the engine's oil pressure has dropped to a dangerously low level. The first step is to immediately and safely pull over, shut off the engine, and check your oil level. If the oil level is correct, the problem could be the oil pressure switch itself.
Common Failure Symptoms
A failing oil pressure switch can show several signs:
- Oil Pressure Light On: The light stays on even when the oil level is full.
- Flickering Oil Light: The light may flicker, especially at idle or when the engine is hot. This can indicate a faulty switch or a more serious internal engine problem.
- Visible Oil Leak: The switch itself can develop a leak. You may see oil residue on or around the sensor, or drips on the ground. A leak from the switch's body or electrical connector is a definite sign of failure.
RWD vs. AWD: A Critical Difference
Before buying a part, you must know which engine your 2016-2024 RC300 has, as it determines the part you need.
- Rear-Wheel Drive (RWD) models have the 2.0L Turbocharged 4-Cylinder engine (8AR-FTS).
- All-Wheel Drive (AWD) models have the 3.5L V6 engine (2GR-FKS).
The oil pressure switch is located in different places on these engines. On the V6, it is typically found on the oil filter housing assembly. 🎬 See this walkthrough for replacing the switch on a Lexus V6 Always confirm the part fitment for your specific model using your vehicle's VIN.
Choosing the Right Aftermarket Switch
For a part like this, you don't necessarily need to pay dealer prices for an OEM part. A high-quality aftermarket switch can be a reliable and affordable option. Here’s a look at the available brands:
- Top Tier (OEM Equivalent): Brands like Beck Arnley and Standard Ignition (SMP) have a strong reputation. Beck Arnley often sources parts from the same manufacturers that supply Lexus, while Standard is a long-standing, trusted name in automotive electronics. These are excellent choices for peace of mind.
- Reliable Alternatives: Brands like Holstein and Facet offer a good balance of quality and value. They are established manufacturers of automotive sensors and provide a dependable replacement for the original part.
- Value-Oriented: Brands like Global Parts are often more budget-friendly. While they can be a good option for a tight budget, ensure the part comes with a good warranty.
Cost to Replace the Engine Oil Pressure Switch
Replacing this switch is one of the more affordable repairs you can perform on a Lexus.
| Part / Service | Estimated Cost |
|---|---|
| New Aftermarket Switch | $14 - $30 |
| New OEM (Lexus) Switch | $40 - $60 |
| Shop Labor | $60 - $120 |
| Total Estimated Cost | $74 - $150 |
Costs are estimates and can vary by location and repair shop.
Frequently Asked Questions
Where is the oil pressure switch located on the RC300?
The location depends on your engine. On the 3.5L V6 (AWD models), the switch is located on the oil filter housing, accessible from underneath the vehicle. On the 2.0L Turbo I4 (RWD models), it is typically screwed into the engine block, also accessed from below. You will need to remove the underbody splash shield to see it.
Is this a difficult DIY job?
For a DIYer with the right tools, this is a relatively easy job. It requires safely raising and supporting the vehicle, locating the sensor, disconnecting the wire, and using a special deep socket to remove it. Be prepared for a small amount of oil to drip out.

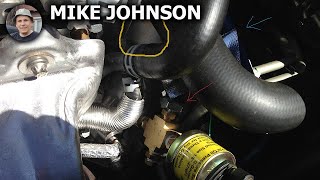

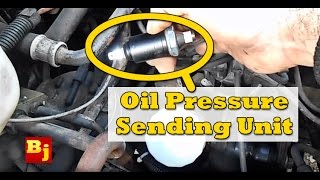

🎬 Watch: A step-by-step guide to changing your oil pressure sensorWhat do engine codes like P0520 or P0523 mean?
Diagnostic Trouble Codes (DTCs) from P0520 to P0524 are specific to the Engine Oil Pressure Sensor/Switch Circuit. For example, P0520 indicates a general circuit malfunction, while P0523 might indicate high voltage. These codes strongly point to a problem with the sensor or its wiring and are not something to ignore.
🎬 Watch: Understanding P0520 and oil pressure circuit malfunctionsAre there any recalls for the RC300 oil pressure switch?
No. Searches of the National Highway Traffic Safety Administration (NHTSA) database show no recalls or technical service bulletins (TSBs) for engine oil pressure switch failure on the 2016-2024 Lexus RC300. Failures are considered normal wear and tear.
Helpful Videos
![How to Fix P0520 Engine Code in 4 Minutes [2 DIY Methods / Only $6.92]](https://img.youtube.com/vi/BgVFr_19gZY/mqdefault.jpg)
Technical Specifications
OEM Part Numbers: 83530-0E010 83530-28020 83530-60020
The oil pressure switch is a single-pin or multi-pin electrical sensor that acts as a switch, closing or opening a circuit based on a pre-set pressure threshold. It is crucial to verify the correct part number for your RC300's specific engine (2.0L I4 or 3.5L V6) using your VIN, as the part may differ.
