Ford Mustang Disc Brake Hardware Guide (2016-2025): Replacing Clips and Pins
Don't let worn-out brake hardware ruin your new pads—here's what every S550 and S650 Mustang owner needs to know.
- You must correctly identify your Mustang's brake system (Standard, 4-Piston, or 6-Piston Brembo) before ordering, as the hardware is not interchangeable.
- Always replace the disc brake hardware kit when you replace your brake pads to ensure quiet operation and even wear.
- For Performance Package Brembo brakes, aftermarket hardware kits offer significant cost savings compared to expensive OEM parts.
- Properly lubricating all slide pins and hardware contact points is essential to prevent seizing and noise.
Is It Time for New Brake Hardware?
Old, rusted, or weak brake hardware can cause problems that are often mistaken for bad pads or rotors. Because it's a low-cost part, it's always recommended to install a new hardware kit whenever you service your brakes. Watch for these symptoms that point to failing brake hardware.
- Squealing or Rattling: When anti-rattle clips lose their tension, brake pads can vibrate, creating a high-pitched squeal or a rattling noise, especially over bumps or during light braking.
- Brakes Dragging: Corroded or seized guide pins can prevent the brake pads from moving away from the rotor after you release the pedal. This causes a dragging sensation, premature pad and rotor wear, and excessive heat. 🎬 See how to clean and lubricate sticking caliper slide pins.
- Uneven Pad Wear: If slide pins are stuck, one pad can wear out much faster than the other because it's doing all the work. Inspecting your old pads can tell you a lot about the health of your hardware.
- Vehicle Pulling to One Side: A seized caliper pin or slide can cause the brake on one wheel to stick, making your Mustang pull to the left or right when you apply the brakes.
Identify Your Brakes Before You Buy: Standard vs. Brembo
The single most important step is to correctly identify your Mustang's brake system. Hardware is NOT interchangeable between base models and Performance Package models. Ordering the wrong kit is the most common mistake.
- Standard Brakes (Non-Performance Pack): Found on most EcoBoost and V6 models. The GT models from 2015-2017 without the Performance Pack used a 4-piston front caliper.
- 4-Piston Performance Pack Brakes: Found on EcoBoost Performance Pack models and standard on all 2018+ non-PP GTs.
- 6-Piston Brembo Brakes: Found on GT models with the Performance Package (PP1/PP2), Bullitt, and Mach 1. These require a specific hardware kit that often includes guide pins and bridge bolts. 🎬 Watch: Step-by-step guide to installing pads on Brembo calipers.
Choosing the Right Aftermarket Hardware Kit
For the 2016-2025 Mustang, aftermarket hardware offers quality that is often identical to OEM, but at a much lower price. This is especially true for the 6-piston Brembo calipers, where OEM hardware can be very expensive. The brands available offer reliable performance for daily driving and spirited street use.
Brand Quality Tiers
- Standard Replacement (Good): Brands like Carlson, Centric, and Raybestos are widely available and considered dependable OEM-equivalent options. Forum users often group them as being of similar, reliable quality for daily use. Raybestos, in particular, is often seen as a solid upgrade over stock components.
- Enhanced Replacement (Better): Dynamic Friction (DFC) is often noted for using higher-quality materials, such as more stainless steel components compared to the zinc-plated steel found in other standard kits. This can provide better corrosion resistance.
- Widely Available (Good): Dorman is a well-known aftermarket manufacturer that produces a wide range of parts, including reliable brake hardware kits that meet OEM specifications.
Pro Tip: Always apply a thin layer of high-temperature brake grease to the caliper slide pins and the contact points where the clips touch the caliper bracket and brake pads. This ensures quiet, smooth operation and prevents seizing. Do not apply grease to the face of the brake pad or rotor.
🎬 Watch: How to properly apply grease to stop brake squeaks.Known Vehicle-Specific Issues
- Brake Squeal TSB (Early Models): Ford issued Technical Service Bulletin (TSB) 15-0030 for brake squeal on some 2015 Mustangs built before February 11, 2015. This applied to non-PP GTs and EcoBoost PP models with 4-piston calipers. The fix was a replacement of pads and rotors. This TSB does not apply to the 6-piston Brembo brakes.
- Seizing Guide Pins: On Mustangs with Brembo calipers, the main pad guide pins are known to corrode and seize in the caliper body, making brake pad changes very difficult. Replacing these pins with a new hardware kit is highly recommended.
- 2020 Brake Pedal Recall: Ford recalled approximately 38,000 2020 Mustangs with automatic transmissions due to a brake pedal bracket that could fracture under hard braking (Recall 20S52). This is a separate issue from the disc brake hardware but is a critical safety concern for owners of affected vehicles.
| Part Type | Price Range |
|---|---|
| Aftermarket Hardware Kit (Standard Brakes) | $7 - $20 |
| Aftermarket Hardware Kit (Brembo Brakes) | $20 - $40 |
| OEM Hardware Kit (Brembo Brakes) | $75 - $280+ |
Frequently Asked Questions
Do I really need to replace my brake hardware?
Yes. It is highly recommended. The metal clips lose tension from thousands of heating and cooling cycles, and pins can corrode. For a small cost, new hardware ensures your new brake pads work correctly and quietly.
What is the difference between hardware for standard and Brembo brakes?

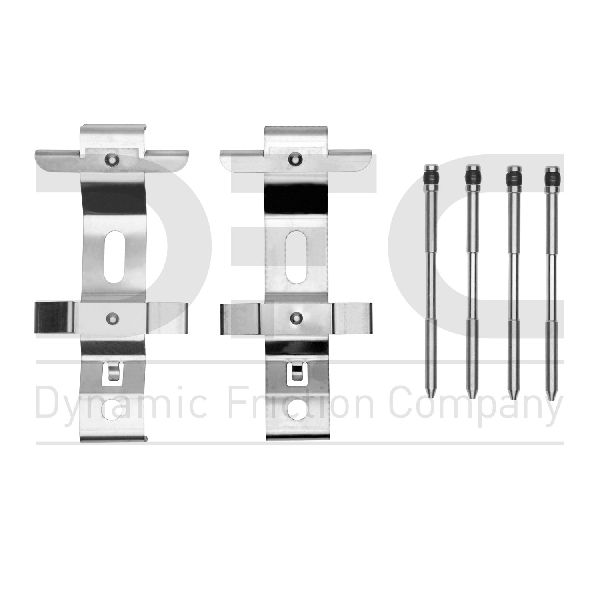

The hardware is completely different. Standard brakes use smaller clips that fit into a caliper mounting bracket. The 6-piston Brembo calipers use long pins that pass through the caliper body and the brake pads, along with a large spring clip on top. They are not interchangeable.
Why are my new brakes still making noise?
If you installed new pads but reused old hardware, the pads may be vibrating in the caliper. Another common cause is not applying high-temperature lubricant to the slide pins and hardware contact points. Finally, new pads require a proper "bedding-in" procedure to mate them to the rotor surface; check the pad manufacturer's instructions.
Does the 2020 brake pedal recall affect the hardware kit?
No. The recall (NHTSA 20V573) is for the brake pedal bracket assembly inside the car on automatic transmission models and is unrelated to the hardware at the wheels. However, if your vehicle is part of the recall, you should have it serviced by a Ford dealer immediately.
Helpful Videos
Technical Specifications

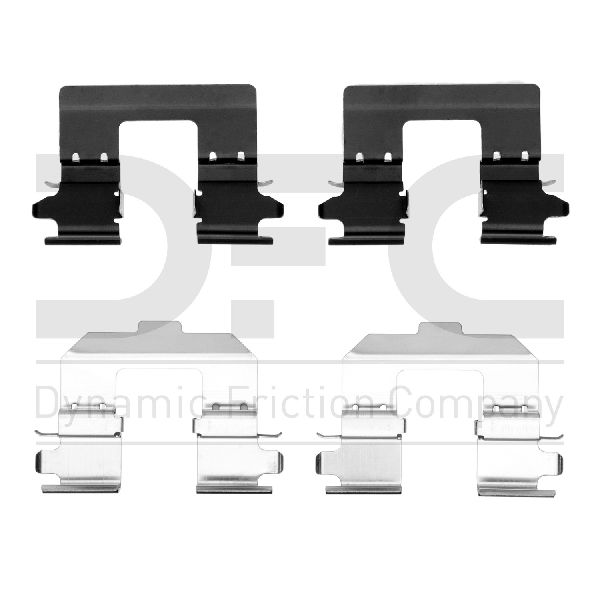

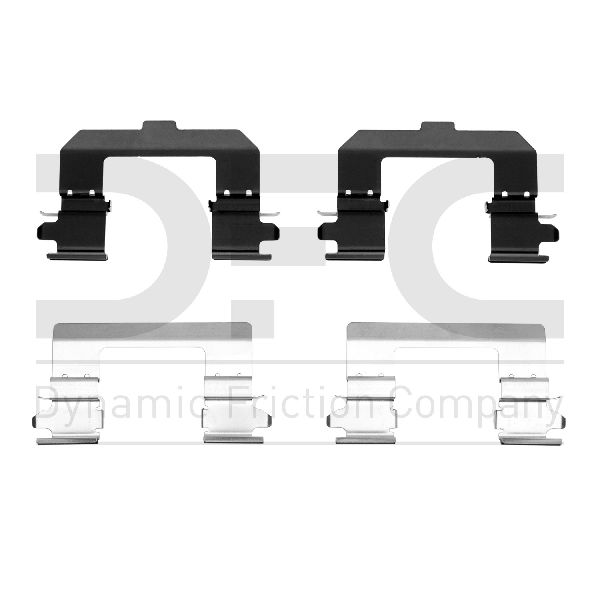

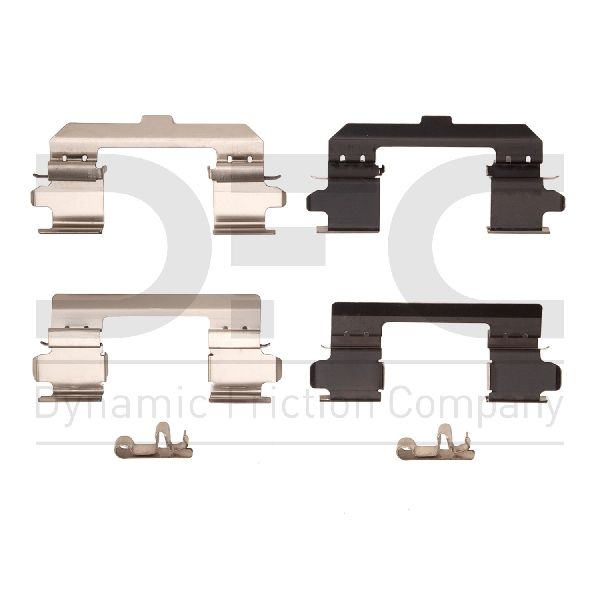

Kit components vary by brake system. Standard kits typically include abutment/anti-rattle clips. Brembo kits include pad guide pins and a top spring clip. All kits are specific to either the front or rear axle.
