A Deep Dive into the 2017-2022 Jeep Compass Automatic Transmission Oil Cooler
Understand the critical role of your transmission cooler and how to choose the right replacement to prevent catastrophic failure.
- The most critical failure is internal, causing coolant and transmission fluid to mix, which can destroy the transmission.
- An overheating warning on the dash is a serious sign that the cooler may be failing and should be addressed immediately.
- There are no specific recalls for the oil cooler, but its failure is a known issue among owners.
- Always verify the correct part for your specific transmission (6-speed vs. 9-speed) using your VIN.
Understanding a Critical Failure Point
For the 2017-2022 Jeep Compass, the automatic transmission oil cooler is more than just a maintenance part; it's a critical component that can prevent catastrophic transmission failure. The most severe issue seen with these coolers is internal failure. When this happens, the barrier between the engine's coolant and the transmission fluid breaks down. This allows the two fluids to mix, creating a contaminated sludge that quickly destroys the sensitive clutches and components inside the transmission. This failure often requires replacing not only the oil cooler but the entire transmission and radiator, leading to a very expensive repair.
Symptoms of a Failing Transmission Oil Cooler
Catching a failing cooler early is key. Watch for these warning signs:
- Transmission Overheating Warning: A message like "Transmission Hot" on your dashboard is the most direct sign of a problem. Your Compass has a menu to check the transmission temperature, which should ideally stay below 210°F. 🎬 Watch: How to check your transmission temperature on the dashboard.
- Leaking Red or Pink Fluid: You may see puddles of reddish transmission fluid under the front of your vehicle. The cooler or its lines may be cracked or damaged.
- Poor Shifting Performance: When the fluid gets too hot, it loses its ability to lubricate properly. This can cause rough shifts, hesitation, or a feeling that the transmission is slipping.
- Milky or Pink Transmission Fluid: If you check your transmission fluid and it looks like a pink milkshake, it's a sign that coolant has mixed with it. This is a critical symptom indicating an internal cooler failure, and you should stop driving the vehicle immediately. 🎬 See these 4 warning signs of a failing transmission cooler.
- Burnt Smell: Overheated transmission fluid can have a distinct burnt toast smell.
Coolant and Transmission Fluid Mixing
If you suspect your coolant and transmission fluid are mixing, do not continue to drive the vehicle. The contamination can ruin your transmission in a very short time. Have the vehicle towed to a repair shop.
Choosing Your Aftermarket Replacement
When replacing your oil cooler, you have several options. It's important to know which transmission you have (6-speed or 9-speed), as the parts may differ.
Brand Tiers
- Mopar (OEM): This is the original factory part. It guarantees a perfect fit and original performance. While it's the most expensive option, it's the benchmark for quality.
- Dorman: Dorman is a well-known aftermarket brand that engineers direct-fit replacement parts. They aim to provide OE-quality at a lower price, often with OE-style connectors for an easier installation.
- Crown Automotive: Crown specializes in replacement parts for Jeep vehicles. They are a reputable choice for parts that are designed to meet OEM specifications.
- Derale: Derale is known for high-performance and auxiliary cooling systems. While they make quality products, their offerings are often universal or designed for heavy-duty use, which may require modification to fit your Compass, unlike a direct-fit part.
Pro Tip: Replace Related Parts
When replacing the transmission oil cooler, it's a good idea to also replace the cooler lines and the fluid. 🎬 Watch: DIY guide for a 9-speed transmission fluid change. If the cooler failed internally, the entire cooling system and transmission system must be professionally flushed to remove all contamination.
Known Issues and Recalls
There are no active recalls from the NHTSA specifically for the transmission oil cooler on the 2017-2022 Jeep Compass. However, there have been numerous Technical Service Bulletins (TSBs) related to transmission software updates to improve shift quality. A NHTSA investigation into engine overheating and shutdowns on 2019-2020 models was closed without a recall.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Cooler | $94 - $403 |
| New OEM (Mopar) Cooler | $225 - $450 |
| Shop Labor | $227 - $334 |
| Total Professional Replacement | $321 - $737+ |
Frequently Asked Questions
Can I still drive with a bad transmission oil cooler?
It is not recommended. If the cooler is leaking, you risk running the transmission low on fluid, causing major damage. If it has failed internally and fluids are mixing, you can destroy your transmission by driving even a short distance.
What's the main difference between OEM and aftermarket coolers?
OEM (Mopar) is the exact part your vehicle was built with. Quality aftermarket brands like Dorman or Crown are designed to be direct replacements that meet or exceed original specifications, often at a lower cost. The main differences come down to brand reputation, materials, and price.
Why is replacing the cooler so important?
Heat is the number one enemy of an automatic transmission. A functioning cooler is the best defense against overheating, which extends the life of your transmission and prevents very costly repairs down the road.
How do I know which cooler to buy for my Compass?
Your 2017-2022 Compass could have a 6-speed or 9-speed automatic transmission, which may use different coolers. It is critical to use your vehicle's VIN to confirm you are purchasing the correct part for your specific year and transmission type.
Helpful Videos
Technical Specifications

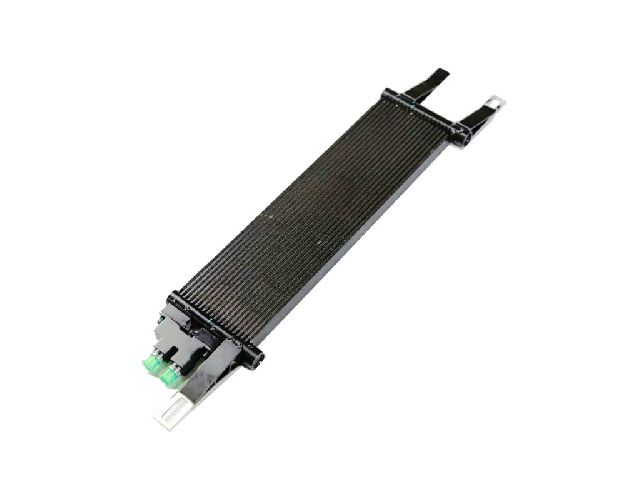

OEM Part Numbers: 68249191AB 68369629AA 68373829AA
The transmission oil cooler for the 2017-2022 Jeep Compass is a fluid-to-fluid heat exchanger, often integrated with or mounted near the main radiator. It uses engine coolant to cool the automatic transmission fluid. Different part numbers exist for the 6-speed (Aisin) and 9-speed (ZF) automatic transmissions.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
