A Guide to Replacing the Disc Brake Calipers on Your 2017-2023 Mazda CX-9
If you're dealing with brake pulling, strange noises, or uneven wear, your CX-9's brake calipers could be the culprit.
- For rear caliper replacement, you MUST use the 'Service Mode' procedure to retract the electronic parking brake before starting work.
- Uneven pad wear, especially between the inner and outer pads, is a primary symptom of a failing caliper on the CX-9.
- New aftermarket calipers from brands like Dynamic Friction offer a reliable, quality alternative to much more expensive OEM parts.
- Due to safety and performance, it is always best practice to replace calipers in pairs (both fronts or both rears).
Is it Time for a New Brake Caliper?
A brake caliper is built to last a long time, but it can fail. The pistons inside can get stuck from corrosion or debris, and the slide pins they move on can seize. On the CX-9, the rear electronic parking brake motor can also fail. Ignoring a bad caliper is a serious safety risk and can cause more expensive damage to your brake pads and rotors.
Known Issues for the 2017-2023 Mazda CX-9
While there are no major recalls for the calipers on these model years, some Technical Service Bulletins (TSBs) and common complaints exist:
- Rear Brake Drag (Early Models): Mazda issued TSB 04-001/18 for early-production 2016 CX-9s for rear brake drag caused by the electronic parking brake not fully releasing. This led to noise and rapid wear of the outer brake pads. While your 2017+ model should have the updated part, this history highlights the rear calipers as a potential trouble spot.
- Front Brake Clicking/Squeaking: TSBs like 04-004/20 address clicking or squeaking from the front brakes. This is usually a brake pad and hardware issue, not a faulty caliper, but it's a common source of brake noise on the CX-9.
- EPB Motor Failure: Some owners have reported failure of the electronic parking brake motor itself, which is attached to the rear caliper. This can cause the brake to stick, leading to overheating, a burning smell, and warning lights on the dashboard.
Choosing the Right Aftermarket Caliper
When replacing a caliper on your CX-9, you have a few options. It's important to understand the difference between OEM and aftermarket quality.
- OEM (Original Equipment Manufacturer): These are the same parts your vehicle came with from the Mazda factory. They are guaranteed to fit and perform correctly, but they are also the most expensive option, often costing over $400 per caliper.
- New Aftermarket: Companies like Dynamic Friction produce brand-new calipers designed to meet or exceed OEM specifications. These are not rebuilt parts. They often include improvements like zinc coatings to prevent rust and are a high-quality, cost-effective alternative to OEM. For many owners, a new aftermarket caliper provides the best balance of quality and value.
- Remanufactured: These are used OEM calipers that have been rebuilt with new seals and pistons. While they can be a budget-friendly choice, their quality can vary. Given that new aftermarket calipers are available at a similar price point, they are often a more reliable choice.
Pro Tip: Replace in Pairs
It is highly recommended to replace brake calipers in pairs (both front or both rear). This ensures even braking performance and feel from side to side. If one caliper has failed due to age, the other is likely not far behind.
The Critical Step: Electronic Parking Brake (EPB) Service Mode
WARNING: Before starting any work on the rear brakes, you MUST put the electronic parking brake into 'Service Mode'. Attempting to push the rear caliper piston back without doing this will damage the internal motor and ruin the caliper. This is the most common and costly mistake made when working on CX-9 rear brakes.
The service mode procedure retracts the EPB motor electronically. Thankfully, you do not need an expensive scan tool. It can be done with a sequence of pedal and button presses:
- Without your foot on the brake, press the engine 'Start/Stop' button twice to turn the ignition ON.
- Press and hold the accelerator pedal all the way down.
- Press and hold the electronic parking brake button DOWN.
- While holding both, press and release the engine 'Start/Stop' button three times within five seconds.
- You should hear the rear brake motors operate for several seconds. The yellow parking brake warning light will illuminate on the dash, confirming you are in service mode.
- Turn the ignition off. You can now safely service the rear brakes.
To exit service mode after the repair is complete, you repeat the process but PULL UP on the parking brake button instead of pushing down.
| Part Type | Estimated Cost |
|---|---|
| New OEM | $440 - $570 |
| New Aftermarket (Dynamic Friction) | $175 - $238 |
| Used OEM | $100 - $160 |
| Remanufactured | $80 - $150 |
| Shop Labor | $250 - $400 |
Frequently Asked Questions
Do I need a special tool to replace the rear calipers?
While you don't need a proprietary scan tool, you will need standard brake service tools, including a tool to compress the caliper piston (after putting it in service mode). For the rear calipers, the piston must be pushed straight back; it does not need to be rotated. You will also need to bleed the brakes after installation, which may require a second person or a brake bleeding tool.
Should I get a 'loaded' or 'unloaded' caliper?
An 'unloaded' or 'semi-loaded' caliper is just the caliper body, sometimes with the mounting bracket and hardware. A 'loaded' caliper comes complete with new brake pads already installed. If your pads and rotors are also due for replacement, a loaded caliper can save time, but it gives you less choice in the brand of brake pads you use.
What are the symptoms of a sticking rear EPB motor?
A sticking rear electronic parking brake can cause a dragging sound, a hot wheel, a burning smell after driving, and very rapid, uneven wear on the rear brake pads. You may also get a 'Parking Brake System Malfunction' warning light on your dashboard.
Can I just replace the EPB motor instead of the whole caliper?
Yes, the electronic parking brake motor/actuator can often be purchased and replaced separately from the caliper. However, if the caliper piston or slide pins are also sticking, or if the caliper is old, it is often more effective to replace the entire caliper assembly which includes a new motor.

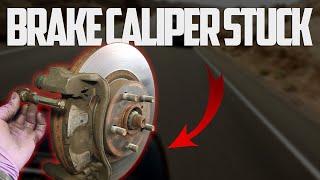

Helpful Videos
Technical Specifications
OEM Part Numbers: TKY8-33-98ZA (Front Right) TKY8-33-99ZA (Front Left) KA0G-26-8EXA (Rear EPB Actuator)
The 2017-2023 Mazda CX-9 uses single-piston sliding calipers on both the front and rear axles. The rear calipers are integrated with an electronic parking brake (EPB) motor that must be electronically retracted for service.
