Guide to the 2017-2025 Silverado 3500 HD Automatic Transmission Oil Cooler
Everything owners need to know about keeping the transmission cool on your heavy-duty Silverado.
- The most common failure is not the cooler itself, but the lines leaking, especially on 2017-2018 Duramax models where lines can rub against the frame.
- Symptoms include fluid leaks (reddish fluid), transmission overheating warnings (P0218 code), harsh shifting, and a burning smell.
- Driving with a bad cooler is not advised, as low fluid levels can quickly destroy the transmission.
- For heavy towing, consider an upgraded aftermarket cooler (like Mishimoto) for better performance and longevity.
Is Your Transmission Cooler Failing?
A bad transmission cooler can cause serious and expensive damage. Heat is the biggest enemy of an automatic transmission. If you notice any of these signs, it's time to inspect your cooler and its lines.
Known Issue: Leaking Cooler Lines (2017-2018 Models)
General Motors issued a special coverage program (N182188930) for some 2017-2018 Silverado HD trucks with the Duramax diesel engine. The transmission cooler lines could rub against a frame bracket, causing a leak. Symptoms include reddish fluid under the front bumper, difficulty shifting, or transmission slipping. While the special coverage was for 6 years/72,000 miles, it highlights a known weak point. Even on newer models or trucks outside the coverage, the cooler lines are a common source of leaks.
Choosing the Right Aftermarket Cooler
When replacing your transmission cooler, you have a choice between standard replacement parts and performance upgrades. Your decision depends on how you use your truck.
- OEM (Original Equipment Manufacturer): This is the part your truck came with from the factory. It provides adequate cooling for stock applications. However, for certain model years, the lines connected to it have a known rubbing issue.

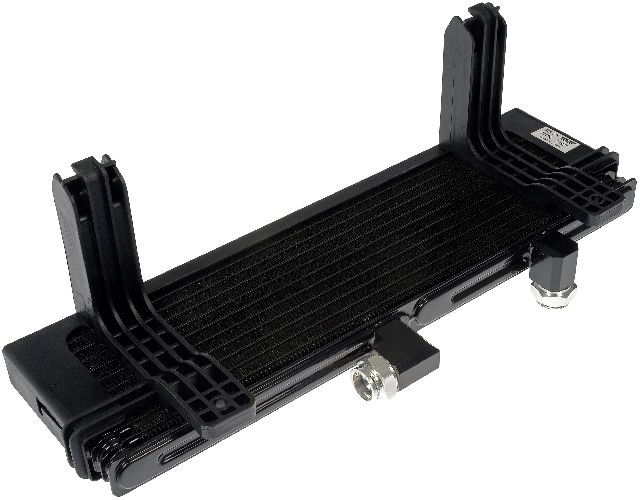

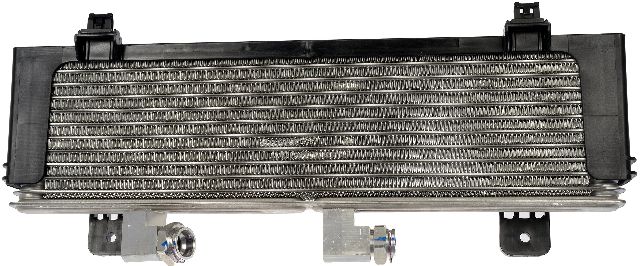

- Aftermarket Replacement (Dorman): Dorman is a common brand for standard, direct-fit replacement parts. These are designed to perform similarly to the original OEM part and are a cost-effective solution for daily driving and light-duty use.

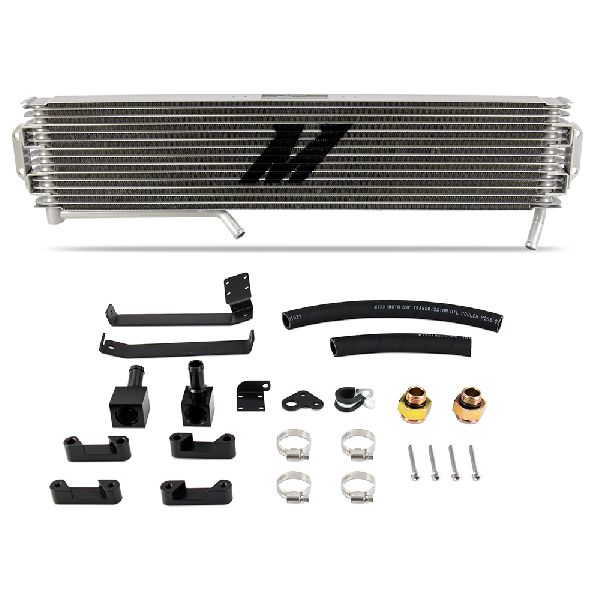

- Aftermarket Upgrade (Mishimoto): Brands like Mishimoto often offer upgraded coolers with larger cores, increased fluid capacity, and more durable construction. These are a smart investment if you frequently tow heavy loads, drive in hot climates, or have modified your truck for more power, as they provide significantly better cooling performance.
Pro Tip: Check the Lines Too
Often, the cooler itself is fine, but the lines leading to it are the source of the leak. This is a known issue on 2017-2018 models. Always inspect the entire system, including the cooler, rubber hoses, and metal lines, before ordering parts. Replacing just the cooler won't fix a leaking line.
Cost of Replacing a Transmission Oil Cooler on a Silverado 3500 HD
| Part Type | Estimated Cost |
|---|---|
| New OEM | $129 - $327 |
| New Aftermarket | $99 - $499 |
| Shop Labor | $175 - $500+ |
Note: Labor costs can vary significantly. Replacing the cooler lines is a labor-intensive job that can take several hours.
Frequently Asked Questions
Do I need to upgrade my transmission cooler?
If you only use your truck for daily commuting, a standard OEM or Dorman-style replacement is usually sufficient. However, if you tow heavy trailers, haul large loads, or live in a hot climate, an upgraded aftermarket cooler from a brand like Mishimoto is a worthwhile investment to protect your transmission from heat damage.
What happens if I keep driving with a bad transmission cooler?
Continuing to drive with a leaking or malfunctioning cooler is not recommended. A small leak can quickly lead to low fluid levels, causing the transmission to overheat, slip, and suffer catastrophic internal damage. An overheating transmission can also put your truck into a reduced power "limp mode."
Is replacing the transmission cooler a DIY job?
For an experienced DIY mechanic, yes. However, the job can be complex. Accessing the cooler and its lines often requires removing the front bumper and grille. The book time for replacing the cooler lines can be around 5-6 hours. If you are not comfortable with this level of work, it is best to leave it to a professional.
Are there any recalls for the transmission cooler on the 2017-2025 Silverado 3500 HD?
There are no formal recalls specifically for the transmission cooler itself. However, GM did issue a Special Coverage program (N182188930) for leaking transmission cooler lines on 2017-2018 models with the Duramax engine due to a rubbing issue. Always check for the latest TSBs (Technical Service Bulletins) as new issues can be identified.
Technical Specifications
OEM Part Numbers: 23395755 84173164 84444069
The automatic transmission oil cooler is a heat exchanger, typically of a plate-and-fin or tube-and-fin aluminum construction, mounted at the front of the vehicle to receive airflow. It connects to the transmission via metal and rubber lines. Some systems include a thermal bypass valve to regulate fluid temperature.
