Porsche Cayenne (2017-2025) Tire Pressure Monitoring System (TPMS) Sensor Guide
Here is what you need to know when the TPMS warning light appears on your Cayenne's dashboard.
- TPMS sensor failure is common after 5-7 years due to battery life.
- Aftermarket Schrader sensors are a high-quality, cost-effective alternative to expensive OEM parts.
- Programmable sensors MUST be programmed by the shop's tool BEFORE installation inside the tire.
- Replacement requires a tire shop to dismount the tire; it is not a simple DIY task.
Understanding TPMS Failures in Your Cayenne
The TPMS sensors in your 2017-2025 Porsche Cayenne are durable, but they don't last forever. The most common reason for failure is simply the internal battery dying. These batteries are sealed inside the sensor and cannot be replaced. They typically have a lifespan of 5 to 7 years. Other causes of failure include physical damage from hitting a pothole, curb, or damage during a tire change. In some cases, the system can experience a software glitch that causes false warnings.
Symptoms of a Failing TPMS Sensor
When a TPMS sensor starts to fail, you'll notice clear signs. The most obvious is the TPMS warning light on your dashboard that won't go away, even after you've checked and corrected your tire pressures. You might also see a message in the vehicle's information center indicating a TPMS malfunction. Other symptoms include:
- The system showing dashes (--) instead of a pressure reading for one or more tires.
- A pressure reading that is clearly incorrect or doesn't change.
- A warning that appears intermittently, which often signals a dying battery.
A Note on Programmable Sensors
The aftermarket sensors available for your Cayenne are often "programmable." This means they are universal sensors that must be configured for your specific vehicle using a special TPMS tool. This programming MUST be done by the tire shop before the sensor is installed in the wheel. Installing an unprogrammed sensor will not work.
Choosing the Right Aftermarket TPMS: OEM vs. Schrader
When it's time for a replacement, you have two main choices: an original equipment (OEM) sensor from a Porsche dealer or a quality aftermarket sensor.
- OEM Porsche Sensors: These are guaranteed to be compatible and are of high quality. However, they come at a significant cost, often multiple times the price of an aftermarket part.

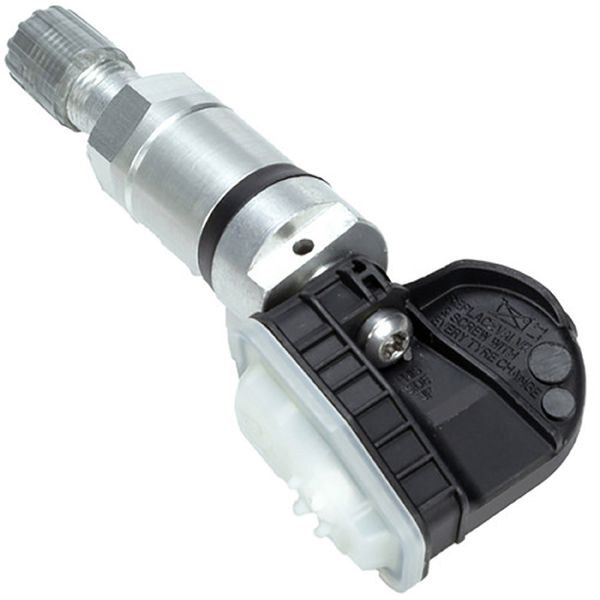

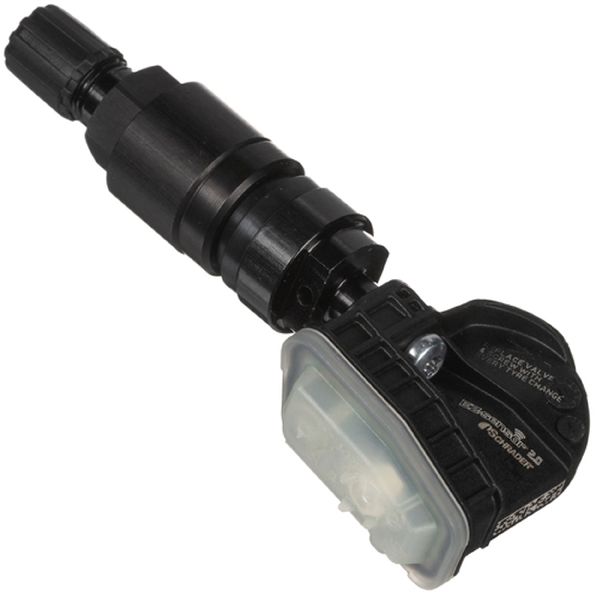

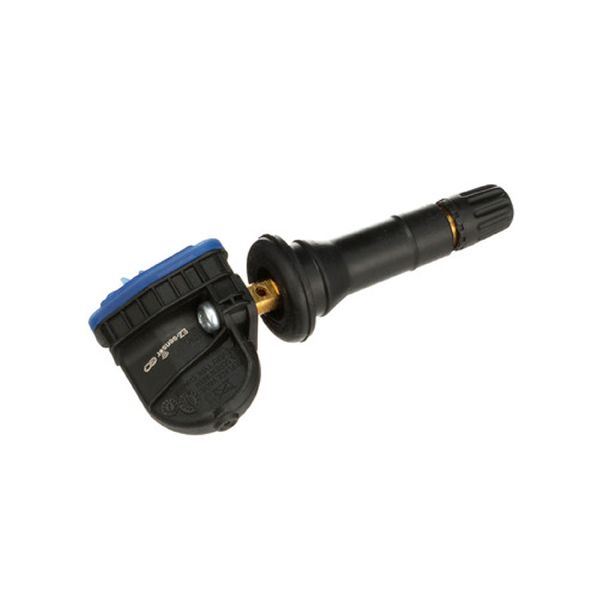

- Aftermarket (Schrader): A brand like Schrader is a strong choice for your Cayenne. Schrader is a major manufacturer of OEM TPMS sensors for many car brands worldwide. Their aftermarket programmable sensors are designed to perform identically to the original parts. 🎬 See how to program a Schrader sensor with a TPMS tool. Choosing a reputable aftermarket brand like Schrader provides OEM-level quality without the dealership price tag.
Pro Tip: If you are replacing your tires, it is the perfect time to replace your TPMS sensors. The labor to install them is minimal since the tires are already being removed, saving you money on a separate service later.
Cost of Replacing TPMS Sensors on a Porsche Cayenne
| Part / Service | Estimated Cost (Per Wheel) |
|---|---|
| New OEM Sensor | $150 - $250+ |
| New Aftermarket Sensor (Schrader) | $43 - $56 |
| Shop Labor (with tire replacement) | $25 - $50 |
| Shop Labor (sensor only) | $80 - $120 |
Note: Costs are estimates and can vary based on your location and the service shop. Labor typically includes dismounting the tire, installing the new sensor, remounting, and balancing.
Frequently Asked Questions
Do I need to go to a Porsche dealer for TPMS replacement?
No. Any reputable tire shop with a modern TPMS programming tool can program and install aftermarket sensors like Schrader for your Cayenne. They can also perform the vehicle's relearn procedure.
What is the "relearn" procedure for a new TPMS sensor?
After the new sensors are installed, you must use the menu in your Cayenne's instrument cluster or PCM to reset the TPMS. You'll select the correct tire type (e.g., summer/winter) and size. The vehicle then requires you to drive for 10-20 minutes at a speed above 16 mph for the system to recognize the new sensors and display their pressures. This is called a "Drive Relearn."
My TPMS light is on, but my tire pressures are correct. What should I do?
This can sometimes be a software glitch. Before heading to a shop, try resetting the system yourself. Go into the TPMS menu in your vehicle, change the settings to a different tire type or wheel size, and then immediately change it back to the correct setting. This can force the system to re-evaluate and may clear a false warning. If the light returns, a sensor is likely failing.
Can I replace just one failed sensor?
Yes, you can replace only the sensor that has failed. However, since all sensors were installed at the same time, their batteries are likely to fail around the same time. If your vehicle is over 5-7 years old, it is often more cost-effective to replace all four sensors at once, especially if you are already getting new tires.
Helpful Videos
Technical Specifications
OEM Part Numbers: 9A790727502

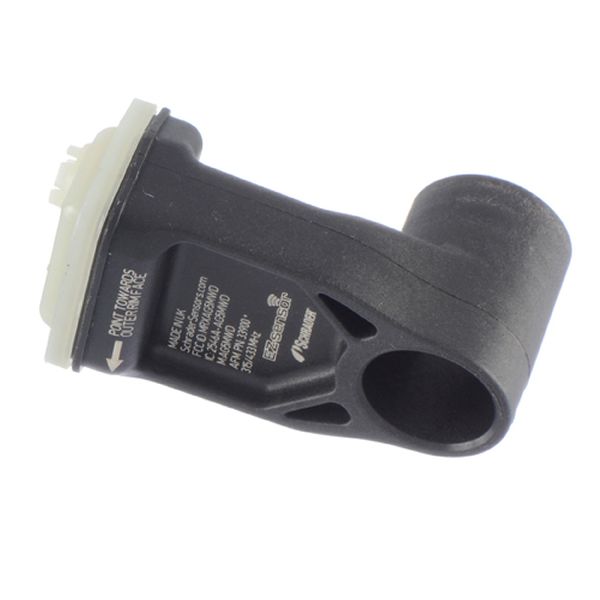

The 2017-2025 Porsche Cayenne uses a direct TPMS system operating on a 433MHz frequency. Aftermarket programmable sensors like the Schrader EZ-sensor are designed to be programmed to this specific frequency and protocol.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
