A Mechanic's Guide to the 2018-2023 GMC Terrain Engine Oil Pressure Switch
Seeing an oil pressure warning on your dash? Here is what it means for your GMC Terrain.
- Always check your engine oil level first; a low oil level is a simple fix that can trigger the light.
- A P0521 code does not automatically mean the sensor is bad; a GM service bulletin points to a possible stuck oil pump relief valve as an alternate cause.
- The sensor's location varies: it's on the back of the 1.5L engine but on the bottom-front of the 2.0L engine.
- Quality aftermarket brands like Standard Ignition offer a reliable, cost-effective alternative to dealer parts.
Symptoms of a Failing Oil Pressure Switch

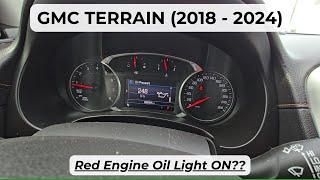

When an oil pressure switch starts to fail on your Terrain, it can give you a few clear signals. The most obvious is the red oil pressure warning light on your dashboard. This light might flicker intermittently, especially during turns or braking, or it might stay on constantly. You might also see the Check Engine Light come on, often with a trouble code like P0521. In some cases, if your Terrain has a digital oil pressure gauge in the driver information center, you might see it read zero, max out, or jump around wildly.
Is It the Sensor or Something More?
A P0521 code doesn't always mean the sensor is bad. General Motors released a Technical Service Bulletin (TSB) for a condition where a stuck oil pressure relief valve inside the oil pump can cause low oil pressure at idle, triggering the code. This means you could replace the sensor and still have the problem. A mechanic should follow diagnostic procedures to rule out wiring issues or actual low oil pressure before condemning the sensor.
Choosing the Right Aftermarket Part
When your original oil pressure switch fails, you have options. You don't have to go back to the dealer.
- OEM/Dealership Part (ACDelco): This is the part your Terrain came with from the factory. It's designed and tested by GM for your specific vehicle and is the benchmark for quality and fit.
- Premium Aftermarket (e.g., Standard Ignition): Brands like Standard Motor Products (Standard Ignition) are a leading choice in the aftermarket. They often produce parts that meet or exceed OEM standards and are known for quality. Their sensors may feature upgraded components like high-temperature ceramic internals. While generally reliable, be aware that any part can occasionally fail, as noted in some forum discussions.
- Standard Aftermarket (e.g., Walker Products): Brands like Walker Products provide a cost-effective alternative to OEM and premium aftermarket parts. They are a functional replacement designed to get the job done at a lower price point.
Pro Tip: Before replacing the sensor, always check the electrical connector and wiring. Oil can leak onto the connector, causing a bad connection and the same symptoms as a failed sensor. Cleaning the connector might solve your problem.
Cost to Replace the Engine Oil Pressure Switch
| Part Type | Part Cost | Shop Labor Cost | Total Estimated Cost |
|---|---|---|---|
| New OEM (ACDelco) | $55 - $90 | $159 - $233 | $214 - $323 |
| New Aftermarket (Standard, Walker) | $46 - $95 | $159 - $233 | $205 - $328 |
Cost estimates are based on national averages for parts and labor and may vary by location and provider. OEM part pricing is based on dealer MSRP and online retailer prices.
Frequently Asked Questions (FAQ)
Where is the oil pressure switch on a 2018-2023 GMC Terrain?

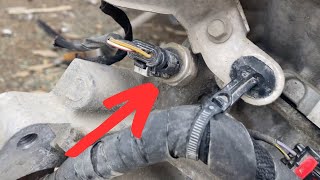

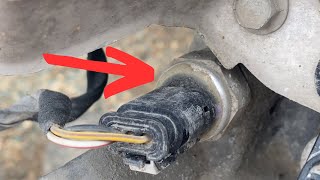

The location depends on your engine. On the 1.5L Turbo engine, it is located on the back of the engine, on the right (passenger) side, often tucked above the starter. On the 2.0L Turbo engine, it is located toward the front of the engine, at the bottom. Access can be tight for either engine.
Can I drive my GMC Terrain with a bad oil pressure switch?
No. It is not recommended to drive your vehicle if the oil pressure light is on. The light indicates a potential for critically low oil pressure, which can cause catastrophic engine damage very quickly. You can't be sure if the problem is a cheap sensor or a major engine issue, so it's safest to stop driving and have it inspected.
What does the code P0521 mean?
Diagnostic Trouble Code (DTC) P0521 stands for "Engine Oil Pressure Sensor/Switch Range/Performance." It means the vehicle's computer has detected that the voltage reading from the sensor is outside its normal expected range, either too high or too low. This can be caused by a bad sensor, wiring problems, or an actual oil pressure problem.
Why is my oil light still on after replacing the sensor?
If you replaced the sensor and the light is still on, there are a few possibilities. First, the new sensor could be faulty. Second, there could be an issue with the wiring or connector. Most importantly, as noted in a GM service bulletin, the problem could be a stuck oil pressure relief valve in the oil pump, which means your engine has a real oil pressure issue that the sensor was correctly reporting.

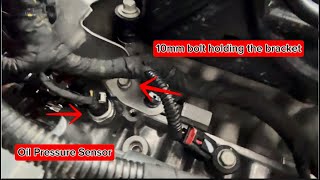

Helpful Videos
Technical Specifications
OEM Part Numbers: 12673134 12596951 12621234 12630433 12659289 12661808
3-pin female oval connector. Threaded body with sealing washer. Reports pressure to ECU.
