A Guide to the 2018-2023 Volkswagen Jetta Engine Oil Level Sensor
Understand the common issues and replacement options for the oil level sensor in your Mk7 Jetta.
- A lit yellow oil warning light with a correct oil level usually means the sensor has failed.
- Replacement requires draining the engine oil, so it's best to do it during an oil change.
- No recalls are active for this specific part, but always check for TSBs.
- Aftermarket brands like Standard Ignition and Facet offer a good balance of quality and value.
Is Your Jetta's Oil Warning Light On?
If you own a 2018-2023 VW Jetta, seeing the yellow oil warning light can be confusing, especially if you check the dipstick and the oil level is fine. This issue often points to a faulty engine oil level sensor, not necessarily a problem with your oil. These sensors operate in a hot, harsh environment inside the oil pan and can fail over time.
Don't Ignore the Warning Light
Even if you suspect a bad sensor, always manually check your oil level with the dipstick first. The yellow warning light indicates a low oil level or a sensor fault. A red oil pressure light, however, is much more serious and means you should stop the engine immediately to prevent severe damage.
Common Symptoms of a Failing Oil Level Sensor
- Oil Warning Light On: The most common symptom is the yellow oil level warning light staying on even when the oil level is correct.
- Intermittent Light: The light may flicker or come on and off randomly, especially when turning or on hills.

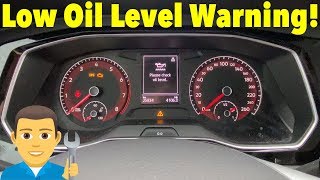

- "Check Oil Level" Message: A message will appear on your instrument cluster display, telling you to check the oil level. 🎬 Watch this fix for the low oil warning message.
Choosing the Right Aftermarket Sensor
When replacing the oil level sensor on your Jetta, you have options outside of the expensive OEM part. Aftermarket brands offer a range of quality and price points. Here’s a breakdown of what to consider:
- Premium Aftermarket (e.g., Standard Ignition): Brands like Standard Motor Products (SMP) are well-regarded in the industry. They build parts to meet or exceed OEM specifications, focusing on durability with high-quality plastics and reliable connectors to handle engine heat and vibration. They are a solid choice for reliability without the dealer price tag.
- OEM-Alternative (e.g., Facet): Facet is an established European parts manufacturer. They produce a wide range of sensors and are often a direct-fit replacement, providing a good balance between cost and quality.
- Value-Oriented (e.g., URO Parts, Global Parts): URO Parts is known for providing affordable alternatives to genuine parts. For a part like an oil level sensor, their products can be a cost-effective solution, and many come with a good warranty. While sometimes viewed as a budget brand, many owners find them to be a perfectly acceptable replacement for non-critical components.
Pro Tip: It's a Good Time for an Oil Change
The oil level sensor is located at the bottom of the engine in the oil pan. To replace it, you must drain the engine oil. Because of this, the best time to replace a faulty sensor is during a scheduled oil change. 🎬 See this walkthrough on locating and replacing the sensor. This saves you from wasting fresh oil or paying for the same labor twice.
Known Issues, Recalls, and TSBs
As of early 2026, there are no specific recalls for the engine oil level sensor on the 2018-2023 Volkswagen Jetta. However, a Technical Service Bulletin (TSB) exists for many VW models, including this Jetta, regarding the oil level being below the full mark from the factory, which is considered normal as long as it's within the dipstick's hash marks. Some owners on forums have reported issues with wiring to the sensor being damaged by rodents, which can mimic the symptoms of a failed sensor.
| Part Type | Estimated Part Cost |
|---|---|
| New OEM | $220 - $300 |
| New Aftermarket | $104 - $293 |
| Shop Labor | $93 - $136 |
Frequently Asked Questions
Can I replace the Jetta's oil level sensor myself?
Yes, if you have intermediate DIY skills. The job requires safely lifting the vehicle, draining the engine oil, removing a plastic splash shield, and then unbolting the sensor from the oil pan. You will need a good set of tools, jack stands, and a torque wrench. Because it involves getting under the car, it should only be attempted if you are comfortable with these procedures.
🎬 Follow this DIY guide for a Jetta oil change.Is it safe to drive with a bad oil level sensor?
Yes, but with caution. If you have confirmed the oil level is correct with the dipstick, you can continue driving. However, you lose the safety net the sensor provides. You should check your oil level manually more frequently until the sensor is replaced to ensure you don't run low on oil.
Why is the aftermarket price range so wide?
The price for aftermarket sensors ($104.63 - $293.03) varies based on brand reputation, materials used, warranty, and whether the part includes advanced features like oil temperature and quality measurement, similar to the complex OEM sensors. Premium brands invest more in testing and quality control, which is reflected in the price.
Will a new sensor need to be calibrated?
No. Aftermarket oil level sensors for the Jetta are designed to be plug-and-play. Once installed, the system should work correctly after the new oil is added and the engine is started. No special programming or calibration is needed.
Helpful Videos
Technical Specifications
OEM Part Numbers: 03F907660E 04E907660C
Typically a 3-pin connector. The sensor is located in the engine oil pan and is secured with three bolts. It functions as an electronic monitor for both oil level and, in some variations, oil temperature.
