Chevrolet Equinox Disc Brake Hardware Replacement Guide (2018-2024)
Learn why replacing the small metal clips and springs in your brakes is a critical step for a quiet, safe stop in your Equinox.
- Always replace brake hardware when changing brake pads to ensure quiet operation and even wear.
- Symptoms of bad hardware include rattling, squealing, and uneven pad wear.
- Choose aftermarket kits from brands like Raybestos or Dynamic Friction, preferably with stainless steel components for better rust resistance.
- While no hardware-specific recalls exist, be aware of a broader investigation into brake booster issues for the 2018-2024 Equinox.
Is Your Equinox's Brake Hardware Failing?
Brake hardware is often overlooked, but it's a common source of brake problems. The clips and springs are exposed to intense heat, moisture, and road salt, causing them to rust, weaken, or break over time. When this happens, you might notice several issues with your Equinox's brakes.
Symptoms of Worn Brake Hardware
- Brake Noise: Rattling, clicking, or squealing sounds, especially at low speeds or when the brakes are lightly applied, often point to worn or missing hardware.
- Uneven Brake Pad Wear: If the hardware is rusted or bent, it can prevent the brake pads from moving freely. This causes one pad to wear out much faster than the other.
- Vibration or Pulsation: While often caused by warped rotors, binding pads due to bad hardware can also contribute to a pulsating feeling in the brake pedal.
- Spongy or Soft Pedal: In severe cases where hardware failure leads to a stuck caliper, you might experience a change in pedal feel.
Pro Tip: Always Replace Hardware with Pads
It is highly recommended to replace your disc brake hardware every time you replace your brake pads. The cost is low, and it ensures your new pads can move correctly, preventing noise and premature wear. Most quality aftermarket pad sets include new hardware.
Choosing the Right Aftermarket Hardware Kit
For the 2018-2024 Chevrolet Equinox, you don't need to buy expensive OEM parts for a quality repair. Reputable aftermarket brands often provide hardware that meets or exceeds original specifications, sometimes using better materials like stainless steel for improved corrosion resistance.
Aftermarket Brand Tiers

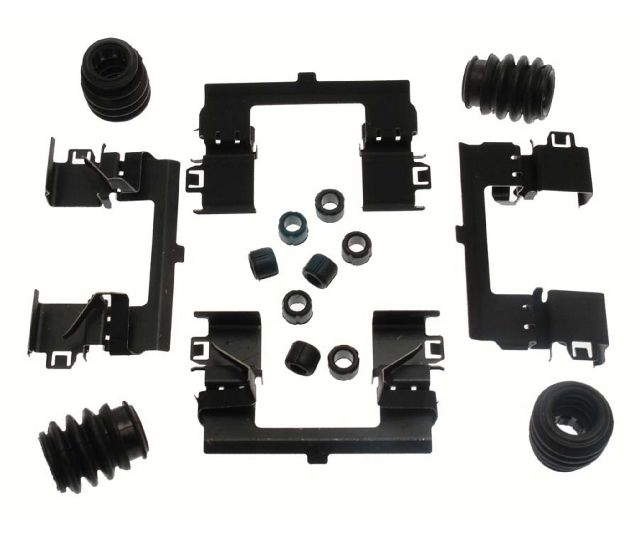

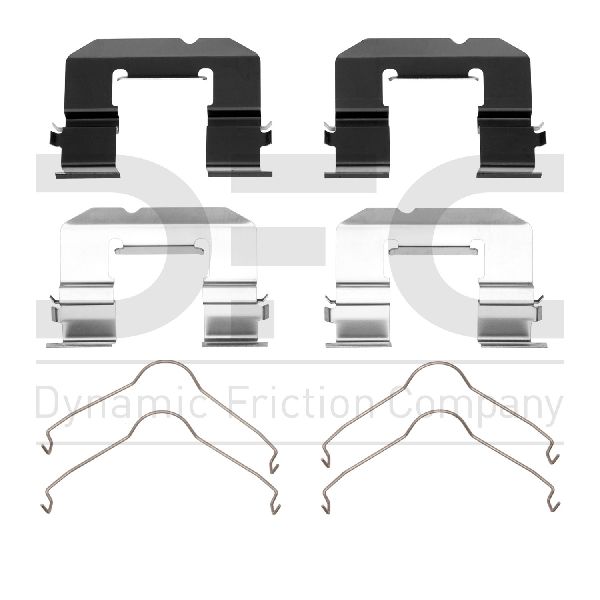

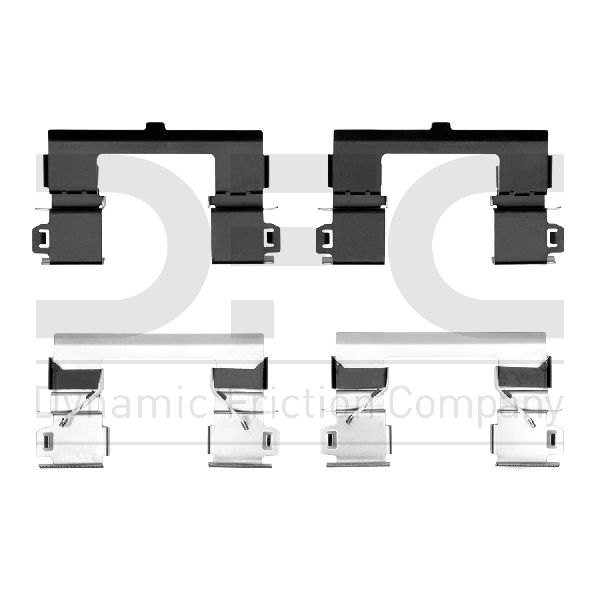

- Premium Aftermarket (Raybestos, Dynamic Friction): These brands are well-regarded by professional mechanics. Raybestos, particularly its Element3 line, has historically been a top choice, though some recent reviews suggest keeping an eye on quality. Dynamic Friction is another strong contender known for good performance and fit. These kits will typically feature high-quality materials and a perfect fit.

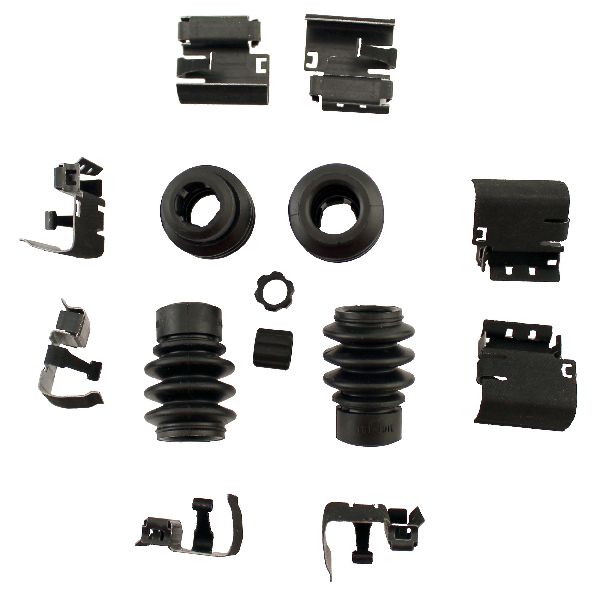

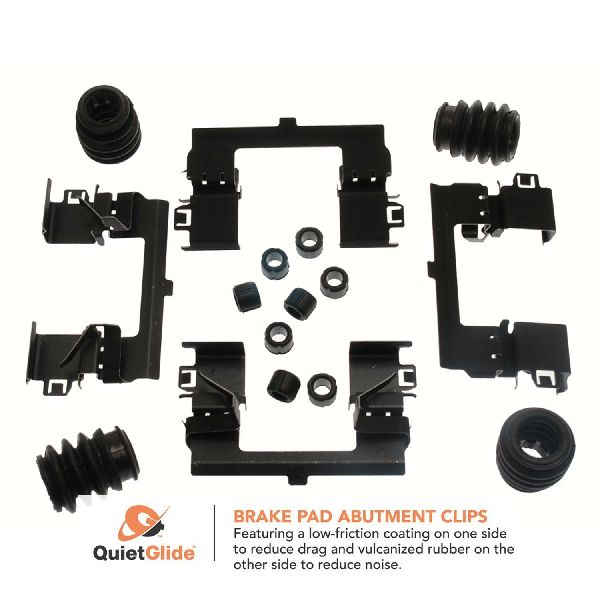

- Standard Aftermarket (Carlson): Carlson specializes in brake hardware and offers reliable, OE-style replacement kits. They provide a dependable, cost-effective solution for a daily driver like the Equinox.
When choosing, look for kits made from stainless steel, as they offer the best protection against rust, which is a primary cause of hardware failure.
Known Issues for 2018-2024 Chevrolet Equinox
While there are no specific recalls or Technical Service Bulletins (TSBs) for the disc brake hardware on this generation of Equinox, some related brake issues have been noted:
Brake System Investigation
Some 2018-2024 Equinox models are part of an investigation into potentially defective brake booster pumps, which can cause a hard brake pedal and reduced braking power. This is separate from the hardware but is an important safety concern for owners.
Owners have also reported various brake noises like creaking or clicking. Often, these issues can be traced back to worn or improperly installed hardware, or the need for lubrication on caliper slide pins.
Estimated Replacement Costs
Replacing brake hardware is almost always done as part of a larger brake job (pads and/or rotors). The hardware kit itself is inexpensive, but the total cost will be dominated by labor and the other brake parts.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Disc Brake Hardware Kit | $11 - $42 |
| Shop Labor (as part of a brake job) | $159 - $233 (per axle) |
| Total Front or Rear Brake Job (Pads, Rotors, Hardware & Labor) | $350 - $600+ (per axle) |
Frequently Asked Questions (FAQ)
Do I really need to replace the hardware with every brake job?
Yes. The old clips lose their spring tension from thousands of heating and cooling cycles. Reusing them can lead to brake noise and improper pad movement, undoing the benefits of your new pads. For the low cost, it's essential insurance for a proper brake job.
What's the difference between front and rear hardware kits?

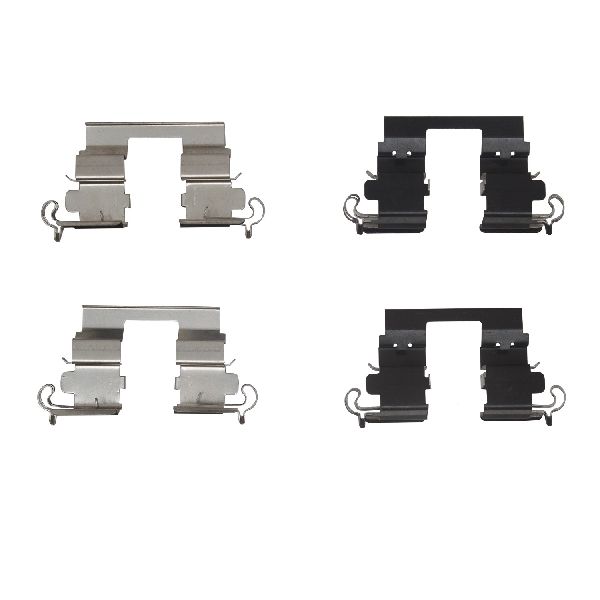

The front and rear brakes on your Equinox are different sizes and designs, so they require specific hardware kits. The rear brakes also incorporate the electronic parking brake, which can have slightly different clips. Always ensure you are buying the correct kit for the axle you are servicing.
Are coated or stainless steel clips better?
Stainless steel is generally the best material for brake hardware because it resists rust and corrosion far better than standard or coated steel. This is especially important if you live in an area with road salt in the winter. It helps ensure the pads continue to slide freely for their entire service life.
Can bad hardware cause my brakes to stick?
Yes. If the abutment clips (the clips the brake pads rest on) are heavily rusted or damaged, they can prevent the pad from retracting properly when you release the pedal. This causes the brake to drag, which generates excess heat, wears the pad and rotor prematurely, and hurts fuel economy.
Technical Specifications
Kit typically includes abutment clips, anti-rattle springs, and sometimes caliper pin boots. Material can be plated steel or stainless steel.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
