Chevrolet Express 2500 Camshaft Position Sensor Guide (2018-2024)
Having trouble with stalling or a Check Engine Light? Your van's camshaft position sensor might be the culprit.
- A failing camshaft sensor can cause serious issues, including stalling while driving; replace it promptly.
- For reliability, choose top-tier aftermarket brands like ACDelco or Delphi, which are often the original GM suppliers.
- Always inspect the sensor's wiring harness for damage, as this can mimic sensor failure.
- Common trouble codes associated with this failure are P0340 and P0341.
Is a Failing Camshaft Position Sensor a Big Deal?
Yes, it can be. While the part itself isn't very expensive, a failing camshaft position sensor can leave you stranded. The sensor's signal is crucial for engine operation. When it fails, the engine's computer is essentially guessing when to fire the spark plugs and injectors, leading to a range of problems from poor performance to a no-start condition. In some cases, a faulty sensor can even cause the engine to stall while driving, which is a serious safety concern.
Can I Keep Driving with a Bad Camshaft Sensor?
It is not recommended. While the van might still run, it could stall unexpectedly at any time, increasing the risk of an accident. It's best to get it replaced as soon as you notice symptoms.
Common Symptoms of Failure
If your Express 2500 is experiencing any of these issues, it's time to check the camshaft position sensor:
- Check Engine Light: This is often the first sign. You'll likely see trouble codes like P0340 or P0341.
- Difficulty Starting: The engine cranks but takes a long time to start, or won't start at all.
- Engine Stalling: The engine may shut off unexpectedly, especially at idle or low speeds.
- Rough Idle and Misfires: The van may shake or run unevenly when stopped.
- Reduced Power and Poor Acceleration: Your van may feel sluggish and struggle to get up to speed.
- Worse Fuel Economy: An inefficient engine burns more gas. 🎬 Watch: A detailed breakdown of bad camshaft sensor symptoms.
Choosing the Right Aftermarket Sensor
When it comes to engine sensors, quality matters. While budget-friendly options are available, they can be a gamble. For a critical part like this on a work vehicle, reliability is key. Many professional mechanics recommend sticking with OEM or high-quality aftermarket brands to avoid doing the job twice.
Here’s a breakdown of brand quality for your Express van:
- Top Tier (OEM-Equivalent): ACDelco and Delphi. ACDelco is the genuine GM parts brand. Delphi was the original equipment manufacturer for many GM parts and is widely considered to be of equal quality. Choosing either of these is your safest bet for a part that fits and functions like the original.
- Reliable Aftermarket: Brands like Hitachi, NGK/NTK, and Standard Ignition (SMP) have a strong reputation for producing quality sensors. They are often a good balance between price and performance.
- Economy Options: Brands like Dorman, Walker Products, and others offer a more budget-friendly price point. While Dorman often provides direct-fit replacements, the long-term reliability of economy sensors can be mixed. For a work van that needs to be dependable, it's generally recommended to invest in a top-tier or reliable aftermarket brand.
A Note on Wiring
Sometimes, the sensor itself isn't the problem. On Chevy Express vans, the wiring harness leading to the sensor can become brittle or damaged from heat and vibration, causing the same symptoms as a failed sensor. Before replacing the sensor, always inspect the connector and wiring for any visible damage.
Known Issues, Recalls, and TSBs
As of late 2024, there are no specific recalls or widespread Technical Service Bulletins (TSBs) for the camshaft position sensor itself on the 2018-2024 Chevrolet Express 2500. However, a TSB (PIP5811F) was issued for some 2021-2022 models that could cause a shudder or surge, which might be mistaken for a sensor issue. This was related to a sticking camshaft actuator magnet. There have been other recalls for the Express van in this year range, but they are unrelated to this specific part.
Cost to Replace the Engine Camshaft Position Sensor
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Part | $29 - $57 |
| Shop Labor | $100 - $200 |
| Total Estimated Cost | $129 - $257 |
Frequently Asked Questions
Where is the camshaft position sensor located on the 2018-2024 Express 2500?
The location depends on your engine. On the 4.3L V6, the sensor is located on the front of the engine, low down and somewhat difficult to access. 🎬 Watch: This walkthrough shows how to replace the 4.3L sensor. On V8 models like the 6.6L, it is typically on the front of the engine as well, but access may require removing other components like the belt tensioner or a bracket. Due to the tight engine bay of the Express van, replacement can be challenging.
Can I replace the camshaft position sensor myself?
For an experienced DIY mechanic, this is a feasible job. However, accessing the sensor on an Express van can be difficult due to the tight space in the engine compartment. It may require removing the engine cover (doghouse), fan shroud, and other components to get enough room to work. If you are not comfortable working in tight spaces, it may be best to leave this job to a professional.
What is the difference between a P0340 and P0341 code?
Both codes point to a problem with the camshaft position sensor circuit. A P0340 code generally means there is a complete loss of signal (a circuit malfunction). A P0341 code indicates that the signal is out of the expected range or is not performing correctly, meaning it might be intermittent or erratic.
🎬 See how to diagnose P0340 and P0341 codes on an Express.Do I need to perform a relearn procedure after replacing the sensor?
Generally, a specific relearn procedure is not required for just replacing the camshaft position sensor. The engine computer should recognize the new sensor's signal after a few drive cycles. However, it is always a good practice to clear the trouble codes with a scan tool after the replacement is complete.

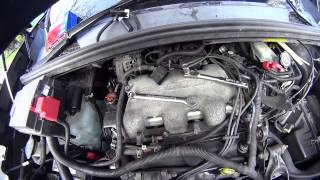

Helpful Videos
Technical Specifications
OEM Part Numbers: 12623093
The 2018-2024 Chevrolet Express 2500 uses a magnetic Hall-effect sensor. The specific part number may vary depending on whether you have the 4.3L V6 or the 6.6L V8 engine. Always verify the part fitment for your specific engine before purchasing.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
