Chevrolet Express 3500 Alternator Guide (2018-2024)
Keep your 2018-2024 Express 3500 work-ready by understanding alternator failure and choosing the right replacement.
- A failing alternator gives warnings like a battery light, dimming headlights, and whining noises; do not ignore them.
- For a work van, reliability is key. A new alternator from a Tier 1 or Tier 2 brand like Valeo, ACDelco, or MPA is a safer bet than a budget remanufactured unit.
- Verify the required amperage for your specific van by checking the RPO code in the glove box before purchasing.
- Always test your battery when replacing the alternator, as a bad battery can damage the new part.
Is Your Express 3500 Alternator Failing?
An alternator rarely fails without warning. For a work van like the Express 3500, being stranded means lost time and money. Recognizing the signs early can save you from a breakdown. The most common indicator is the battery warning light on your dashboard. You might also notice your headlights dimming or flickering, especially at idle. Other electrical accessories, like the radio, power windows, or interior lights, may act up or stop working entirely. A failing alternator can also make unusual noises, such as a whining or grinding sound, which points to bad internal bearings. 🎬 Watch: How to tell if your alternator is going bad In some cases, you might smell burning rubber or hot wires as the alternator struggles and overheats.
Common Problems & Recalls
While no alternator-specific recalls were found for the 2018-2024 model years, it's important to know that older 2010 models were recalled for an alternator that could short and potentially cause a fire. This highlights the importance of using a quality part. The most common issue reported by owners is straightforward failure, leading to a dead battery and abnormal noises. A weak or old battery can also overwork and damage a new alternator, so it's wise to test your battery when replacing the alternator.
Pro Tip: Check Your Amperage
The Express 3500 was available with different alternators with varying amperage outputs (e.g., 105A, 150A). Check the RPO code sticker in your glove box for codes like "KG4" (150 amp) to ensure you buy a replacement with the correct or higher output to handle your van's electrical needs.
Choosing a New Aftermarket Alternator
When replacing your alternator, you don't have to go to the dealer. Aftermarket parts offer a range of quality and price points. Here’s how the available brands generally stack up for your Express van:

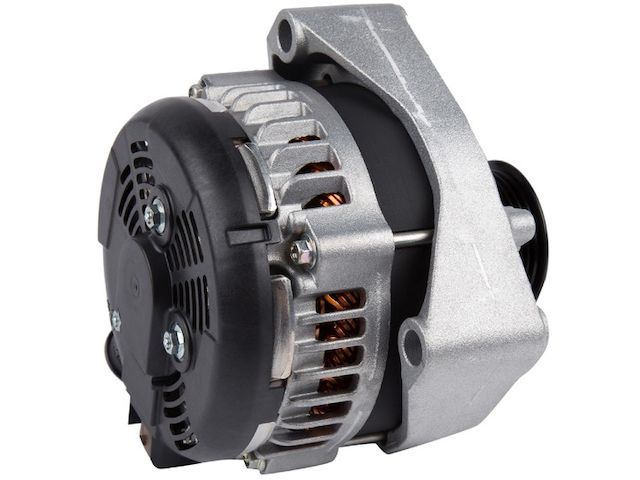

- Tier 1 (OEM-Level Quality): Brands like Valeo and ACDelco's GM Original Equipment line are often the same parts used on the assembly line. Valeo is a major OEM supplier known for high-quality standards. Choosing these brands gives you the highest confidence in fit and longevity, which is critical for a work vehicle.

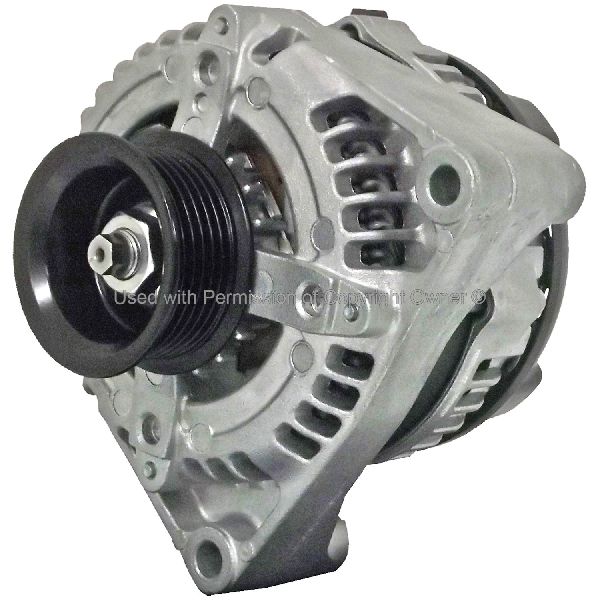

- Tier 2 (Quality Aftermarket): This tier includes brands like Remy (New), MPA (Quality-Built Supreme), and ACDelco Gold. These are reputable aftermarket manufacturers. Remy has a long history, though some online reviews mention occasional early failures on remanufactured units. MPA's Quality-Built line is tested to meet or exceed original specifications. ACDelco Gold is GM's premium aftermarket line, offering a good balance of price and quality.
- Tier 3 (Economy): This includes remanufactured units from brands like BBB Industries and some store-brand parts they supply. While they are the most affordable, their lifespan can be inconsistent. Some units fail prematurely due to only having the broken components replaced rather than a full rebuild. These are best suited for budget-conscious repairs where long-term reliability is less critical.
New vs. Remanufactured
A "new" aftermarket alternator is made with all-new components. A "remanufactured" unit is an original alternator that has been rebuilt, with worn or failed parts replaced. While remanufactured parts are cheaper, their quality can vary. For a workhorse like the Express 3500, a new unit from a reputable brand is often the more reliable long-term choice.
Alternator Replacement Cost for 2018-2024 Express 3500
The cost to replace the alternator can vary based on your engine and the part you choose. Below are typical cost ranges.
| Item | Estimated Cost |
|---|---|
| Shop Labor | $117 - $184 |
| New OEM Part | $423 - $753 |
| New Aftermarket Part | $78 - $488 |
| Total Professional Replacement (Aftermarket) | $195 - $672 |
| Total Professional Replacement (OEM) | $540 - $937 |
Frequently Asked Questions
Can I drive my Express van with a bad alternator?
It is not recommended. Once the alternator fails, your van runs solely on battery power. This will only last for a short time before the battery is completely drained, shutting down the engine and all electronics, potentially leaving you stranded.
My battery light is on. Do I need an alternator or a battery?
The battery light indicates a charging system problem, which is usually the alternator. However, a bad battery can't hold a charge and can cause the alternator to work too hard and fail. The best practice is to have both your alternator and battery tested. Most auto parts stores offer this service for free.
Is replacing the alternator a DIY job?
For someone with moderate mechanical skill and the right tools, yes. The alternator on the Express 3500 is generally accessible from the top of the engine bay. The job involves disconnecting the battery, releasing the serpentine belt tension, removing a few bolts and electrical connectors, and then swapping the part. 🎬 See this step-by-step alternator replacement walkthrough for Express vans If you are not comfortable with this, a professional mechanic can do the job in about 1-2 hours.
What is a "core charge"?
A core charge is a deposit you pay when you buy a remanufactured part. You get this deposit back when you return your old alternator. This encourages the return of old parts so they can be remanufactured. New aftermarket parts typically do not have a core charge.
Helpful Videos
Technical Specifications

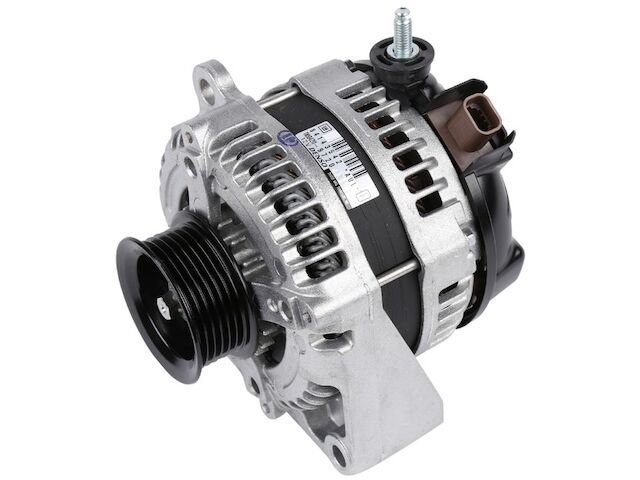

OEM Part Numbers: 84143542
Amperage options typically include 105A, 150A, and higher. The correct amperage is critical and can be identified by the vehicle's RPO code (e.g., KG4 for 150A). The alternator uses a serpentine belt and will have a specific pulley type (e.g., steel pulley).
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
