Ignition Knock Sensor Guide for the 2018-2024 GMC Terrain
Is your GMC Terrain running rough or showing a check engine light? It could be a bad knock sensor.
- A bad knock sensor will trigger a Check Engine Light and cause poor performance and fuel economy.
- Before replacing the sensor, check for wiring issues or software updates, as a GM TSB indicates these can also cause the fault code.
- Top aftermarket brands like NGK, Delphi, and Standard Ignition offer OEM-level quality for less than dealer prices.
- Replacement is moderately difficult as the sensor is located under the intake manifold (1.5L) or behind other components (2.0L).
Is Your GMC Terrain Knock Sensor Failing?
A failing knock sensor can cause noticeable problems with your vehicle. The engine's computer relies on this sensor to run the engine at its best. When it stops working correctly, the computer will often switch to a "safe mode" to prevent damage. This safe mode reduces engine power and performance.
Symptoms of a Bad Knock Sensor
🎬 Watch: A visual guide to common bad knock sensor symptoms- Check Engine Light: This is the most common sign. The computer will store a trouble code, often P0325 or P0326, which points to a problem in the knock sensor circuit.
- Reduced Engine Power: Your Terrain may feel sluggish and slow to accelerate because the computer has retarded the ignition timing to protect the engine.
- Worse Fuel Economy: An engine that isn't running efficiently will burn more fuel than usual. You might notice you're filling up your tank more often.
- Engine Pinging Noise: In some cases, you might hear a metallic pinging or knocking sound, especially when the engine is working hard, like going up a hill. This is the sound of the detonation that the faulty sensor is failing to correct.
Important: It Might Not Be the Sensor
Before you replace the sensor, it's important to properly diagnose the problem. A knock sensor code doesn't always mean the sensor itself is bad. The code can be triggered by wiring issues, a bad connection, or even a software problem. General Motors issued a Technical Service Bulletin (TSB #19-NA-032) for some similar 1.5L engines where a software issue could cause knock sensor codes P0325 and P0330, requiring a computer reprogram instead of a new sensor. Always check for loose connections and wiring damage first.
🎬 See how a pro diagnoses a P0325 knock sensor codeChoosing the Right Aftermarket Knock Sensor
When shopping for a replacement, you'll find several brands. While you can always go to the dealer for a factory part, high-quality aftermarket sensors can offer the same performance for less money. They are generally divided into quality tiers.
Tier 1: OEM-Quality Brands
These brands are often original equipment manufacturers for many car companies and have a strong reputation for quality and reliability.
- NGK / NTK: Highly regarded as a top-tier sensor manufacturer, often considered equal to OEM quality by many mechanics.
- Delphi: A major OE supplier with a long history. Delphi parts are known to meet or exceed factory specifications and are a trusted choice for many repairs.
- Standard Ignition (SMP): A well-respected aftermarket brand that has been around for decades. They design their parts to be reliable replacements for the original.
Tier 2: Value Brands
These brands provide a functional replacement part that meets basic requirements and can be a good choice for budget-conscious repairs.
- Walker Products
- Holstein
- Motorad
Where is the Knock Sensor Located?

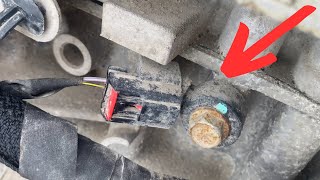

The location makes this a moderately difficult job. On 1.5L engines, the sensor is on the back bottom of the engine block, underneath the intake manifold. On 2.0L engines, there are two sensors; one is located behind the alternator and the other is behind the turbocharger. Due to the location, replacement can take 1.5 to 2.5 hours.

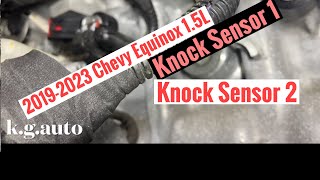

🎬 Watch: Step-by-step knock sensor replacement for the 1.5L engineCost to Replace a GMC Terrain Knock Sensor
| Part Type | Estimated Part Cost |
|---|---|
| New OEM (GM Genuine/ACDelco) | $25 - $60 |
| New Aftermarket | $27 - $47 |
| Shop Labor | $180 - $400 |
| Total Estimated Cost (Aftermarket Part + Labor) | $207 - $447 |
Cost estimates are based on national averages for parts and labor and can vary by location and vehicle engine type.
Frequently Asked Questions
Can I still drive my GMC Terrain with a bad knock sensor?
Yes, but it's not recommended for long. The engine computer will go into a safe mode, reducing power and fuel efficiency to prevent damage. You should get it fixed as soon as possible to avoid long-term engine problems.
Is an aftermarket knock sensor as good as the original GM part?
It depends on the brand. Top-tier aftermarket brands like NGK/NTK, Delphi, and Standard Ignition are often made to the same or higher standards as the original part. Some are even the original equipment supplier to GM. These brands are a reliable alternative to the more expensive dealer part.
How many knock sensors does a GMC Terrain have?
The 1.5L 4-cylinder engine typically has one knock sensor. The 2.0L 4-cylinder engine has two knock sensors.
Why did my knock sensor fail?
Knock sensors can fail from age, damage from engine heat, or corrosion on the electrical connector. On the 2.0L Terrain, the sensor located near the turbocharger can be exposed to extreme heat, which may shorten its life.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12636736 12623095
The knock sensor for the GMC Terrain is a piezoelectric sensor that generates an AC voltage signal in response to engine block vibrations. It is a single-bolt mount design. The 1.5L engine uses one sensor, while the 2.0L engine uses two.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
