Chevrolet Equinox HVAC Pressure Transducer Issues and Replacement for 2019-2023 Models
If your 2019-2023 Equinox air conditioning is blowing warm, this guide explains a common and easy-to-fix part failure.
- A faulty HVAC pressure transducer is a common reason for A/C failure in the 2019-2023 Equinox.
- Before replacing the sensor, check for refrigerant leaks, especially the one noted in TSB 18-NA-162.
- This is an easy and inexpensive DIY repair; the sensor is on a Schrader valve, so no refrigerant recharge is needed.
- Aftermarket brands like Four Seasons offer a reliable, cost-effective alternative to more expensive OEM parts.
Is Your Equinox A/C Failing? Here's What to Check
A non-working air conditioner in your 2019-2023 Chevrolet Equinox can often be traced back to a few common issues. One of the most frequent culprits is a faulty HVAC pressure transducer. When this small sensor fails, it can disable your entire A/C system. This guide will walk you through the symptoms, known issues specific to your Equinox, and how to choose the right aftermarket replacement part.

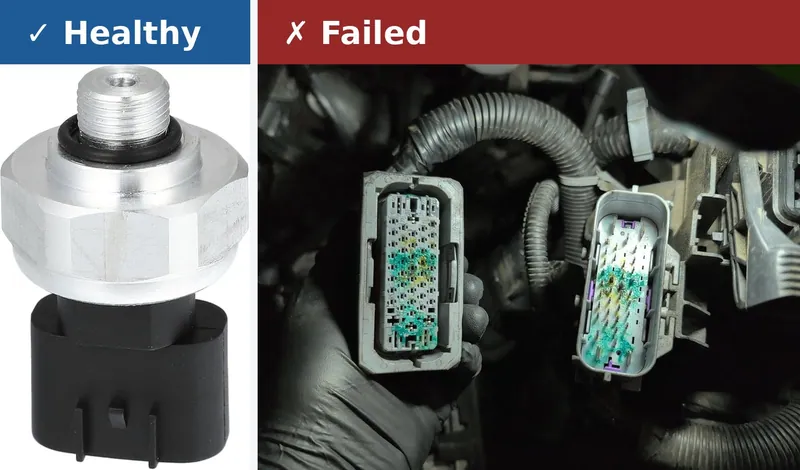

Symptoms of a Failing HVAC Pressure Transducer
A bad pressure transducer sends incorrect signals to the vehicle's computer, leading to several noticeable problems:
- A/C Blows Warm or Hot Air: This is the most common sign. The computer thinks the refrigerant pressure is unsafe, so it prevents the A/C compressor from turning on.
- Intermittent Cooling: The A/C might work for a while and then suddenly stop, cycling between cold and warm air. This happens when the sensor provides erratic readings.
- Compressor Clutch Doesn't Engage: You may hear a 'click' or two from the engine bay when you turn on the A/C, but the compressor never fully kicks in. This is the computer preventing engagement due to a bad signal from the sensor.
- Check Engine Light: Fault codes like P0532 (circuit low input) or P0533 (circuit high input) are direct indicators of a sensor or circuit problem.
Known Issue: Check for Refrigerant Leaks First! (TSB 18-NA-162)

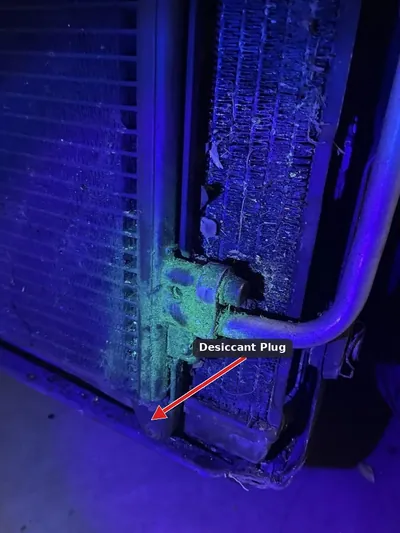

Before you replace the pressure transducer, be aware of a known issue with 2018-2024 Chevrolet Equinox models. General Motors issued Technical Service Bulletin (TSB) 18-NA-162 for A/C systems that are not cooling because of a refrigerant leak. This leak often occurs at the A/C condenser's desiccant plug. A slow leak will lower refrigerant levels, causing the pressure transducer to correctly report low pressure and shut the system down. A mechanic can perform a leak test to confirm if this TSB applies to your vehicle before you spend money on parts you may not need.
Choosing the Right Aftermarket Brand
For a part like the HVAC pressure transducer, aftermarket options provide excellent value. The technology is not complex, and quality aftermarket brands produce reliable sensors that meet or exceed original specifications. OEM parts are available but are often significantly more expensive without offering a noticeable performance benefit for this component.

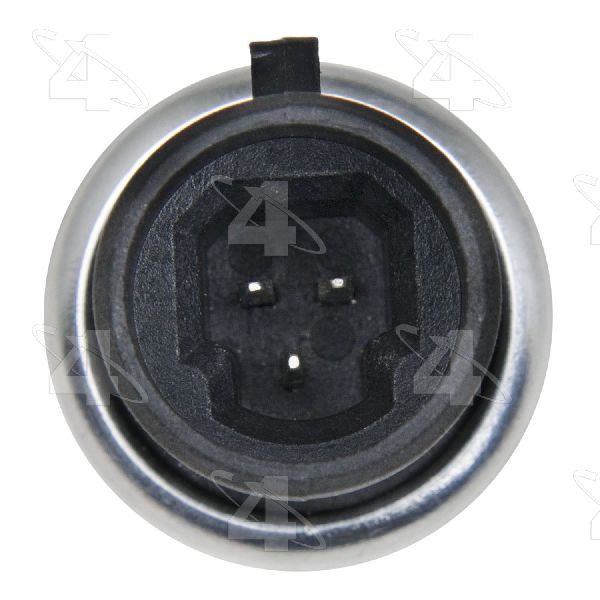

- Four Seasons: This is a well-regarded brand in the HVAC parts industry. Many professional mechanics and DIYers trust Four Seasons for A/C components due to their consistent quality and reliability. In some cases, their parts are manufactured in the same facilities as OEM parts.
- Global Parts (GPD): GPD is another available brand, often positioned as a budget-friendly alternative. While functional, some user experiences suggest their components may not have the same long-term durability as more established brands.
Pro Tip: For the small price difference, choosing a brand with a stronger reputation like Four Seasons is a wise investment for peace of mind and to avoid replacing the part again in the near future.
Cost to Replace the HVAC Pressure Transducer on a 2019-2023 Equinox
Replacing this sensor is not an expensive repair. The part itself is affordable, and labor is minimal because it is easy to access.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Part | $39.45 - $49.98 |
| New OEM Part | $70 - $160 |
| Shop Labor | $140 - $210 |
| Total Professional Replacement | $180 - $260 |
Cost estimates are based on national averages and may vary by location and repair shop.
Frequently Asked Questions (FAQ)
Where is the HVAC pressure transducer located on my Equinox?

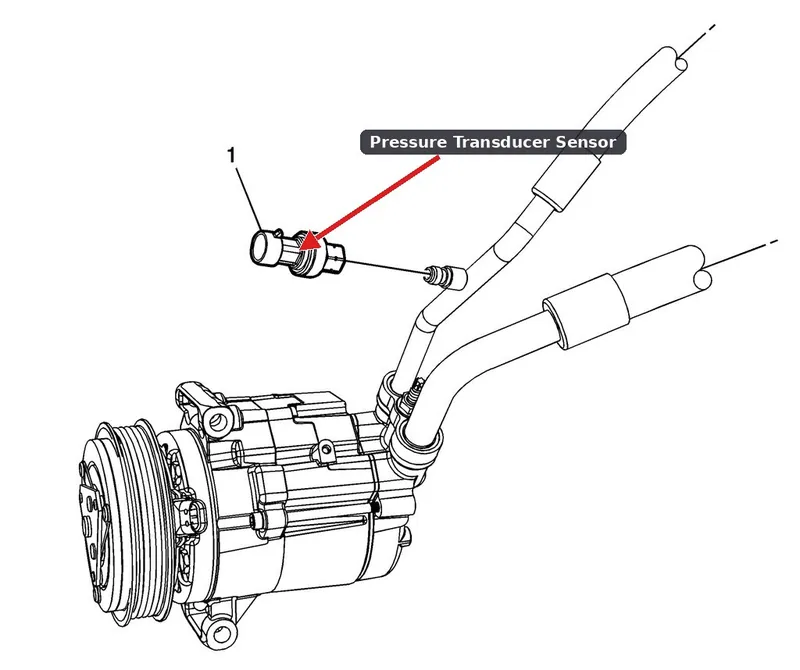

The pressure transducer is located in the engine bay, screwed into one of the metal A/C lines. It is typically on the high-pressure line (the thinner of the two main A/C hoses) near the front of the vehicle for easy access.
Can I replace this part myself?
Yes, this is a very DIY-friendly repair. The sensor usually sits on a Schrader valve, similar to a tire valve. This means you can unscrew the old sensor and install the new one without losing all the refrigerant in the system. Only a tiny, harmless puff of refrigerant will escape. The job requires basic hand tools and should take less than 30 minutes.
Do I need to recharge the A/C system after replacing the sensor?
No. Because the sensor is mounted on a Schrader valve, the system remains sealed, and you will not lose a significant amount of refrigerant. You do not need to evacuate or recharge the system after this specific repair, unless the system was already low on refrigerant from a separate leak (like the one described in TSB 18-NA-162).
Is there a recall for this part on my Equinox?
As of early 2026, there are no specific recalls for the HVAC pressure transducer on 2019-2023 Chevrolet Equinox models. Always check the official NHTSA website for the most up-to-date recall information using your vehicle's VIN.
Helpful Videos
Technical Specifications
OEM Part Numbers: 13511536
Thread Size: M10-1.25 Female
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
