Dodge Challenger Suspension Strut Bellows Replacement Guide (2019-2023)
Protect your Challenger's ride quality by understanding this small but critical suspension part.
- A torn strut bellow is a serious issue that will cause the entire strut to fail over time.
- Symptoms of a related strut failure include clunking noises, a bouncy ride, and visible fluid leaks on the strut body.
- High-quality aftermarket brands like KYB offer a reliable and cost-effective replacement for the OEM bellow.
- Replacement is labor-intensive and requires special tools; it's often more economical to replace the entire strut assembly on higher-mileage vehicles.
Is a Torn Strut Bellow a Big Deal?
Yes. While the bellow itself is an inexpensive part, its failure is a direct cause of expensive strut failure. Think of it as the bodyguard for your strut. A torn, cracked, or missing bellow allows abrasive dirt and moisture to grind against the strut's most sensitive parts. This will destroy the main oil seal, causing the strut to leak and lose its ability to control your ride. Ignoring a torn boot will eventually lead to a bouncy, unsafe ride and the need to replace the entire strut assembly.
Don't Ignore a Torn Boot
A failed bellow guarantees the eventual failure of the entire strut. The cost of replacing a bellow is minimal compared to replacing a prematurely worn-out strut assembly due to contamination.
Symptoms of a Failing Strut Bellow
The most obvious symptom is the physical condition of the bellow itself. During a tire rotation or oil change, look behind the wheel at the strut assembly.
- Visual Damage: The boot is visibly torn, cracked, brittle, or completely missing.
- Leaking Strut: If the bellow has been damaged for a while, you may see oily, grimy residue covering the strut body. This indicates the strut itself has failed and is leaking fluid.
- Suspension Noises: A clunking or knocking sound when driving over bumps can be a sign the strut has failed, often as a result of a bad bellow.
- Bouncy Ride: If your Challenger feels unusually bouncy or unstable, the struts have likely lost their damping ability, a problem that starts with a compromised bellow.
Choosing the Right Aftermarket Bellows
For a simple protective part like a strut bellow, you don't need to pay a premium for the OEM Mopar part. A quality aftermarket brand provides the same level of protection, often at a better price.
- Brand Quality: KYB is a well-respected brand that manufactures parts equivalent to original equipment. Their strut boot kits are made from durable materials designed to protect the strut shaft from debris and prevent leaks. For the 2019-2023 Challenger, KYB is a reliable and cost-effective choice.
Pro Tip: Replace in Pairs
Suspension components should always be replaced in pairs (both front struts or both rear shocks) to ensure even handling and performance. If you are replacing one strut bellow, it is best practice to replace the other side at the same time. Since the labor is nearly identical to replacing the entire strut, consider replacing the complete strut assemblies if your vehicle has over 80,000 miles.
Cost to Replace Dodge Challenger Strut Bellows (2019-2023)
The cost is dominated by labor. Replacing just the bellow requires the full disassembly of the strut and spring, which is a time-consuming job.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Bellows (KYB) | $31.69 |
| Shop Labor | $220 - $350 |
| Total Estimated Cost | $250 - $380+ |
Note: Labor costs are for replacing one side. Costs can vary based on your location and the shop's hourly rate. Full strut replacement labor is very similar.
Frequently Asked Questions
Can I drive with a torn strut bellow?
Yes, you can drive with a torn bellow, but it's not recommended for long. The bellow itself doesn't affect driving, but its absence will cause the strut to wear out much faster. This will lead to poor handling, longer braking distances, and an unsafe ride.
Should I replace just the bellow or the whole strut assembly?
If your Challenger has low mileage (under 50,000 miles) and the strut is not leaking or showing signs of failure, replacing only the bellow is a reasonable option. However, because the labor is the same, if your vehicle has higher mileage, it is more cost-effective in the long run to replace the entire strut assembly.
Is there a recall on the 2019-2023 Challenger suspension?
No, there are no active recalls or widespread Technical Service Bulletins (TSBs) for the suspension struts or bellows on 2019-2023 Dodge Challenger models. A TSB for a knocking noise on some 2023 models was related to control arm bushings, not the struts.
Can I replace a strut bellow myself?
This is an advanced DIY job. It requires removing the entire strut assembly from the vehicle and using a special tool called a spring compressor to safely remove the coil spring. Spring compressors can be very dangerous if used improperly. This job is best left to experienced mechanics with the correct tools.
Technical Specifications

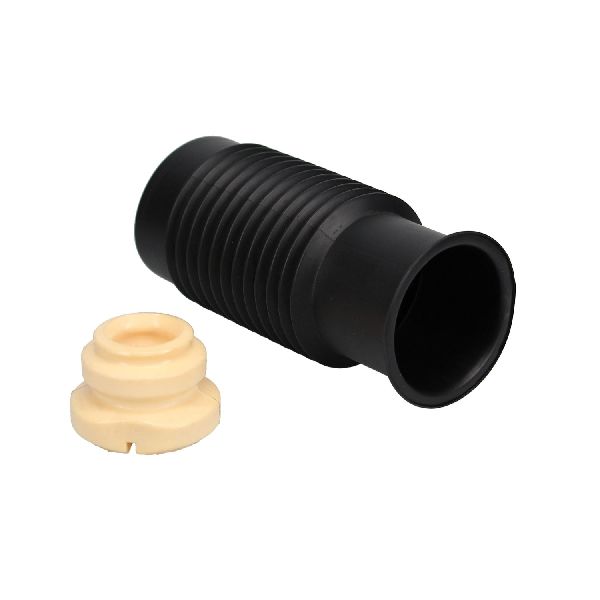

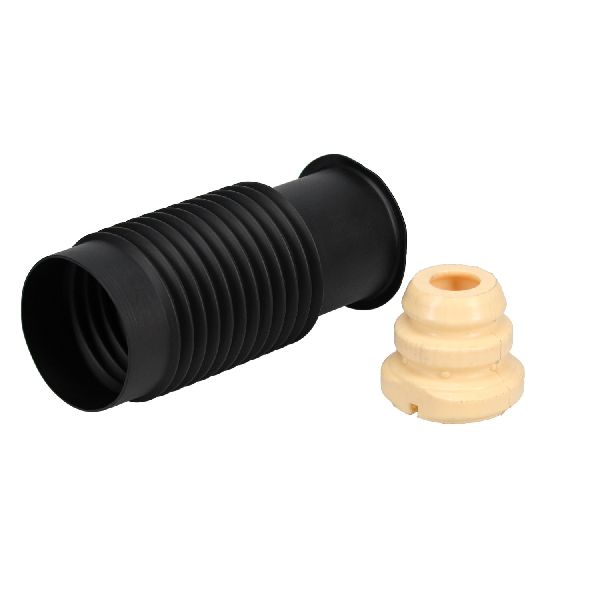

The strut bellow is a flexible, protective boot, typically made of durable plastic or rubber, that includes an internal foam bump stop. It is designed to fit over the strut's piston rod.
