A Guide to the 2019-2024 Ford Expedition Front HVAC Blower Motor
If your Expedition's vents have stopped blowing air, here is what you need to know before replacing the front blower motor.
- Symptoms often include no airflow, weak airflow, or strange noises from the passenger dashboard area.
- There are no recalls for the 2019-2024 model, but a water leak TSB (20-2170) can cause blower motor failure.
- Consider replacing the blower motor resistor at the same time as the motor to prevent a repeat failure.
- The job is DIY-friendly for many, located behind the glove box and held by three 8mm screws.
Is Your Expedition's Blower Motor Failing?
When the blower motor in a 2019-2024 Ford Expedition starts to fail, the signs are usually obvious. Because this part is responsible for pushing air through the vents, a bad motor will directly impact your ability to heat or cool the cabin.
- No Air From Vents: The most common symptom is a complete lack of airflow from the front vents, even when you can hear the fan speed change.
- Weak Airflow: The air coming from the vents is much weaker than usual, even with the fan set to high.
- Intermittent Operation: The fan may cut out and stop working, then start again later. Some owners report this happens after driving for 15-20 minutes.
- Unusual Noises: Squealing, grinding, or rattling sounds from the passenger side dashboard area when the fan is on point to a mechanical issue inside the motor.
- Burning Smell: A burning smell from the vents can indicate an overheating motor, which is a serious symptom that should be addressed immediately. 🎬 Watch this guide to identify common bad blower motor symptoms.
A Note on a Previous Generation Recall
Ford issued a major safety recall (NHTSA #22V648) for the front blower motor in 2015-2017 Expeditions due to a risk of fire. While this recall does not apply to the 2019-2024 models, it highlights the importance of addressing blower motor issues promptly, especially if you smell burning or see smoke.
Known Issues and Service Bulletins
While there are no recalls for the 2019-2024 Expedition's blower motor, Ford has issued Technical Service Bulletins (TSBs) for related HVAC issues. TSB 20-2170 addresses a water leak on the right front floor from a clogged evaporator drain. This water can drip onto the blower motor and its electronics, causing premature failure. Another TSB (22-2089) notes issues of poor A/C performance and loss of airflow that could be related to the blower system.
Choosing the Right Aftermarket Blower Motor
When replacing the blower motor, you have a choice between the original equipment (OEM) part from Motorcraft and several aftermarket brands. For this specific part, the choice often comes down to budget and your preference for OEM fit.
- Motorcraft (OEM): This is the same part your Expedition was built with. It guarantees a perfect fit and original performance. However, it is the most expensive option.

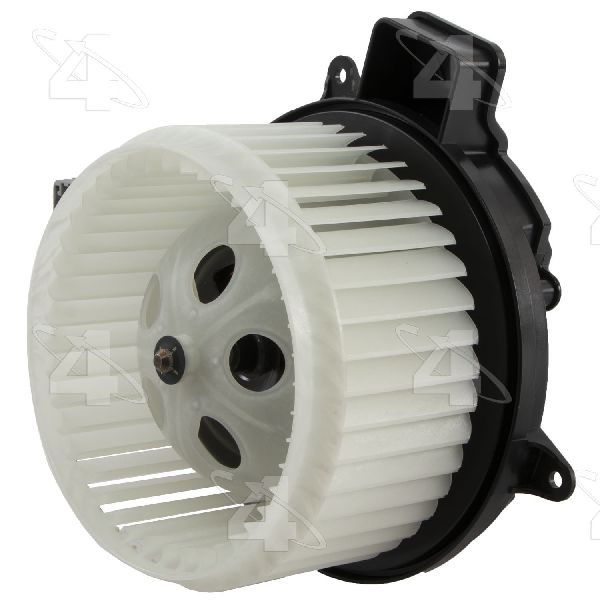

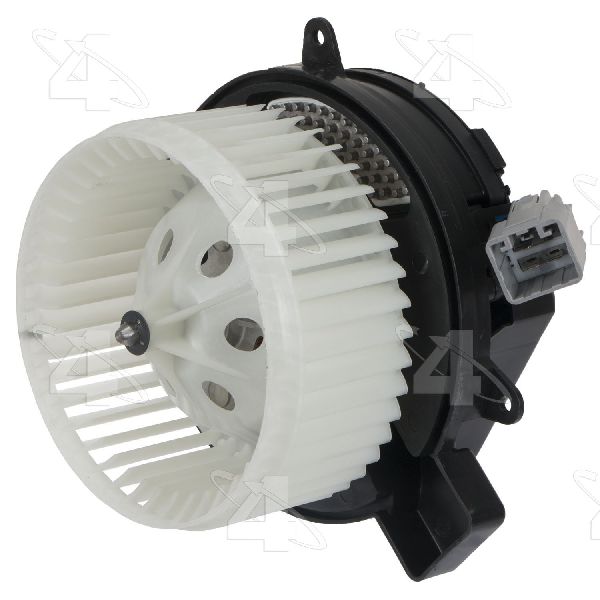

- Four Seasons: A major aftermarket manufacturer of climate control parts. Quality is generally considered good, and some forum users have noted that their parts can be identical to OEM, just in a different box.

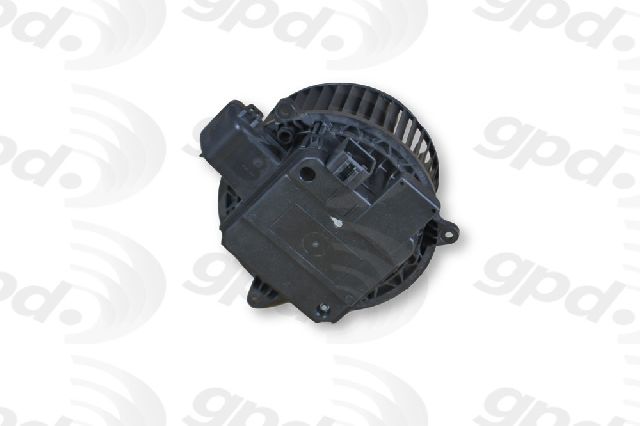

- Global Parts (GPD): Another brand specializing in climate control systems. They are known for providing a good balance of quality and value, with parts tested to meet or exceed original specifications.
Pro Tip: Many technicians recommend replacing the Blower Motor Resistor (also called a speed controller) at the same time as the motor. A failing motor can draw too much power and damage the resistor. Replacing them together can prevent you from having to do the job twice.
🎬 See this secret tip for replacing your blower motor resistor.Ford Expedition Blower Motor Replacement Cost
The cost to replace the blower motor depends on the part you choose and whether you do the work yourself.
| Part Type | Estimated Part Cost | Estimated Labor Cost |
|---|---|---|
| New OEM (Motorcraft) | $300 - $360 | $82 - $120 |
| New Aftermarket (Four Seasons, Global Parts) | $86 - $234 |
Cost estimates are based on market research and may vary by location and supplier.
Frequently Asked Questions
Can I replace the blower motor myself?
Yes, this is a DIY-friendly job for many people. The blower motor is located under the passenger side dashboard and is held in by three 8mm screws and an electrical connector. The main difficulty can be working in a tight space and maneuvering the motor around insulation. The job typically takes about an hour.
What is a blower motor resistor and why should I replace it?
The blower motor resistor (or controller) controls the fan speed. When it fails, the fan may only work on the highest setting or not at all. An aging blower motor can overheat and destroy a new resistor. Because of this, it's often recommended to replace both parts at once to ensure a lasting repair.
Is there a recall for the 2019-2024 Expedition blower motor?
No. As of early 2026, there are no open recalls for the HVAC blower motor on the 2019-2024 Ford Expedition. There was a well-known recall for the previous generation (2015-2017 models).
Why does my fan work but no air comes out?
If you can hear the fan running but feel no air, the problem might be a stuck blend door or a frozen evaporator core. A clogged cabin air filter can also severely restrict airflow. It's a good idea to check the cabin air filter first, as it's the easiest and cheapest item to inspect.
Helpful Videos
Technical Specifications
OEM Part Numbers: JL1Z-19805-A MM-1378 FL3Z-19805-F
The front HVAC Blower Motor for the 2019-2024 Ford Expedition is a brushless motor that includes the fan cage (impeller). It is located on the passenger side, under the dashboard.
