Ford Ranger A/C Condenser Guide (2019-2024)
Is your Ranger's A/C blowing warm? Here's what you need to know about fixing it right.
- A bad A/C condenser is a common cause of warm A/C in a Ranger, but so is a failed blend door actuator, which should be ruled out first.
- Replacement is not a simple DIY job because the system's R-1234yf refrigerant must be handled by a professional with special equipment.
- If the A/C compressor has failed, the condenser must be replaced to prevent debris from damaging the new compressor.
- Quality aftermarket condensers offer a significant cost saving over OEM parts with little to no difference in performance for this component.
Is Your Ranger's A/C Blowing Warm Air?
A failing A/C condenser is a common reason for the air conditioning to stop working in a 2019-2024 Ford Ranger. Because it sits at the very front of the truck, it's exposed to rocks, road debris, and bugs, which can cause damage or block airflow. Understanding the signs of a bad condenser can help you figure out if it's the source of your A/C troubles.
🎬 Check this video to find your A/C fuses and relays.Don't Mistake It for a Blend Door Problem
A very common issue, especially on 2019-2020 Rangers, is a failed blend door actuator inside the dashboard. This part controls the temperature of the air entering the cab. If it fails, your A/C might blow warm even if the condenser and the rest of the system are fine. A key sign of a bad blend door actuator is a clicking or whirring noise from behind the dash. 🎬 Watch: Hear the ticking noise caused by a bad actuator. Diagnosing this correctly can save you from replacing parts you don't need.
🎬 See how to replace the blend door actuator yourself.Choosing the Right Aftermarket Condenser
When it's time for a replacement, you'll find both OEM (Original Equipment Manufacturer) and aftermarket options. For the Ranger, a quality aftermarket condenser can be a smart, cost-effective choice.
- OEM: Made by Ford or its direct supplier. You're guaranteed an exact fit and original quality, but it comes at the highest price.

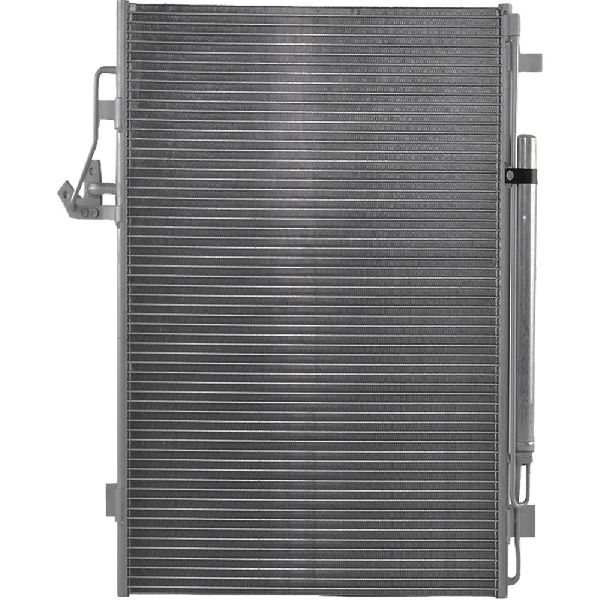

- Aftermarket: Made by other companies, like Global Parts. These are designed to fit and function like the original but are usually much more affordable. Quality aftermarket brands are often leak-tested and designed to meet or exceed original standards. Given that the condenser's main job is straightforward heat exchange, a reputable aftermarket part offers excellent value without a significant performance trade-off.
Pro Tip: If your A/C compressor failed and sent metal debris through the system, you must replace the condenser. Debris can get trapped in the small passages of the old condenser and will destroy your new compressor. Most warranties for new compressors are voided if the condenser and receiver/drier are not replaced at the same time.
| Part Type | Estimated Cost |
|---|---|
| New OEM | $296 - $484 |
| New Aftermarket | $172 - $227 |
| Shop Labor | $174 - $255 |
Known Issues, Recalls, and TSBs
While there are no specific recalls for the A/C condenser on the 2019-2024 Ford Ranger, there are a few related items to be aware of:
- HVAC Blower Motor Recall (19S34 / 20S12): Ford issued recalls for the HVAC blower motor on some 2019 Rangers due to a risk of an electrical short that could cause a fire. This does not affect the condenser itself but is an important part of the overall HVAC system history.
- TSB for A/C Performance with Remote Start (SSM 50293): Some 2019-2021 Rangers could have poor A/C performance when using the remote start function. This was due to a software issue in the control module (FCIM) and is corrected by a dealer software update.
Frequently Asked Questions (FAQ)
Can I replace the A/C condenser myself?
This is a difficult job for most DIY mechanics. While the physical replacement involves removing the fan shroud and tilting the radiator, the main challenge is the refrigerant. The A/C system must be professionally evacuated before you start work and then properly recharged and leak-tested after. These trucks use R-1234yf refrigerant, which requires special, expensive equipment. For safety and legal reasons, handling refrigerant should be left to certified professionals.
What are the most common signs of a bad A/C condenser?
The most common symptom is your A/C blowing warm or not-so-cold air. You might also notice the A/C works when you're driving at speed but gets warm when you're stopped in traffic. In cases of a leak, you may see an oily residue on the condenser fins. A major leak will cause the A/C to stop working altogether.
Do I need to replace anything else with the condenser?
Yes. It is highly recommended to replace the A/C receiver/drier (or accumulator) anytime the sealed refrigerant system is opened. The drier contains a desiccant that absorbs moisture, and it becomes saturated once exposed to the atmosphere. Many aftermarket condensers come with a new drier already attached.
Is a small water puddle under my truck a sign of a leak?
A puddle of clear, odorless water under the passenger side of the truck is normal, especially in humid weather. This is just condensation draining from the evaporator, not a refrigerant leak. A refrigerant leak would be oily and would likely not be visible as a puddle on the ground.
Helpful Videos
Technical Specifications
OEM Part Numbers: KB3Z-19712-A KB3Z-19712-B
Refrigerant Type: R-1234yf. Refrigerant Capacity: Approximately 0.625 kg (22.05 oz). Most aftermarket condensers for this vehicle are a direct-fit, parallel flow design and include an integrated receiver/drier.
