Ford Ranger (2019-2024) Engine Coolant Temperature Sensor: A Complete Guide
Is your Ranger's temperature gauge acting strange or is your check engine light on? Here's what you need to know.
- A bad ECT sensor on your Ranger can cause a check engine light, poor MPG, and an incorrect temp gauge reading.
- For this generation of Ranger, trouble code P0128 is more often caused by a bad thermostat than the sensor itself.
- Replacement is simple and can be done at home in under an hour with basic tools.
- There are no specific recalls for this sensor, but using a quality aftermarket brand like Delphi or Standard Ignition is a reliable alternative to OEM.
Symptoms of a Failing ECT Sensor in Your Ranger
When the coolant temperature sensor starts to fail, your truck's computer gets bad information. This can cause a variety of noticeable problems. While some issues are minor, others can mimic more serious engine trouble.
- Check Engine Light: This is the most common sign. You may see codes like P0117 (Sensor Circuit Low), P0118 (Sensor Circuit High), or P0128 (Coolant Temperature Below Thermostat Regulating Temperature). While code P0128 is frequently caused by a stuck thermostat, a faulty sensor can also be the culprit.
- Erratic Temperature Gauge: The needle on your dashboard might suddenly jump to hot and then quickly return to normal, or it may not move at all.
- Poor Fuel Economy: If the computer thinks the engine is cold when it's not, it will inject more fuel than necessary, hurting your gas mileage.
- Black Smoke from Exhaust: In some cases, a very rich fuel mixture caused by a bad sensor reading can result in black smoke from the tailpipe.
- Hard Starting: The engine may be difficult to start, especially when it's cold, because the computer isn't providing the right fuel mixture for starting.
Known Issues, Recalls, or TSBs
As of early 2026, there are no specific recalls or Technical Service Bulletins (TSBs) from Ford or the NHTSA for a widespread failure of the engine coolant temperature sensor on the 2019-2024 Ford Ranger. There is an active recall for the engine *block heater* on these trucks, which can crack and leak coolant, but this is a completely separate component.
Pro Tip: Check the Thermostat First
For the 2019-2024 Ranger, the trouble code P0128 is a common issue discussed by owners. In the majority of cases, the cause is a thermostat that is stuck open, not a bad sensor. If you have this code, consider inspecting or replacing the thermostat as a primary step.
Choosing the Right Aftermarket ECT Sensor
You don't have to buy the part from a Ford dealer. Several reputable aftermarket brands offer quality replacements. For a critical sensor like this, quality matters more than saving a few dollars.
- Premium Aftermarket (OEM-Equivalent): Brands like Delphi and Standard Ignition (SMP) are excellent choices. They are major suppliers of electronic parts to vehicle manufacturers and are known for their reliability and precise sensor readings. Choosing one of these is a safe bet for long-term performance.

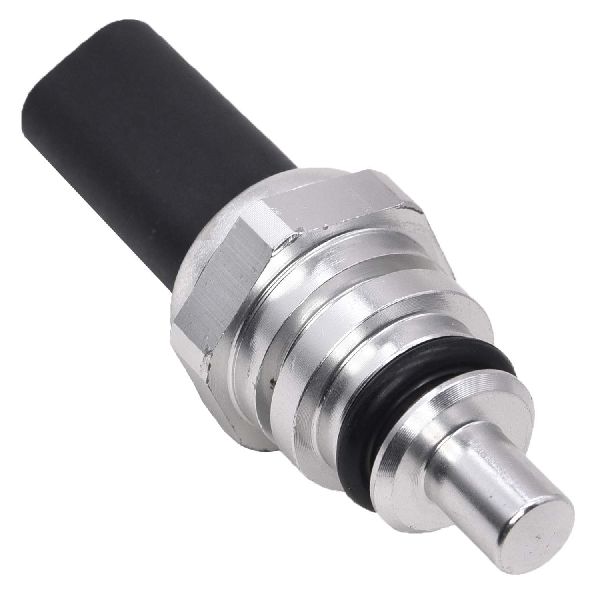

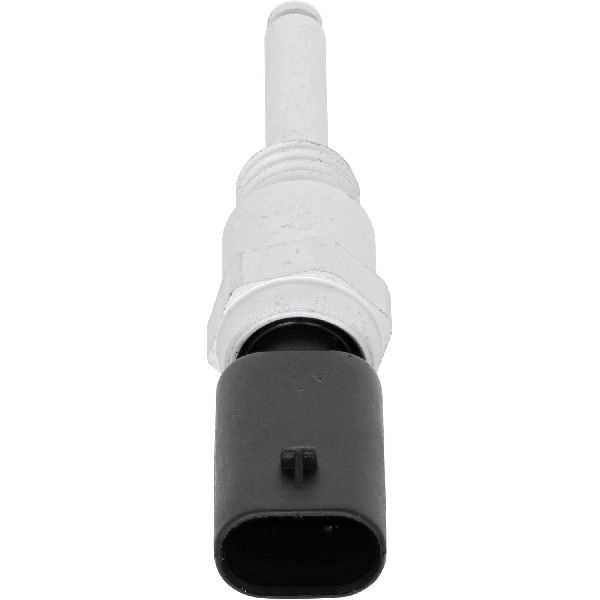

- Quality Value Aftermarket: Brands such as Walker Products and Holstein provide a good balance of performance and price. They are solid options for a reliable repair without the premium cost. Holstein, for example, promotes a low failure rate and a 3-year/36,000-mile warranty.
- Economy Brands: A brand like Global Parts will be your most budget-friendly option. While functional, they are best suited for situations where cost is the primary concern.
Cost of Replacing a Ford Ranger ECT Sensor
| Part Type | Estimated Cost |
|---|---|
| New OEM (Motorcraft) | $30 - $55 |
| New Aftermarket | $12.96 - $68.82 |
| Shop Labor | $75 - $150 |
Frequently Asked Questions (FAQ)
Where is the ECT sensor located on the 2019-2024 Ranger?
On the 2.3L EcoBoost engine, the ECT sensor is typically found on the driver's side of the engine, toward the back of the cylinder head. It may be partially hidden by a heat shield.
Can I replace the ECT sensor myself?
Yes, this is a very DIY-friendly job for someone with basic tools. The sensor simply unscrews from the engine, and a new one is screwed in. You may need to remove the air intake hose for better access. A small amount of coolant will leak out when you remove the old sensor, so have the new one ready to install quickly.
What happens if I don't replace a bad ECT sensor?
You can continue driving, but it's not recommended for long. Your truck will run poorly, get bad gas mileage, and potentially fail an emissions test. Most importantly, you won't have an accurate reading of your engine's temperature, meaning you could overheat the engine without warning and cause severe damage.
Is an aftermarket sensor good enough for my Ranger?
Yes, as long as you choose a quality brand. A sensor from a reputable manufacturer like Delphi or Standard Ignition will perform just as well as the original Motorcraft part. For a sensor this critical and inexpensive, it's best to avoid the absolute cheapest options to ensure accuracy and a long service life.
Helpful Videos
Technical Specifications
OEM Part Numbers: 9U2Z-12A648-A
Note: The 2019-2024 Ranger uses both an Engine Coolant Temperature (ECT) sensor and a Cylinder Head Temperature (CHT) sensor. This guide is for the ECT sensor. Always verify the correct part number for your vehicle's VIN before ordering.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
