Ford Ranger Radiator: A Guide for 2019-2024 Models
Keep your Ranger's 2.3L EcoBoost engine from overheating by choosing the right replacement radiator.
- The stock radiator uses plastic end tanks which can crack over time; all-aluminum aftermarket options offer better durability.
- For towing or heavy use, upgrading to a heavy-duty radiator from a brand like CSF or Mishimoto is a smart investment to prevent overheating.
- No major recalls exist for the radiator itself, but check for leaks from the engine block heater, a known recall issue.
- Replacement is a feasible DIY job for those with mechanical experience, typically taking 2-3 hours.
Is Your Ranger's Radiator Failing?
A failing radiator can lead to serious engine trouble. The stock radiator on the 2019-2024 Ranger is a single-row aluminum core with plastic end tanks. While generally reliable for daily driving, the plastic components can become brittle over time and crack, leading to leaks. Watch for these common symptoms:
- Engine Overheating: The most obvious sign. If your temperature gauge is climbing into the red, your radiator may not be cooling effectively.
- Visible Coolant Leaks: Puddles of bright green or orange fluid under the front of your truck are a sure sign of a leak. Check the radiator itself, as well as all connected hoses.
- Low Coolant Level: Frequently needing to top off your coolant reservoir indicates a leak somewhere in the system. Sometimes, a bad reservoir cap is the culprit, but a slow leak from the radiator is also common.
- Physical Damage: Bent fins from road debris or cracks in the plastic end tanks are clear signs you need a replacement.
Known Issues & Recalls
While there are no widespread recalls specifically for the radiator on the 2019-2024 Ford Ranger, there is a recall for the engine block heater on some models. This issue can cause a coolant leak, which could be mistaken for a radiator problem. 🎬 Watch: How to diagnose a Ford Ranger coolant leak It's important to verify the source of any leak before ordering parts. Additionally, some owners have reported coolant loss from the EGR cooler or cracked coolant tanks, so a full system pressure test is recommended to pinpoint the exact failure point.
🎬 Watch: How to pressure test your cooling systemChoosing the Right Aftermarket Radiator
When it's time for a replacement, you have several options beyond going back to the dealer. Aftermarket radiators often provide similar or even better performance for less money.
Tier 1: Performance & Heavy-Duty
These radiators are for owners who tow heavy loads, go off-roading, or have modified their engine for more power. They offer superior cooling and durability.
- Mishimoto: Known for performance upgrades, Mishimoto offers radiators with thicker, dual-row cores that significantly increase coolant capacity and cooling efficiency. They are fully TIG-welded for strength, eliminating the plastic end tanks that can fail on the stock unit.
- CSF: CSF provides heavy-duty all-aluminum radiators that are a direct drop-in fit. They feature a 2-row, 42mm core, which is a substantial upgrade over the stock 1-row, 28mm core, increasing the volume by about 38%. This is an excellent choice for those who put extra strain on their trucks through towing or overlanding.
Tier 2: OE-Quality Replacements
These brands offer direct replacements that meet or exceed original equipment (OE) specifications. They are a reliable and cost-effective choice for daily driving and light-duty use.

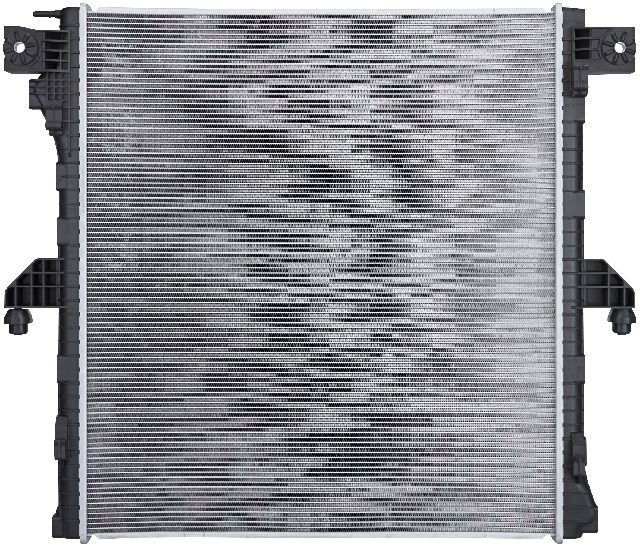

- Spectra: A very common and reputable brand for OE-style replacements. Spectra radiators are known for their good fit and quality, providing a dependable solution that functions like the original.

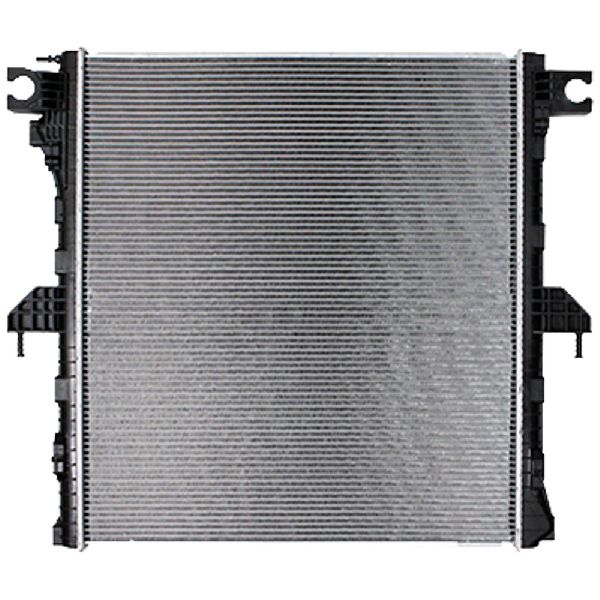

- Global Parts (GPD) / TYC: These brands offer affordable, direct-fit radiators designed to function just like the factory part. They are a good budget-friendly option for getting your truck back on the road without issues.
Cost of Replacing Your Ranger's Radiator
| Part Type | Estimated Cost |
|---|---|
| New OEM (Motorcraft) | $305 - $460 |
| New Aftermarket | $195 - $700 |
| Shop Labor | $193 - $283 |
Pro Tip: When replacing your radiator, it's also a good idea to replace the upper and lower radiator hoses and the thermostat. This can save you from having to do another cooling system repair in the near future.
Frequently Asked Questions
Is it hard to replace a Ford Ranger radiator?
For a DIYer with basic tools, the job is manageable. It typically takes 2-3 hours. You'll need to drain the coolant, remove the fan shroud, disconnect the hoses, and unbolt the radiator. 🎬 See this step-by-step radiator replacement walkthrough One key step is that the A/C condenser is attached to the radiator, but you can usually unbolt it and move it aside without disconnecting the A/C lines, which saves you a trip to the shop.
Do I need a special radiator for towing?
While the stock radiator is adequate for occasional light towing, a heavy-duty aftermarket radiator from a brand like CSF or Mishimoto is highly recommended if you tow frequently or pull heavy loads. The increased cooling capacity will help protect your engine and transmission from overheating under strain.
What type of coolant should I use in my 2019-2024 Ranger?
Your Ranger requires Motorcraft Yellow coolant. It is crucial to use the correct type of coolant to prevent corrosion and deposits from forming inside the cooling system. Always mix with distilled water according to the instructions unless you are using a pre-mixed 50/50 formula.
Is the transmission cooler part of the radiator?
The 2019-2024 Ranger with the 10-speed automatic transmission has an external transmission oil cooler, but the radiator still plays a role in overall temperature management under the hood. Some aftermarket radiators may not include connections for a transmission cooler if they are designed for multiple applications. Always verify the part is correct for your specific vehicle before purchasing.
Helpful Videos
Technical Specifications
OEM Part Numbers: RAD-188 KB3Z-8005-A
The OEM radiator is a single-row aluminum core with plastic tanks. Performance aftermarket options are typically dual-row, all-aluminum construction for increased capacity and durability.
