A Guide to the Engine Water Pump for the 2019-2025 Audi A4 Quattro
Understand the common failure points of the A4's water pump and how to choose the right aftermarket replacement to protect your engine.
- The water pump and thermostat are a single plastic unit on the 2.0T engine, and the housing is prone to cracking.
- Always replace the complete assembly, not just the pump or thermostat. Also replace the small drive belt.
- A low coolant light is the most common early warning sign; do not ignore it.
- Choose top-tier aftermarket brands like INA, Hepu, Graf, or Saleri for a reliable, long-lasting repair.
Understanding the Audi A4 Quattro Water Pump
If you own a 2019-2025 Audi A4 Quattro, it's important to be aware of the engine's water pump. This isn't a simple wear-and-tear part; it's a known weak point. The original factory part combines the water pump and thermostat into one large plastic assembly. Over time, constant exposure to heat causes this plastic housing to become brittle and develop cracks, leading to coolant leaks. The failure is so common that class-action lawsuits were filed for earlier models with the same engine design, leading to extended warranty coverage for some owners.
Symptoms of a Failing Water Pump
A failing water pump can cause serious engine damage if ignored. Watch for these warning signs:
🎬 See a visual guide on identifying common water pump symptoms.- Low Coolant Warning Light: This is often the first sign. You may find yourself needing to top off the coolant reservoir more frequently.
- Visible Coolant Leaks: You might see pink or purple puddles (the color of Audi's G13/G12 coolant) under the front of your car. The leak often originates from the pump assembly on the driver's side of the engine. 🎬 Watch this breakdown of coolant loss and thermal management issues.
- Sweet Smell: Leaking coolant often produces a distinct sweet smell from the engine bay or through your car's vents.
- Engine Overheating: If the pump fails completely, the temperature gauge will rise into the red zone. If this happens, pull over and shut off the engine immediately to prevent catastrophic damage.
- Whining or Grinding Noises: Unusual noises from the front of the engine can indicate a failing bearing inside the pump.
Do Not Ignore Symptoms
A small coolant leak can become a major failure without warning. Driving with a known coolant leak risks overheating, which can lead to warped cylinder heads and complete engine failure.
Choosing the Right Aftermarket Water Pump
When replacing the water pump, you must replace the entire assembly, including the thermostat. Do not try to replace just one component. Aftermarket options can offer better value and sometimes improved materials over the original factory part.
Brand Quality Tiers
Not all aftermarket brands are created equal. Here’s a breakdown of reputable brands for your Audi:
- OEM-Quality Brands (Top Tier): These brands are often original equipment manufacturers for Audi or are known for equivalent quality. They are a reliable choice for longevity.

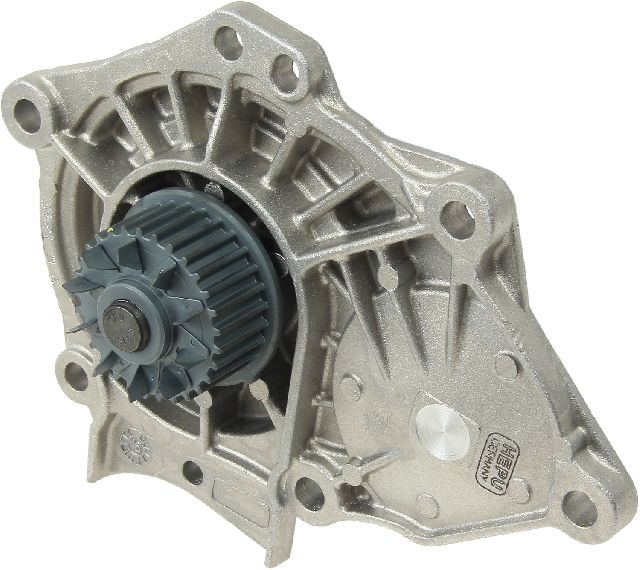

- Hepu: A German brand often recommended in forums for its quality.
- Graf: Known for producing pumps with metal impellers and sometimes all-metal housings, which can be an upgrade over the OEM plastic.

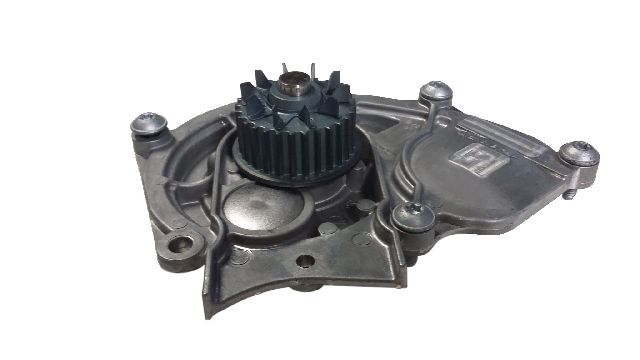

- Saleri: An Italian brand that is an OEM supplier to many European carmakers.
- INA: A German manufacturer (part of the Schaeffler group) that is a major OEM supplier. Their kits are often considered equivalent to the genuine Audi part.
- Trusted Aftermarket Brands (Mid Tier): These are well-known brands with a solid reputation for quality and reliability.
- Gates: A leading name in belts and cooling system components, Gates pumps are built to meet or exceed OEM specifications.

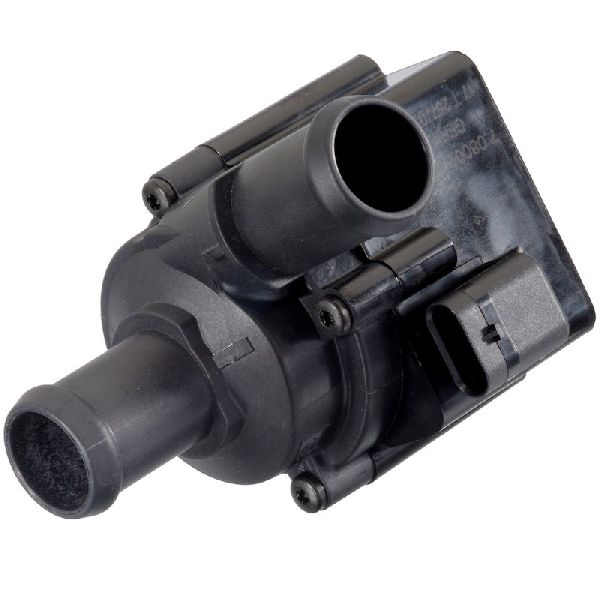

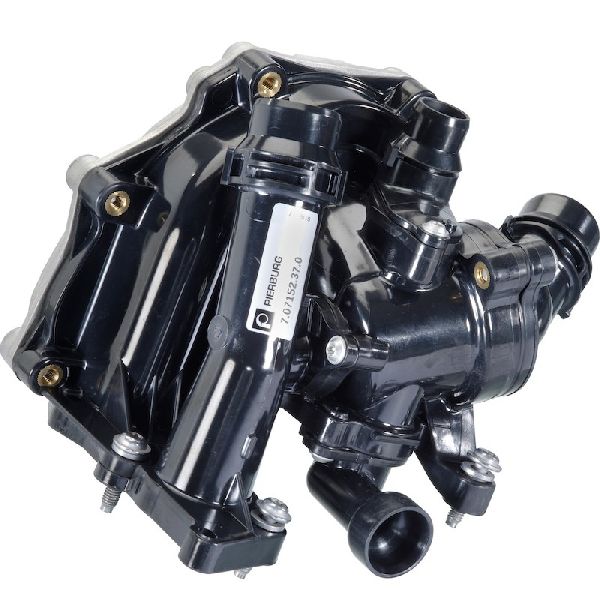

- Hella: A major German OEM supplier for lighting and electronics, Hella also offers quality mechanical parts like water pumps.
- Value-Oriented Brands (Economy Tier): These brands offer a lower price point, but quality can be more variable.
- Beck Arnley: This brand often re-packages parts from various manufacturers, which can include OEM suppliers or other aftermarket sources. Quality depends on the specific part's origin.
- US Motor Works: Generally considered a budget-friendly option.
Pro Tip: Check for the Latest Part Number
Audi has released several updated versions of the water pump assembly to address the leaking issue. When buying, ensure you are getting the latest revision (part numbers ending in a later letter, like 06L121111P) or a quality aftermarket equivalent.
Cost of Replacement
| Item | Estimated Cost |
|---|---|
| New Aftermarket Water Pump Assembly | $68.88 - $511.37 |
| New OEM Water Pump Assembly | $350 - $650 |
| Shop Labor | $514 - $754 |
| Total Estimated Cost (Shop) | $600 - $1,400+ |
Frequently Asked Questions (FAQ)
Is this a DIY-friendly repair?
This is an advanced DIY job. It requires draining the cooling system, removing several components like the intake manifold to gain access, and using a torque wrench for reassembly. It typically takes a professional 4-6 hours. For most owners, professional installation is recommended.
🎬 Watch this step-by-step DIY replacement guide for B9 Audi models.Should I replace anything else at the same time?
Yes. Since the water pump is driven by a small toothed belt connected to the engine's balance shaft, it is highly recommended to replace this belt at the same time. You will also need new coolant to refill the system. Use only Audi-specified G12, G12++, or G13 coolant.
Are there any recalls for the 2019-2025 A4 water pump?
As of early 2026, there are no specific recalls for the main engine water pump on the 2019-2025 Audi A4 Quattro. There were recalls for an *electric auxiliary* coolant pump on earlier models (up to 2017), but this is a separate part from the main engine water pump assembly being discussed. However, the widespread nature of the problem on the EA888 engine has led to class-action lawsuits and extended warranties for previous model years, which may influence future policies.
Is a metal water pump better than a plastic one?
For this specific application, yes, an all-metal (aluminum) housing is generally considered a durable upgrade over the OEM plastic design that is prone to cracking. Brands like Graf are known for offering these metal upgrades. However, even high-quality plastic replacements from brands like INA or Hepu are reliable, as they are made to the latest OEM specifications.
Helpful Videos
Technical Specifications
OEM Part Numbers: 06L121111P 06L121111M 06L121111L 06L121111K 06L121111J 06L121111H 06L121012A 06K121011B
Integrated unit containing the main engine water pump and electronically controlled thermostat. Driven by a small, toothed belt from the balance shaft.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
