Chevrolet Equinox 2019-2025 Accessory Drive Belt Tensioner Replacement Guide
Hearing a squeal or rattle from your Equinox's engine? Your belt tensioner could be the problem.
- Listen for squealing or rattling noises from the engine; these are the earliest signs of a failing tensioner on your Equinox.
- High-quality aftermarket brands like Gates and Continental offer OEM-level performance for a lower price.
- Always replace the serpentine belt when you replace the tensioner to save on future labor costs and ensure system longevity.
- If the tensioner fails completely, your Equinox will become undrivable due to the engine overheating and lack of electrical charging.
Is Your Equinox's Belt Tensioner Failing?
A belt tensioner is a wear item. The internal spring weakens over time, and the pulley bearing can wear out. For 2019-2025 Chevrolet Equinox owners, certain sounds and symptoms are clear signs that it’s time for an inspection.
Common Failure Symptoms
🎬 Watch: 7 common symptoms of a failing belt tensioner- Noises from the Engine Bay: The most common sign is new noises coming from the passenger side of the engine. You might hear a high-pitched squealing or chirping sound, especially when you first start the car or when you accelerate. A worn-out bearing in the tensioner's pulley can also cause a rattling, grinding, or humming noise.
- Visible Belt Wear: A weak tensioner can cause the serpentine belt to wear out faster. Look for cracks, frayed edges, or shiny, glazed spots on the belt.
- Accessory Problems: Since the tensioner keeps the belt tight on all the pulleys, a failure can cause problems with other systems. You might notice dimming headlights (from the alternator not spinning correctly), your A/C blowing warm air, or the steering feeling stiff.
- Burning Smell: A strong burning rubber smell can happen if a loose belt is slipping and creating intense friction on the metal pulleys. If you smell this, you should pull over safely and inspect the situation. 🎬 See more signs of a bad drive belt tensioner
Choosing the Right Aftermarket Tensioner
When replacing the tensioner on your Equinox, you have a choice between parts from the original manufacturer (OEM) and aftermarket parts. For this component, high-quality aftermarket brands offer excellent value and reliability.
Accessory Drive Belt Tensioner Replacement Cost
The cost to replace the tensioner on a 2019-2025 Equinox depends on whether you do the work yourself or take it to a shop. The part itself is affordable, but labor will add to the total cost.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Continental, Gates) | $57 - $89 |
| New OEM | $45 - $100 |
| Shop Labor | $120 - $180 |
| Total Professional Replacement | $210 - $280 |
Frequently Asked Questions
Can I replace the Equinox belt tensioner myself?
Yes, this is a DIY-friendly job for someone with basic mechanical skills and tools. Access is typically gained by removing the front passenger wheel and wheel well liner. A 3/8-inch drive ratchet or breaker bar is needed to release the tension, and the part is usually held by a single bolt. Watching a tutorial video for your specific engine (1.5L or 2.0L) is recommended.

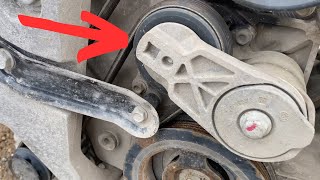

🎬 Watch this 1.5L Equinox serpentine belt replacement walkthroughAre there any recalls for the belt tensioner on the 2019-2025 Equinox?
No. As of early 2026, there are no specific recalls or technical service bulletins (TSBs) from Chevrolet or the NHTSA for the accessory drive belt tensioner on 2019-2025 gas-powered Equinox models.
Should I replace just the pulley or the whole tensioner assembly?
It is best to replace the entire tensioner assembly. The pulley bearing is a common failure point, but the internal spring that provides tension also weakens over time. Replacing the whole assembly ensures all components are new and will last, preventing you from having to do the job again if the spring fails later.
What happens if the tensioner fails completely?
If the tensioner seizes or breaks, the serpentine belt can snap or fall off. This will cause your vehicle to lose power to the alternator, water pump, and A/C immediately. The battery will stop charging, and the engine will quickly overheat, which can cause severe engine damage. You will be stranded.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12638689 55517140

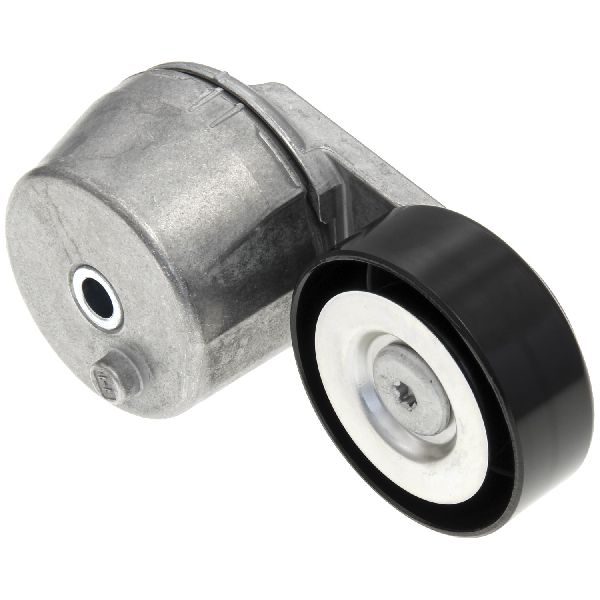

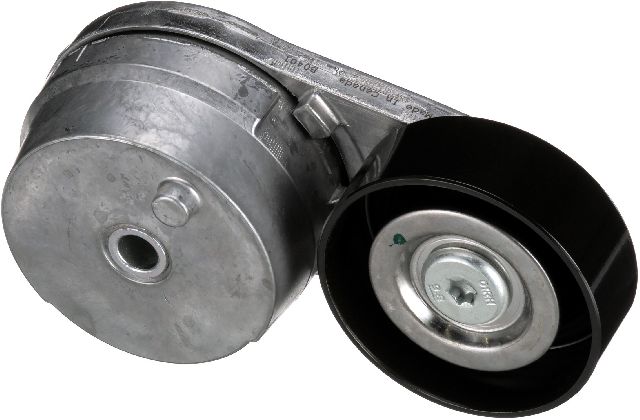

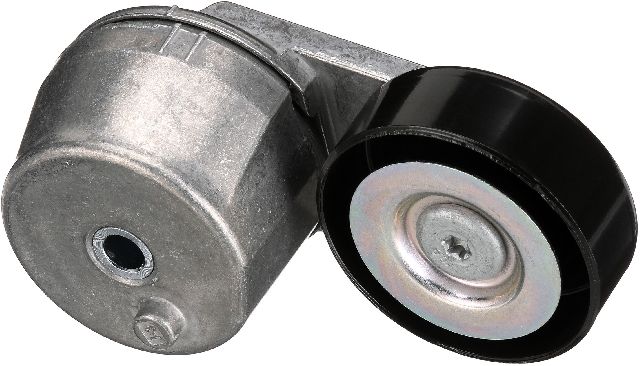

Spring-loaded automatic belt tensioner assembly with pulley. Specific part number varies by engine (1.5L Turbo vs. 2.0L Turbo). Always verify fitment with your vehicle's VIN.
