Ford Ranger (2019-2025) Disc Brake Hardware Kit: A Mechanic's Guide
Don't let worn-out clips and pins ruin your Ranger's brake job—here's what you need to know.
- Always replace the disc brake hardware kit when changing brake pads and rotors to prevent noise and uneven wear.
- Choose an aftermarket kit made from stainless steel, like those from Dynamic Friction, for better corrosion resistance at a lower cost than OEM.
- Be aware of known Ranger issues like premature rotor warping (TSB SSM 47789) and uneven rear pad wear, which new hardware can help mitigate.
- If performing a DIY rear brake job, remember to put the Electronic Parking Brake (EPB) into service mode using a scan tool.
Why Your Ranger Needs New Brake Hardware
When you're replacing the brake pads and rotors on your 2019-2025 Ford Ranger, skipping the disc brake hardware kit is a common mistake. The original clips and pins are constantly exposed to extreme heat, moisture, and road salt. This causes them to lose their spring tension, rust, and get clogged with brake dust. Worn hardware is a primary cause of brake noise and can lead to the new pads binding in the caliper, causing them to wear out unevenly and much faster than they should.
Symptoms of Failing Brake Hardware
Bad or worn-out brake hardware often shows symptoms that can be mistaken for bad pads or rotors. If you notice these issues, there's a good chance your hardware is the culprit.
- Brake Noise: Annoying squealing, clicking, or rattling sounds, especially at low speeds or when lightly applying the brakes, often point to worn or missing anti-rattle clips.
- Uneven Pad Wear: If you find the inner brake pad is worn down significantly more than the outer pad (a known issue on some Rangers), it's often because rusted or unlubricated guide pins are preventing the caliper from moving freely.
- Vibration or Pulsing: While often caused by warped rotors, binding pads from bad hardware can create similar sensations.
- Dragging Brakes: A caliper that doesn't release properly due to a stuck guide pin can cause a brake to drag, generating excess heat and wear.
Known Issues for 2019-2025 Rangers
Premature Rotor Warping & Rough Pedal: Many owners have reported brake pulsation and vibration. Ford issued a Technical Service Bulletin (TSB SSM 47789) for 2019 models acknowledging a rough brake pedal feel could be due to rotor run-out or corrosion. Using fresh, quality hardware ensures the new pads and rotors work together smoothly, which can help prevent a recurrence.
2025 Model Recall: A safety recall (NHTSA 25V488) was issued for some 2025 Ford Rangers for a faulty Electronic Brake Booster (EBB) module. This can cause a loss of power brake assist. This is a software issue fixed by a dealer, but it's a critical safety item to be aware of.
Choosing the Right Aftermarket Hardware Kit
For a simple but essential part like a hardware kit, you don't need to pay a premium for the OEM Ford-branded box. High-quality aftermarket kits often provide the same or better performance for less money. The key is to look for kits made from stainless steel, which offers superior corrosion resistance compared to the standard plated steel used in some cheaper or older factory parts.
Brands like Dynamic Friction offer affordable kits that use stainless steel materials. For a price point between $12 and $14, these kits provide excellent value and are a smart upgrade to ensure your brake job lasts. They are designed to match factory fit and function, reducing noise and preventing the premature wear issues that can frustrate Ranger owners.
Pro Tip: Lube is Not Optional
When installing your new hardware, make sure to clean all rust and debris from the caliper bracket where the clips sit. Apply a thin layer of high-temperature brake lubricant to the caliper guide pins and to the points on the clips where the brake pad ears make contact. This is essential for smooth, quiet operation.
Cost to Replace Ford Ranger Disc Brake Hardware
| Part Type | Estimated Cost (Per Axle) |
|---|---|
| New Aftermarket (Dynamic Friction) | $12.51 - $13.22 |
| New OEM (Motorcraft) | $25 - $70 (Often included with pad kits) |
| Shop Labor (as part of a brake job) | $190 - $290 |
Note: Labor costs are typically bundled into a full brake pad and rotor replacement job. The hardware itself adds minimal time to the installation.
Frequently Asked Questions (FAQ)
Do I really need to replace the hardware with every brake job?
Yes. It's a cheap insurance policy for your entire brake job. The old clips have been heat-cycled thousands of times and have lost their ability to properly hold the pads, leading to noise and wear. For the low cost of a kit, it's not worth reusing the old parts.
Can bad hardware cause my brake pedal to feel soft?
Typically, no. A soft or spongy pedal is usually caused by air in the brake lines or a failing master cylinder. However, hardware issues like a stuck caliper pin can lead to a long pedal travel before the brakes engage. Some Ranger owners have reported a soft pedal feel that dealers have called a normal characteristic.
What is the Electronic Parking Brake (EPB) service mode?
Rangers in this generation have an Electronic Parking Brake on the rear wheels. You cannot simply push the caliper piston back in like on older vehicles. You must use a diagnostic scan tool to put the EPB into 'Service Mode', which retracts the piston electronically. If you are a DIYer, be aware of this extra step for rear brake jobs.
Is Dynamic Friction a good brand for my Ranger?
Dynamic Friction is considered a reliable aftermarket brand that offers good quality for its price point. For a hardware kit, their use of stainless steel components makes them a solid choice to prevent rust and ensure longevity.
Technical Specifications
OEM Part Numbers: KB3Z-2001-A (Part of Front Brake Pad Kit)

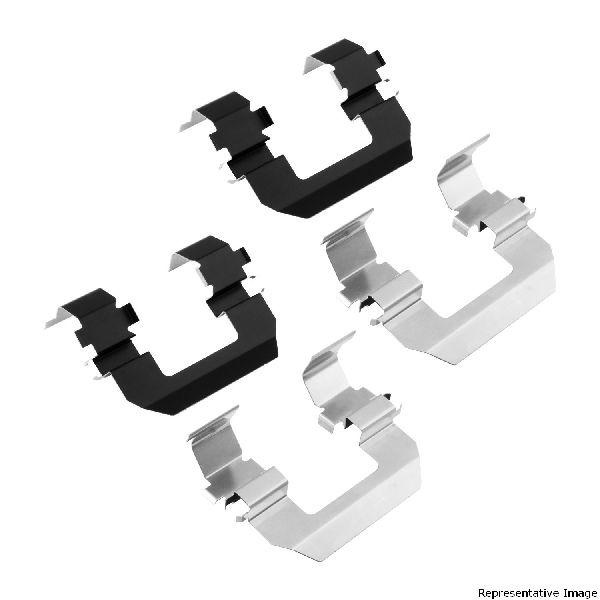

Kit typically includes anti-rattle abutment clips and caliper guide pin boots for one axle. Quality kits use stainless steel for clips.
