A Ford Edge Owner's Guide to 2020-2024 Ignition Coil Replacement
Engine running rough? Learn how to choose the right ignition coil and avoid common replacement mistakes for your Ford Edge.
- A flashing check engine light indicates a severe misfire; pull over and have the vehicle towed to prevent expensive damage.
- For the 2.0L EcoBoost engine, this is a simple DIY repair requiring only basic tools.
- Always replace the spark plug for the corresponding cylinder when you replace a coil.
- Motorcraft (OEM) is the safest bet for quality, but premium aftermarket brands like Delphi and Standard Ignition offer a reliable, cost-effective alternative.
Is Your Ford Edge Telling You It Needs New Ignition Coils?
A failing ignition coil isn't something you can ignore. When a coil starts to go bad on your Edge, the engine can't run properly. You'll notice distinct symptoms because one or more cylinders won't be firing correctly. This is called a misfire. It puts extra strain on your engine and can even damage other expensive parts, like the catalytic converter, if not addressed.
Key Symptoms of a Bad Ignition Coil:
- Rough Idle and Shaking: Your Edge might vibrate or shake noticeably when you're stopped at a light. This is often the first and most common sign of a misfiring cylinder.
- Engine Stuttering or Hesitation: When you press the gas, the vehicle may jerk or hesitate instead of accelerating smoothly.
- Check Engine Light: A bad coil will almost always trigger the Check Engine Light. If the light is flashing, it indicates a severe misfire that requires immediate attention to prevent catalytic converter damage.
- Poor Fuel Economy: Your engine has to work harder to make up for the dead cylinder, causing you to use more gas.
- Trouble Starting: A weak or failed coil can make it difficult to start the engine, especially on cold mornings.
Known Issues & Recalls
As of early 2026, there are no specific ignition coil recalls or widespread Technical Service Bulletins (TSBs) for the 2020-2024 Ford Edge. However, older Ford models have sometimes had issues where a failing coil could damage the Powertrain Control Module (PCM), the engine's computer. While not a documented problem on this specific year range, it highlights the importance of using quality parts and not ignoring misfire symptoms.
Choosing the Right Aftermarket Ignition Coil
When you're shopping for a new ignition coil, you'll see a few options. The choice between them often comes down to budget and how long you plan to keep the car.
Brand Tiers Explained:
OEM (Motorcraft): Motorcraft is Ford's own parts brand. This is the exact part your Edge came with from the factory. It guarantees perfect fit and performance. Many experienced mechanics recommend sticking with Motorcraft for Ford ignition components to avoid compatibility issues. The downside is that it's usually the most expensive option.

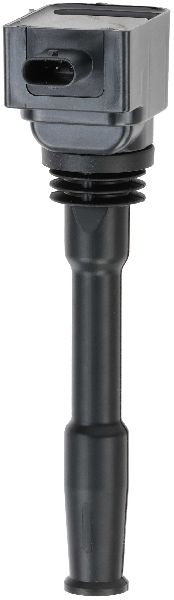

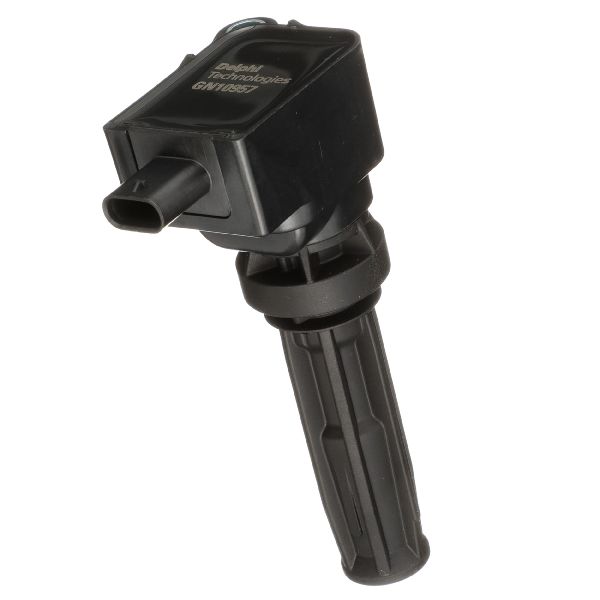

Premium Aftermarket (Delphi, Standard Ignition): Brands like Delphi and Standard Ignition are well-known in the industry. Delphi is often an Original Equipment Supplier (OES) to many car manufacturers, meaning their quality is very high and sometimes they even make the original part for the automaker. Standard Motor Products (SMP) has a long history of making quality ignition parts, though it's best to stick to their standard lines rather than budget-tier options. These brands offer a great balance of quality and price, often meeting or exceeding OEM specifications.

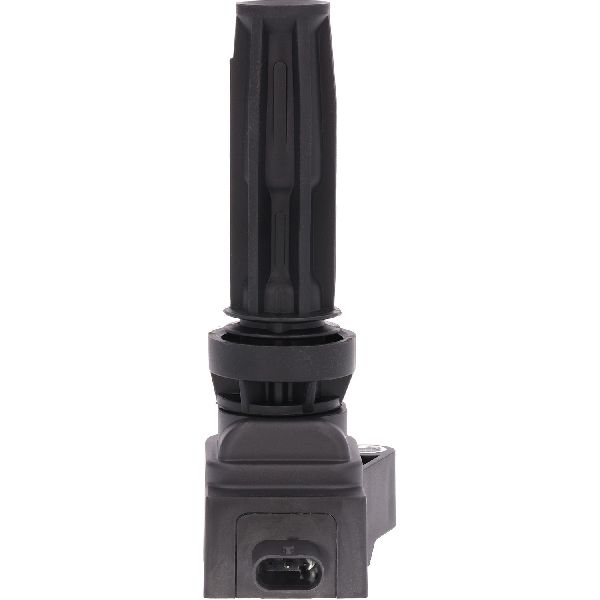

Standard Aftermarket (Global Parts): This category includes more budget-friendly brands. They provide a functional replacement that can get your vehicle back on the road for a lower initial cost. While they are a viable option, their lifespan and performance may not match that of premium or OEM brands.
Pro Tip: Replace Spark Plugs at the Same Time
If you're replacing an ignition coil, it's a smart move to replace the spark plug in that same cylinder. Worn spark plugs put extra strain on ignition coils, causing them to fail prematurely. If your Edge has over 60,000 miles, consider replacing all spark plugs and coils to ensure your ignition system is in top shape.
🎬 Watch this easy walkthrough for replacing your 2.0L spark plugs.Cost of Replacing an Ignition Coil on a 2020-2024 Ford Edge
| Part Type | Cost Range (Per Coil) |
|---|---|
| New OEM (Motorcraft) | $80 - $135 |
| New Aftermarket | $41.59 - $102.90 |
| Shop Labor | $75 - $150 |
Frequently Asked Questions
Should I replace all ignition coils at once?
It's not strictly necessary, but it's often recommended, especially on higher-mileage vehicles. Ignition coils tend to fail around the same time. Replacing them all at once can save you from future breakdowns and repeated labor costs. If one has failed, the others may not be far behind.
Is it hard to replace a Ford Edge ignition coil myself?
For the 2.0L 4-cylinder engine, it's a very easy job. The coils are right on top of the engine and held by a single 8mm bolt. You just need to remove the engine cover, disconnect the electrical connector, undo the bolt, and pull the coil straight out. 🎬 See how to quickly swap out a Ford Edge coil pack. The 2.7L V6 is more difficult, as accessing the rear coils requires removing the intake manifold.
What tools do I need for the job?
For a 2.0L engine, you'll likely only need a ratchet with an 8mm socket and maybe an extension. It's also a good idea to have a small amount of dielectric grease to apply to the inside of the new coil boot to protect against moisture.
What are the common check engine light codes for a bad coil?
A general misfire code is P0300. A specific cylinder misfire will have a code from P0301 to P0306, where the last digit indicates the cylinder number (e.g., P0301 for cylinder 1, P0302 for cylinder 2). You may also see a code like P0351, which points directly to a fault in the ignition coil circuit for cylinder 1.
🎬 Watch this guide if new coils don't fix your misfire.Helpful Videos
Technical Specifications
OEM Part Numbers: JX6Z-12029-A JX6Z-12029-B PB5Z-12029-A
This is a coil-on-plug (COP) ignition system. The 2.0L 4-cylinder engine uses four coils, while the 2.7L V6 engine uses six coils.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
