Ram 1500 Suspension Stabilizer Bar Bushing Replacement Guide (2020-2024)
Hearing a clunking or rattling from your front end? Your stabilizer bar bushings might be the problem.
- A clunking noise from the front end at low speeds is the number one symptom of bad stabilizer bar bushings on a 2020-2024 Ram 1500.
- Replacement is a simple DIY job that can be done in about an hour with basic tools.
- You must measure your stabilizer bar's diameter to ensure you buy the correct size bushings; 36mm is a common size for this generation.
- Aftermarket brands like Moog and Mevotech are popular, affordable, and reliable alternatives to OEM Mopar parts.
Symptoms of Bad Stabilizer Bushings on a Ram 1500
The most common sign of worn stabilizer bar bushings on the 2020-2024 Ram 1500 is noise. Many owners report hearing a distinct clunking, rattling, or knocking sound from the front of the truck. This noise is most obvious at lower speeds when driving over bumps, uneven roads, or turning into a driveway. The sound happens because the worn rubber allows the heavy metal stabilizer bar to move and knock against the frame. Some owners notice this issue starting around 60,000 miles.
Other symptoms include:
- Increased Body Roll: The truck may feel like it's leaning or swaying more than usual during turns.
- Loose or Vague Steering: The steering might feel less responsive or disconnected from the road.
- Visible Wear: If you look at the bushings, you might see cracks, hardening, or a visible gap between the bushing and the stabilizer bar.
Known Issues and TSBs
While there are no specific recalls for the stabilizer bar bushings on the 2020-2024 Ram 1500, there are related Technical Service Bulletins (TSBs). TSB 02-001-25 addresses a clunking noise caused by a loose stabilizer link nut, not the bushing itself. However, many owners of this generation have reported that the original factory rubber bushings can wear out prematurely.
Choosing an Aftermarket Stabilizer Bushing Kit
When replacing your bushings, you'll find options from OEM (Mopar) and aftermarket brands like Mevotech and Moog. Aftermarket parts are often a good value and can sometimes offer improvements over the original design.
OEM (Mopar): Original parts are a guaranteed fit but are often made of the same standard rubber that wore out. They are a reliable choice if you were happy with the original performance and lifespan.
Aftermarket (Mevotech & Moog): Both Mevotech and Moog are well-known aftermarket brands. Forum discussions show that owners have used both with success. Sometimes, these brands offer "problem solver" designs that may be beefier or use different materials than the original. For example, some aftermarket kits use polyurethane instead of rubber, which can be more durable but might create a slightly stiffer ride. When choosing, the most critical factor is ensuring you get the correct size for your truck's specific stabilizer bar diameter.
Pro Tip: Measure Your Bar
Ram 1500s can have different stabilizer bar diameters depending on the specific model and options. The only way to be certain you're ordering the correct bushings is to measure the diameter of your bar with a caliper or an adjustable wrench and ruler. A common size for the 5th generation Ram is 36mm.
🎬 Watch a step-by-step guide on replacing front sway bar bushings.Cost to Replace Stabilizer Bar Bushings
| Part Type | Estimated Cost |
|---|---|
| New OEM (Mopar) Bushing Kit | $20 - $45 |
| New Aftermarket Bushing Kit (Mevotech, Moog) | $14.84 - $28.00 |
| Shop Labor | $70 - $150 |
| Total Professional Replacement | $107 - $148+ |
Frequently Asked Questions (FAQ)
Do I need to replace bushings in pairs?
Yes, it is highly recommended to replace the stabilizer bar bushings in pairs (both sides of the truck at the same time). This ensures even performance and wear.
Is it hard to replace Ram 1500 stabilizer bushings?
No, this is a straightforward job that is very feasible for a DIY mechanic. It typically involves removing two bolts on each bracket, swapping the old bushing for the new one, and re-torquing the bolts. The most common difficulty is dealing with rusted bolts, so using penetrating oil is a good idea.
🎬 See how to swap bushings on a 2020 Ram 1500 4x4.Do I need a wheel alignment after replacing the bushings?
No, a wheel alignment is generally not necessary after replacing only the stabilizer bar bushings. These parts do not affect the vehicle's primary alignment angles.
Should I replace the sway bar end links at the same time?
It's a good idea to inspect the sway bar end links while you're replacing the bushings. The end links are another common source of front-end clunking. If you are already working in that area and the end links show any signs of wear or play, replacing them at the same time is efficient and can prevent future noise.
Helpful Videos
Technical Specifications

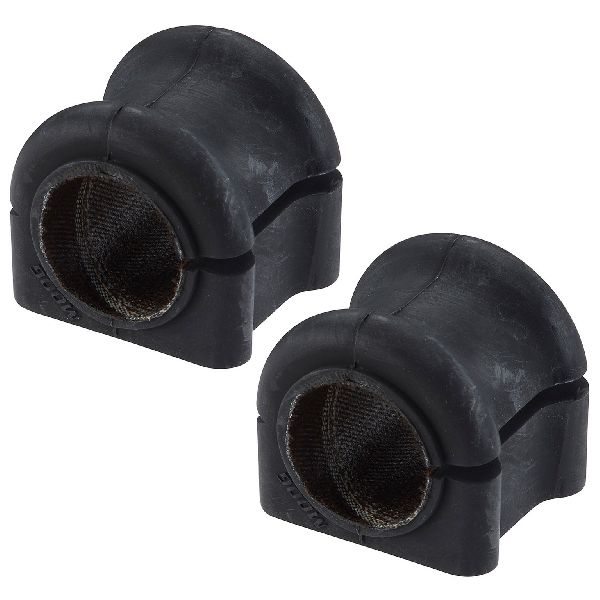

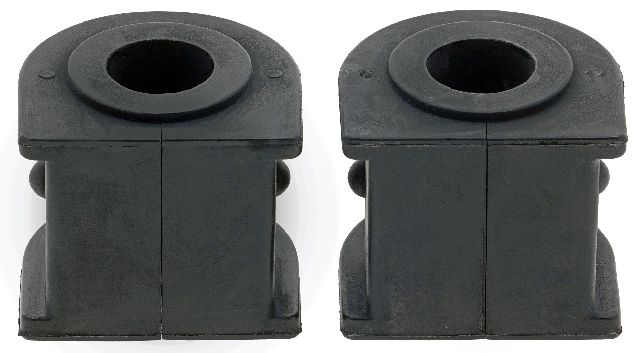

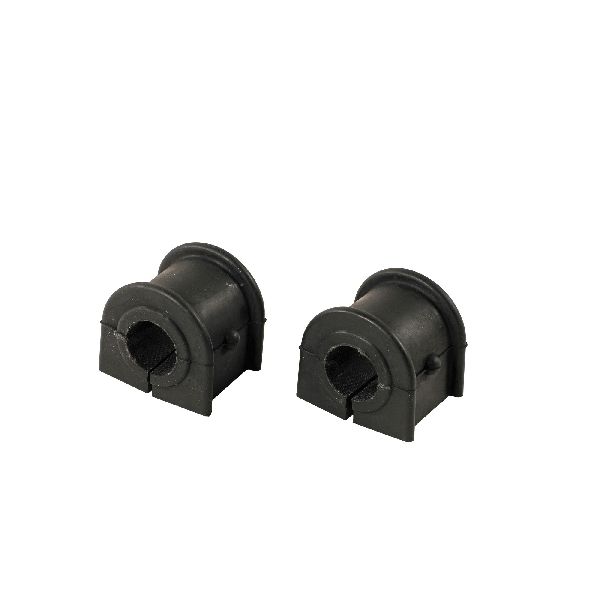

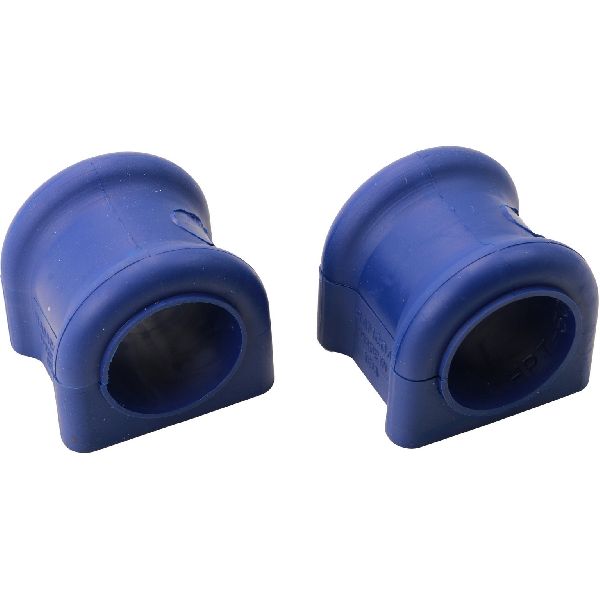

OEM Part Numbers: 68264639AC 68362113AA
Common stabilizer bar diameter: 36mm. Bushings are typically made of rubber or polyurethane and come in a split design for easier installation.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
