A Guide to Spark Plugs for the 2020-2025 Chrysler Pacifica
Everything you need to know about replacing the spark plugs on your 3.6L gas or hybrid Pacifica.
- The recommended spark plug replacement interval for the 2020-2025 Chrysler Pacifica is 100,000 miles.
- A known TSB (09-013-20) exists for 2020 models for cracked spark plugs causing misfires.
- Replacing the rear three spark plugs requires removing the upper intake manifold, making it a moderately difficult job.
- Premium aftermarket brands like NGK and Denso are excellent alternatives to the OEM Champion plugs.
Understanding Spark Plug Failure in Your Pacifica
Spark plugs don't last forever. The electrodes that create the spark wear down over time. Chrysler recommends replacing the spark plugs in the Pacifica every 100,000 miles under normal driving conditions. However, issues can sometimes arise sooner. A Technical Service Bulletin (TSB 09-013-20) was issued for some 2020 Pacifica models with the 3.6L engine due to spark plugs that could develop internal cracks. This could cause the Malfunction Indicator Lamp (Check Engine Light) to come on and the engine to run rough. If you notice a decrease in gas mileage, a rough idle, or your check engine light is on, it might be time to inspect your spark plugs.
Choosing the Right Aftermarket Spark Plugs
When it's time for a replacement, you have a choice between OEM (Original Equipment Manufacturer) Mopar plugs and a wide variety of aftermarket options. The original plugs are typically made by Champion. While OEM is always a safe bet, high-quality aftermarket brands like NGK and Denso often meet or exceed OEM specifications and are preferred by many mechanics.
Aftermarket Brand Tiers
| Tier | Brands | Description |
|---|---|---|
| Premium | NGK, Denso | Often considered the top tier. These brands use high-quality materials like iridium and platinum for long life and consistent performance. They are a popular upgrade from the stock Champion plugs. |
| OEM Equivalent / Standard | Champion, Bosch | Champion is the original equipment provider for many Pacificas. Bosch offers reliable double iridium plugs that are a solid choice for OE-level performance. These brands provide good quality and durability. |
| Economy | Autolite, Skyward | These brands offer a more budget-friendly option. While they may not have the longevity of premium iridium plugs, they are a functional replacement for getting your vehicle back on the road. |
Pro Tip: Always use iridium or double platinum plugs for the 3.6L Pentastar engine. These materials provide the best performance and longevity, matching the 100,000-mile replacement interval recommended by Chrysler. Also, check the spark plug gap before installation, even if the plugs are advertised as "pre-gapped." The correct gap for most Pacifica models is around 0.043 inches.
Known Issues, Recalls, and TSBs
While there are no specific recalls for spark plugs on the 2020-2025 Pacifica, a notable Technical Service Bulletin exists.
TSB 09-013-20: This bulletin addresses potential internal cracks in the spark plugs of some 2020 Pacificas with the 3.6L engine. Symptoms include a rough running engine and a check engine light with misfire codes (P0301-P0306). The solution is to replace all six spark plugs.
Hybrid Recalls: Several recalls exist for the Pacifica Hybrid models related to the high-voltage battery pack, which could pose a fire risk. These recalls do not involve the spark plugs directly, but are important for hybrid owners to be aware of. Check NHTSA.gov for details.
Frequently Asked Questions (FAQ)
How often should I replace the spark plugs on my Chrysler Pacifica?
The recommended replacement interval is every 100,000 miles for both the gas and hybrid 3.6L engines. However, if you experience symptoms like rough idling or a check engine light, you may need to replace them sooner.
Is it difficult to replace the spark plugs myself?
For a DIY mechanic, it's a moderately difficult job. The front three spark plugs are easy to access, but the rear three are located under the upper intake manifold, which must be removed. This adds time and complexity to the job. If you are not comfortable with this, it's best to have a professional mechanic do the work.
What is the difference between iridium and platinum spark plugs?
Iridium and platinum are precious metals used on the spark plug's electrodes to increase durability and performance. Iridium is harder and has a higher melting point than platinum, which generally allows for a longer service life and a more consistent spark. Both are excellent choices for the Pacifica and are far superior to standard copper plugs.
Do I need to apply anti-seize or dielectric grease?
Yes. It is highly recommended to apply a small amount of dielectric grease to the inside of the ignition coil boot to prevent it from sticking to the spark plug and to ensure a good electrical connection. Many modern spark plugs have nickel-plated threads and do not require anti-seize, but it's a good practice to use a small amount to prevent corrosion and ensure easy removal in the future.

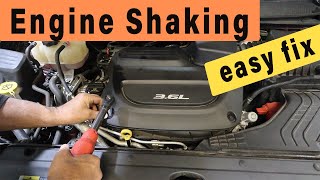

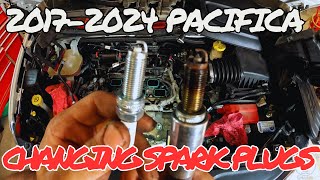

Helpful Videos
Technical Specifications
OEM Part Numbers: RER8ZWYPB4 (Champion 9417)
Engine: 3.6L Pentastar V6 (Gas & Hybrid). Plug Type: Iridium/Platinum. Spark Plug Gap: 0.040" - 0.043". Torque Spec: 13 ft-lbs.
