Ram 1500 (2020-2025) HVAC Blower Motor Failure Symptoms & Replacement
Is the climate control fan in your Ram 1500 weak, noisy, or dead? Here’s what you need to know before replacing the blower motor.
- Replacement is very easy and takes less than 30 minutes, making it a great DIY job.
- If the fan only works on high, the problem is the blower motor resistor, but you should replace both parts together.
- Intermittent fan operation is often caused by a loose fuse, not a bad motor. Check the fuse connection under the hood first.
- Verify if your truck has manual or automatic climate control before ordering, as the parts are different.
Is Your Ram 1500 Blower Motor Failing?
A failing HVAC blower motor in a 2020-2025 Ram 1500 usually gives you some warning. The first signs are often subtle, but they will get worse over time. Because this part is essential for both comfort and safety (especially for defrosting the windshield), it’s important to address the issue when symptoms first appear.
Common Failure Symptoms
Here are the most common signs that your blower motor is on its way out:
- Weak Airflow: This is a primary symptom. You may notice that even on the highest setting, the air coming from your vents feels weak. Some Ram owners report that lower fan speeds become useless, while the highest setting feels like it used to on medium.
- Unusual Noises: Squealing, screeching, or a metallic grinding sound that changes with fan speed points to worn-out motor bearings. You might also hear a clicking or rattling noise, which could be debris in the fan cage or the motor itself failing.
- No Airflow at All: The most obvious failure is when no air comes out of the vents at any speed. Before condemning the motor, it's wise to check the fuse first.
- Intermittent Operation: The fan may work one day and not the next, or cut out while you're driving. In many Ram trucks, this is caused by a poor connection at the fuse in the under-hood fuse box, not a faulty motor. Wiggling the fuse can sometimes confirm this issue.
- Burning Smell: A plastic or electrical burning smell from the vents is a serious sign that the motor is overheating and should be inspected immediately.
Fan Only Works on High? It’s Probably Not the Motor.
If your fan only works on the highest speed setting, the problem is almost certainly the blower motor resistor, not the blower motor itself. The highest setting bypasses the resistor and sends full power to the motor. However, a failing blower motor is the number one cause of a burnt-out resistor because it draws too much electricity. For this reason, it is highly recommended to replace the blower motor and resistor at the same time.
🎬 Watch: Tips for replacing both the motor and the resistor.Known Issues for 2020-2025 Ram 1500
While major blower motor failures are not widespread, some issues have been noted for this generation of Ram trucks:
- TSB 24-001-22: This Technical Service Bulletin applies to 2019-2021 Ram trucks. It addresses an issue where the blower motor becomes inoperative when the fan speed is set to high, the defrost is on, and a snow plow is operating. The motor shuts down and may restart after 20 seconds, but will stop working completely after five cycles until the truck is restarted. A dealer software update is required to fix this.
- Weak Factory Airflow: Some owners report that the HVAC airflow feels weak even when the truck is new. This is often considered a characteristic of the system design rather than a part failure.
- Recalls for HVAC Control: NHTSA recalls 21V-871 and 19V-051 were issued for some 2019 and 2022 models due to an incompatible combination of HVAC systems and touchscreens that made the defrost function inoperable. This was not a blower motor failure, but a control issue that required a vehicle buyback from the manufacturer.
Choosing a New Aftermarket Blower Motor
When shopping for a replacement, you'll find OEM (Mopar) and aftermarket options. For a part like the blower motor in a Ram 1500, where replacement is very simple, an aftermarket unit can be a cost-effective choice.
- Four Seasons: This is a well-known aftermarket brand in the climate control space. Quality can be inconsistent according to user reviews; some find them to be a quiet, reliable OE-style replacement, while others report them being noisy out of the box.
- Global Parts (GPD): GPD specializes in climate control components and is generally considered a reputable brand.
Given that the labor to replace this part is minimal, many owners opt for an aftermarket part. If the part fails prematurely, it is not a difficult or expensive job to do a second time. However, for the quietest operation and longest life, a Mopar OEM part is the safest bet.
Check Your Climate Control System First!
Ram 1500s come with different HVAC systems. The basic system has manual knobs for temperature and fan speed. Higher trims have automatic temperature control (ATC) or dual-zone systems. These systems use different blower motors. Ensure the part you order is correct for your truck's specific HVAC system.
Cost to Replace a Ram 1500 Blower Motor
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Blower Motor | $244.61 - $247.37 |
| New OEM (Mopar) Blower Motor | $260 - $370 |
| Shop Labor | $95 - $145 |
Frequently Asked Questions (FAQ)
Is it safe to drive with a failing blower motor?
Yes, but with a major caution. A failed blower motor does not affect the truck's mechanical operation. However, you will have no ability to defrost your windshield, which is a serious safety hazard in cold or humid weather.
Can I replace the blower motor myself?
Yes, this is one of the easiest repairs you can do on your Ram 1500. It is located under the passenger-side dashboard and held in by three screws. The entire job can be done in under 30 minutes with basic hand tools.
🎬 Watch this step-by-step guide to replacing your blower motor.What tools do I need for the replacement?
You will typically only need a ratchet with an 8mm socket or a T20/T25 Torx driver, depending on the screws used on your specific truck. A small flathead screwdriver can help release the electrical connector tab.
My fan works, but the air isn't cold. Is it the blower motor?
No. If the fan is blowing air, the blower motor is working. Lack of cold air is a problem with the air conditioning system itself, such as low refrigerant, a bad compressor, or a blend door issue. Some Ram trucks have also been noted for poor A/C performance in very high heat, which is a separate issue from the blower motor.
Why did my new aftermarket blower motor fail so quickly?
If you replaced the blower motor but not the resistor, the old, failing motor may have already damaged the new one. Another common cause is a poor electrical connection at the fuse box or the motor's wiring harness, which can cause intermittent operation or premature failure.
Helpful Videos
Technical Specifications
OEM Part Numbers: 68395984AD 68048905AB

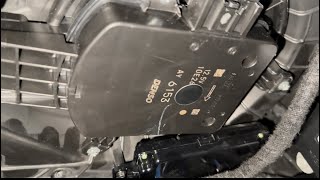

Located under the passenger side dashboard footwell. Typically held in by three 8mm or T20/T25 screws. The electrical connector is a 2-pin or 3-pin plug depending on the HVAC system (manual vs. automatic).
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
