Chevrolet Trailblazer Oxygen Sensor Guide: 2021-2025 Models
Understanding the signs of a failing oxygen sensor in your Trailblazer and how to choose the right replacement.
- Before buying a new sensor, check the wiring harness for melting, as described in GM TSB #24-NA-030.
- A check engine light with codes like P0171 or P0131 is the primary indicator of a potential O2 sensor issue.
- Always use a 'direct-fit' sensor from a quality brand like NGK or Walker to avoid compatibility problems.
- Ignoring a failing O2 sensor can lead to reduced fuel economy and expensive damage to your catalytic converter.
Symptoms of a Failing Oxygen Sensor
When an oxygen sensor starts to fail, your Trailblazer's computer may not be able to properly balance the air-fuel mixture. This can lead to noticeable issues. Ignoring these symptoms for too long can lead to more expensive repairs, including damage to the catalytic converter.
Known Issue for 2021-2025 Trailblazer: Melted Wiring
General Motors has issued a Technical Service Bulletin (TSB #24-NA-030) for a potential issue on these vehicles. The wiring harness for the upstream oxygen sensor (Bank 1, Sensor 1) can be misrouted from the factory, causing it to touch the hot exhaust pipe. This can melt the wiring, leading to a check engine light and various trouble codes like P0171 (System Too Lean), P0172 (System Too Rich), P0135 (Heater Performance), and even P0300 (Engine Misfire). Before replacing a sensor, it is critical to inspect the wiring harness for any signs of melting or damage, as this could be the actual source of the problem.
🎬 See how to fix a shorted sensor without replacing itChoosing the Right Aftermarket Oxygen Sensor
When replacing an O2 sensor on your Trailblazer, it is important to choose a "direct-fit" model. These sensors come with the correct wiring connector for your vehicle, requiring no cutting or splicing. Universal sensors, which require splicing wires, can cause incorrect voltage signals and lead to the check engine light returning.
Brand Quality Tiers
- OEM (ACDelco): These are the parts your vehicle was built with. They guarantee perfect fit and function but come at the highest cost. For modern, sensitive GM electronics, OEM is always a reliable choice.
- OEM-Equivalent (NGK): NGK (also sold as NTK) is a major manufacturer that often supplies the original parts to carmakers. Their aftermarket sensors are engineered to meet or exceed original specifications and are considered a top-tier replacement option, offering OEM quality without the dealership price tag.

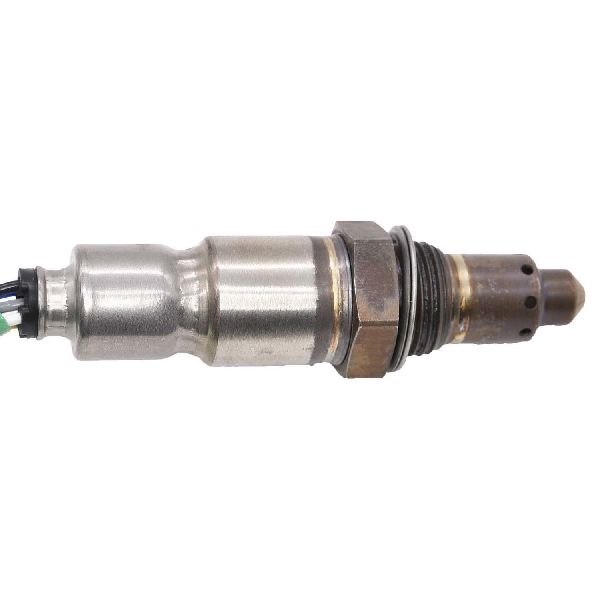

- Quality Aftermarket (Walker Products): Walker is a well-established aftermarket brand that produces reliable, direct-fit sensors. They offer a good balance of quality and value for owners looking for a dependable part without the OEM or OEM-supplier cost.
Estimated Replacement Costs
| Part Type | Estimated Part Cost |
|---|---|
| New OEM (ACDelco) | $45 - $120 |
| New Aftermarket (NGK, Walker) | $72 - $152 |
| Shop Labor | $50 - $100 |
| Total Professional Replacement | $122 - $252 |

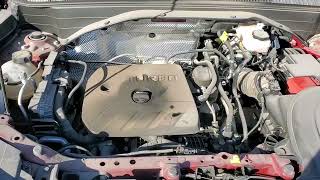

Pro Tip: The oxygen sensors on the 2021-2025 Trailblazer are generally easy to access. The upstream sensor is on the exhaust manifold or right after the turbo, 🎬 Watch: How to locate the upstream oxygen sensor and the downstream sensor is further down the exhaust pipe. With a special O2 sensor socket, this is a feasible DIY job for those with some mechanical experience, which can save you on labor costs.
Frequently Asked Questions
How many oxygen sensors does the 2021-2025 Trailblazer have?
Your Trailblazer has two oxygen sensors: one upstream (before the catalytic converter) and one downstream (after the catalytic converter). They are often referred to as Bank 1 Sensor 1 (upstream) and Bank 1 Sensor 2 (downstream).
🎬 Watch this step-by-step guide for replacing the downstream sensorWhat does "Bank 1" mean?
Since the Trailblazer uses an inline 3-cylinder engine, it only has one bank of cylinders, which is always referred to as "Bank 1". On V6 or V8 engines, there would be a Bank 1 and a Bank 2, one for each side of the engine.
If one sensor fails, should I replace both?
It is not required, but it is often recommended. Oxygen sensors wear out over time, so if one has failed due to age (typically over 70,000 miles), the other may not be far behind. Replacing them at the same time can save you from a repeat repair in the near future.
What tools do I need to replace an oxygen sensor?
You will need a specific tool called an oxygen sensor socket, which is designed with a slit on the side to fit over the sensor's wire. You will also need a ratchet. Sometimes, applying a penetrating fluid like PB Blaster can help loosen a sensor that is stuck in the exhaust pipe.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12695629 55506886 12681390 25203197
Your Trailblazer uses heated, 4-wire oxygen sensors. The upstream sensor is a wide-band type for precise fuel control, while the downstream is a narrow-band switching type.
