Cadillac CT4 (2022-2024) Engine Camshaft Position Sensor: A Complete Guide
Experiencing starting issues or a rough idle in your CT4? Your camshaft position sensor might be the culprit.
- A bad camshaft sensor will cause a Check Engine Light with codes P0340 or P0341, hard starting, rough idle, and power loss.
- The repair is DIY-friendly, but choose a high-quality aftermarket brand like NGK or Standard Ignition for reliability.
- There are no direct recalls, but a TSB exists for the 2.7L engine regarding related camshaft components in cold weather.
- Driving with a failed sensor is not recommended as the vehicle may stall or fail to restart.
Is Your Cadillac CT4's Camshaft Position Sensor Failing?
The camshaft position sensor in your 2022-2024 Cadillac CT4 is essential for engine health. It works with the crankshaft sensor to make sure your engine runs smoothly. When it starts to fail, your car's computer gets confusing information, which can cause noticeable problems. Ignoring these signs can lead to poor performance, bad fuel economy, and potentially leave you stranded.
Common Symptoms of a Bad Camshaft Position Sensor
A failing camshaft position sensor will almost always trigger the Check Engine Light. If you have an OBD-II scanner, you might see codes like P0340 or P0341. Beyond the light, you might experience:
- Hard Starting or No Start: The engine cranks but struggles to fire up, or won't start at all.
- Rough Idling and Stalling: The car may shake at a stop or shut off unexpectedly.
- Loss of Power: Your CT4 may feel sluggish and hesitate during acceleration.
- Reduced Fuel Economy: If the engine timing is off, it will burn more fuel than necessary.
Known Issues for 2.7L Engines
While there are no direct recalls for this sensor, GM issued a Technical Service Bulletin (TSB #PIP5843A) for 2020-2022 CT4 models with the 2.7L L3B engine. This TSB addresses issues where the intake camshaft's sliding lobe pack could bind in cold weather, potentially causing related diagnostic codes and requiring camshaft actuator or camshaft replacement. If you have a 2.7L engine and experience these symptoms, especially in the cold 🎬 Watch: Common symptoms of a bad camshaft position sensor, it's worth noting this TSB.
Choosing the Right Aftermarket Sensor
When it comes to critical engine sensors, quality matters. While the OEM ACDelco part is always a safe choice, high-quality aftermarket brands can offer the same performance for a better price. For your CT4, it's best to avoid the cheapest options, as they are known to fail prematurely.
Here's a breakdown of the available brands:
- Tier 1 (High Quality): NGK and Standard Ignition (SMP) are widely regarded as producing OEM-quality sensors. They have a strong reputation for reliability and are often the manufacturer for the original factory parts. These are a solid choice for a dependable repair.
- Tier 2 (Good Quality): Walker Products presents itself as a manufacturer of precision-engineered sensors that meet or exceed OEM standards. They are a well-known aftermarket brand and a viable option.
- Tier 3 (Economy): Brands like Holstein and True Tech fall into the economy category. While the price is attractive, there is less data on their long-term reliability. Some forum users have reported issues with lower-tier sensor brands on other vehicles, leading to repeat repairs. These are best considered if budget is the absolute primary concern and you are prepared for the potential risk.
Pro Tip: For a critical sensor like this, spending a few extra dollars on a Tier 1 brand like NGK or Standard Ignition can save you the headache of replacing it again in the near future.
Cost of Replacing a Cadillac CT4 Camshaft Position Sensor
The replacement cost is relatively low for this part. The main cost difference is between the part itself and whether you have it professionally installed.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Part | $24.60 - $35.69 |
| Shop Labor | $60 - $120 |
| Total Estimated Cost (DIY) | $24.60 - $35.69 |
| Total Estimated Cost (Installed) | $84.60 - $155.69 |
Frequently Asked Questions
Where is the camshaft position sensor located on the Cadillac CT4?
The camshaft position sensor is typically located on the engine's cylinder head or valve cover, near the top of the engine. The CT4's 2.0L and 2.7L engines have dual overhead cams (DOHC), so there may be multiple sensors (e.g., one for the intake cam and one for the exhaust cam). Always verify the correct sensor location for your specific engine before starting work.
Can I replace the camshaft position sensor myself?
Yes, this is a DIY-friendly repair for many people. The process usually involves disconnecting the battery, unplugging the electrical connector, and removing a single bolt holding the sensor in place. 🎬 Follow this easy 7-step guide to replace your sensor However, some vehicles may require a computer "relearn" procedure after the new sensor is installed, which might require a specialized scan tool.
What are the error codes for a bad camshaft position sensor?
The most common codes are P0340 (Camshaft Position Sensor 'A' Circuit Malfunction) and P0341 (Camshaft Position Sensor 'A' Circuit Range/Performance). Code P0340 indicates a problem with the sensor's circuit, while P0341 suggests the signal is out of the expected range or not properly timed with the crankshaft.
🎬 See this breakdown of common causes for P0340 codesAre there any recalls for the CT4 camshaft position sensor?
No, as of late 2023, there are no specific recalls for the engine camshaft position sensor on the 2022-2024 Cadillac CT4. Always check the latest NHTSA data for your specific VIN for the most up-to-date information.
Helpful Videos
Technical Specifications

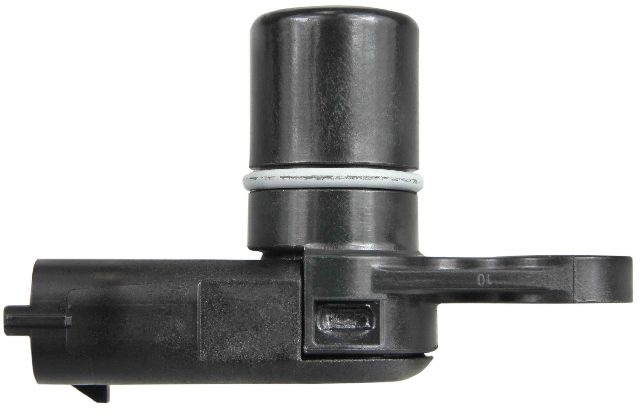

OEM Part Numbers: 12733487 12684186 12698173
This is a Hall-effect sensor that reads the position of the camshaft. The 2.0L (LSY) and 2.7L (L3B) engines are DOHC (Dual Overhead Cam) and may use multiple sensors.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
