2016-2019 Buick Cascada Quarter Glass: Leaks, Regulators, and Replacement Guide

Understanding the Cascada's Rear Quarter Glass System

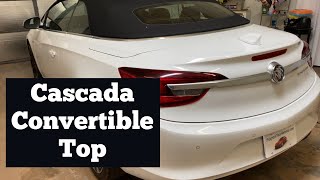

The rear quarter glass on the 2016-2019 Buick Cascada is an active component, not a simple, fixed piece of glass. It's mounted to a full window regulator assembly, complete with an electric motor and wiring, that allows it to move up and down. This movement is synchronized with the convertible top's operation; 🎬 Watch: How to open and close the convertible top the windows must lower before the top can retract and raise to seal against the top when it's closed. This integration means that a problem with the quarter glass or its regulator can prevent the convertible top from working correctly. Because of this complexity, replacement and adjustment require precision to ensure a proper seal and prevent leaks or wind noise.

Common Failure Symptoms

Failures can originate from the glass itself, the mechanical regulator, or the electrical components. Here are the most common symptoms to watch for:

• Physical Damage: The most obvious failure is cracked, chipped, or shattered glass from impacts or stress. Unlike a laminated windshield, this is tempered glass, which shatters into small pieces and cannot be repaired.
• Grinding or Clicking Noises: Sounds coming from inside the quarter panel when operating the window usually point to a failing regulator. This is often caused by a frayed cable or broken plastic guides within the mechanism.
• Slow or Stuck Window: If the quarter glass moves slowly, gets stuck, or won't move at all, the issue is likely the window motor or a jammed regulator. If you hear the motor whirring but the glass doesn't move, the cable has likely snapped.
• Water Leaks or Wind Noise: A poor seal around the quarter glass will allow water and wind to enter the cabin. This can be caused by improper glass alignment or worn-out weatherstripping.
• Water Sloshing in Quarter Panel: A known issue for the Cascada is a clogged rear quarter drain hose. This can cause water to build up inside the quarter panel, leading to a sloshing sound when driving and potential water ingress into the rear footwell.

Buying a Used 2016-2019 Cascada Quarter Glass: A Checklist

A used OEM quarter glass can be a cost-effective solution, but careful inspection is crucial. Because this part is shared with the Opel, Vauxhall, and Holden Cascada models, you may find parts listed under those names. Always verify the part number for a perfect match.

• Inspect the Glass Thoroughly: Check for any scratches, chips, or delamination. Run your fingers along all edges to feel for nicks that could turn into cracks later.
• Verify Tint and Moldings: Ensure the factory tint matches your vehicle's other windows. Check that any attached chrome or black molding is present, secure, and in good condition.
• Check Attached Hardware: The glass is often sold attached to the regulator. If possible, inspect the regulator's cables and plastic guides for any signs of fraying or damage. A complete, known-good regulator and motor assembly can save significant time and money.
• Confirm Part Numbers: The safest way to ensure compatibility is to match the OEM part number. Known part numbers include 13366910 (Buick/GM) and 5161632 (Opel). Be aware that left (driver side) and right (passenger side) parts are different and not interchangeable.
• Why Used OEM is a Good Choice: For a part like this, where fit and finish are critical for sealing a convertible top, a used OEM part often provides better fitment and matches the original tint and quality more accurately than a new aftermarket part.

Recalls and Technical Service Bulletins (TSBs)

• NHTSA Recall 16V-844000: This recall affected a very small number of 2016 Cascada vehicles where an incorrect European-spec Convertible Roof Control Module (CRCM) was installed during service. This module allowed window operation that did not meet US safety standards. The solution was to replace the CRCM with the correct part.
• TSB 17-NA-149: Addresses water sloshing sounds from the quarter panel area due to a blocked drain hose, which can lead to water on the rear floor.
• TSB 17-NA-216: Pertains to the main convertible top's rear glass window separating from the fabric top material, which is a separate issue from the side quarter glass.

Replacement Cost Comparison

Prices can vary based on your location and whether you are purchasing just the glass or the complete glass and regulator assembly. Professional installation is highly recommended due to the need for precise alignment and potential electronic programming.

Installation Guide: Is This a DIY Job?

Difficulty: 4/5

Replacing the Cascada's quarter glass is a complex job not recommended for beginners. While accessing the regulator motor may be possible through an inspection panel, replacing the entire assembly often requires removing the rear seat and interior quarter trim panels. The most critical part of the job is the adjustment and alignment of the new glass. There are specific measurements for the gap and height difference between the front door window and the rear quarter window to ensure a proper seal. Failure to align it correctly will result in leaks, wind noise, or interference with the convertible top. 🎬 See this video on adjusting the side windows After replacement, a window re-learn or programming procedure may be necessary for the auto up/down and convertible top functions to work correctly. Given the precision required, professional installation is the best choice for most owners.
